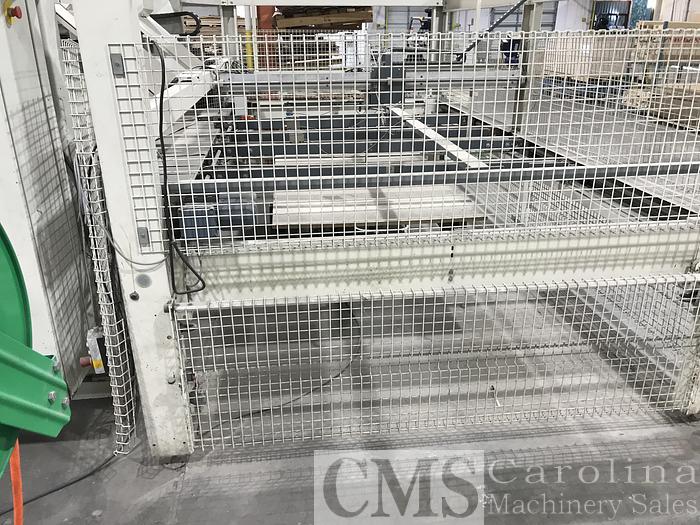

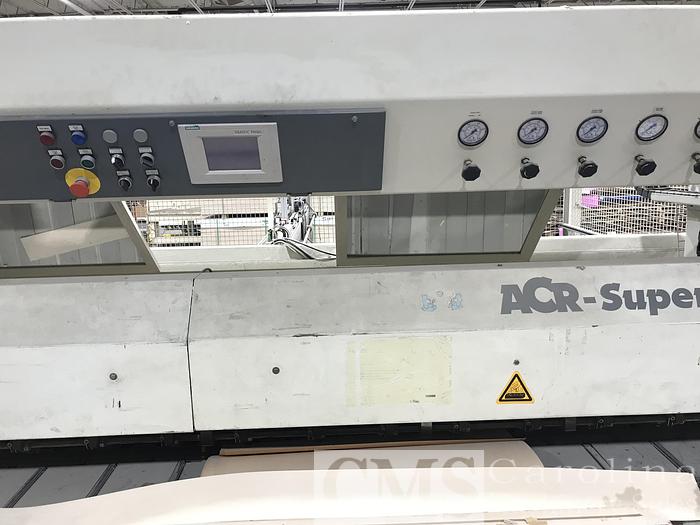

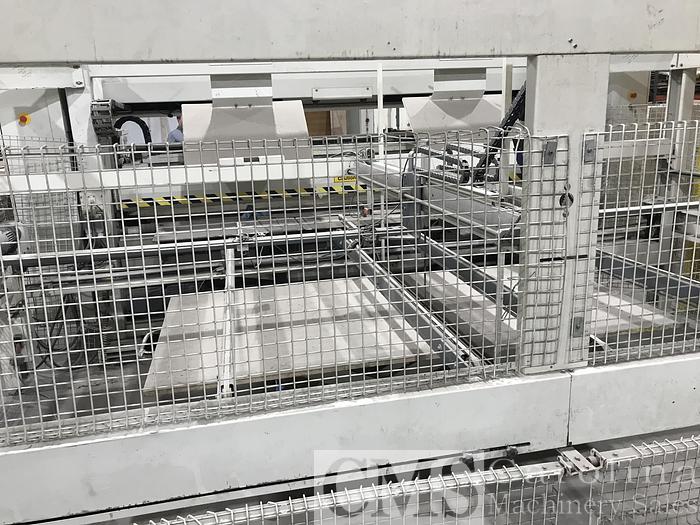

Kuper ACR Superquick 3200 Cross Feed Splicer

Max. operating width in grain direction

approx. 3200 mm

Min. operating width in grain direction

approx. 600 mm

Width of the veneer strips across the grain from

approx. 60 mm

Veneer thickness

approx. 0.3 – 2.5 mm

Capacity up to 28 joints/min.

Feed speed approx. 30 m/min.

Operating voltage 480 V, 3 Ph, 60 cycles
