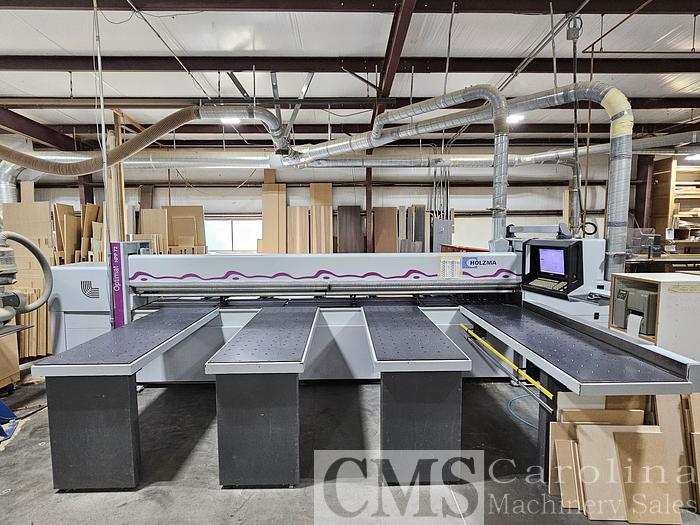

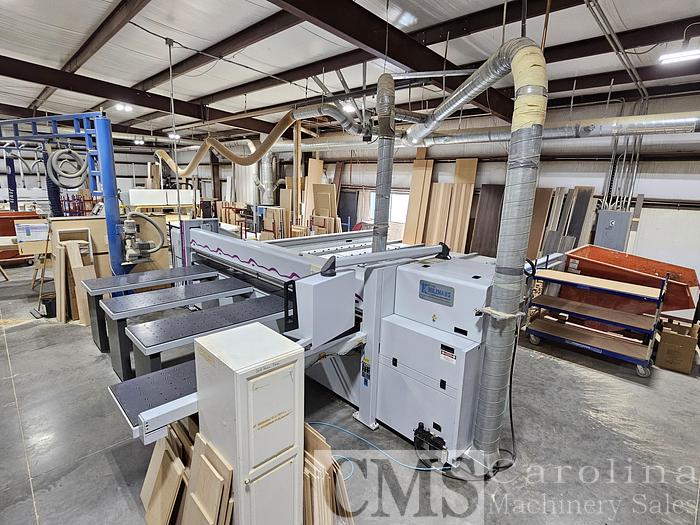

2002 Holzma HPP 72/43 Front Loading Panelsaw

Location

Central

Specifications

ManufacturerHolzma
ModelHPP 72/43 Front Loading Panelsaw
Year2002
Stock Number011821

Description

Specifications: -- 169" (4,300 Mm) Rip Cutting Cap., 3.1" (79 Mm) Max. Saw Blade Projection.

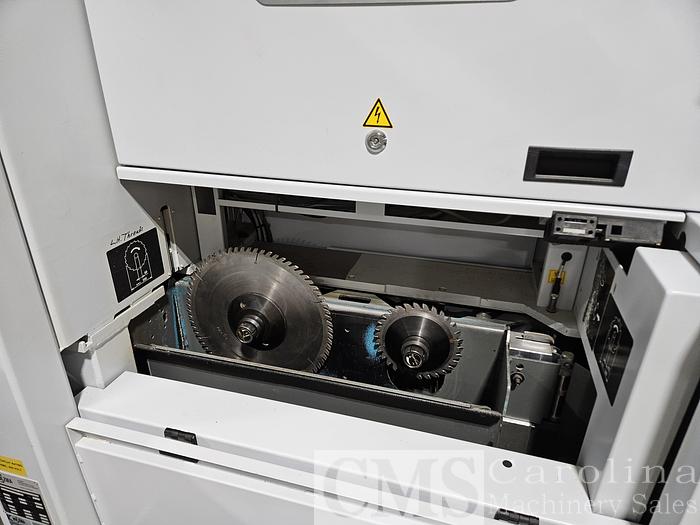

12 HP Main & 2.2 HP Scoring Motor.

Variable Saw Carriage Travel Speed From 0 - 426 FPM (0 - 130 MPM), Constant Return Of 426 FPM (130 MPM).


Electronically Controlled Overhead Program Fence, Rack & Pinion Driven On Both Sides; Forward Speed 264 FPM (80 MPM), Return Speed 264 FPM (80 MPM) Via AC Servo Motor


Equipped With (6) Gripper Clamps Which Open Up To 3.7" (95 Mm).

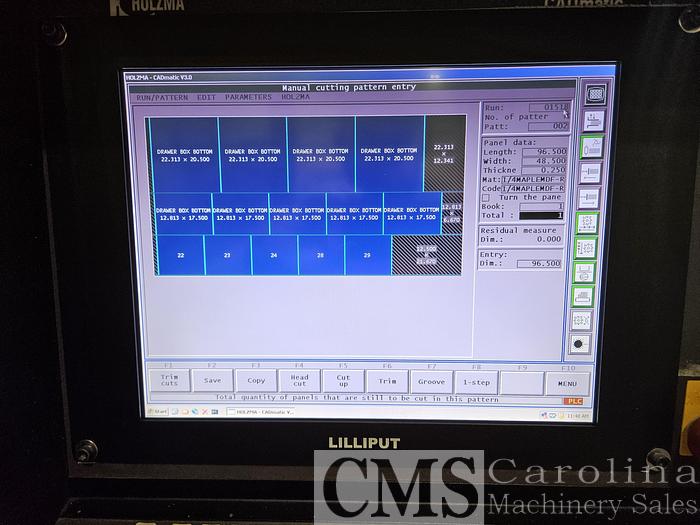

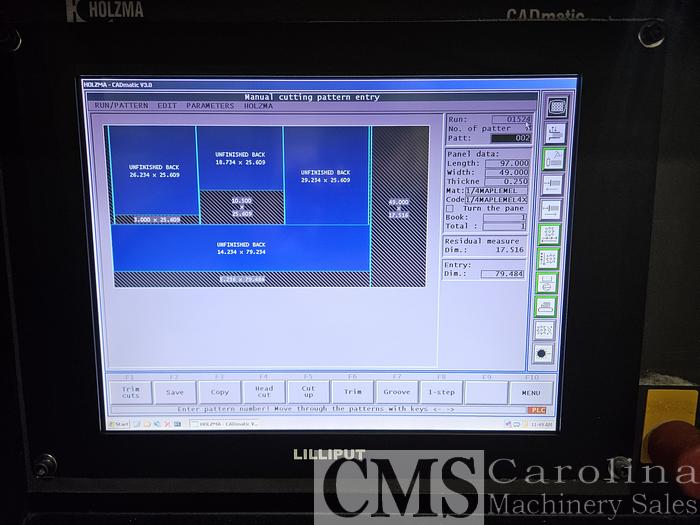

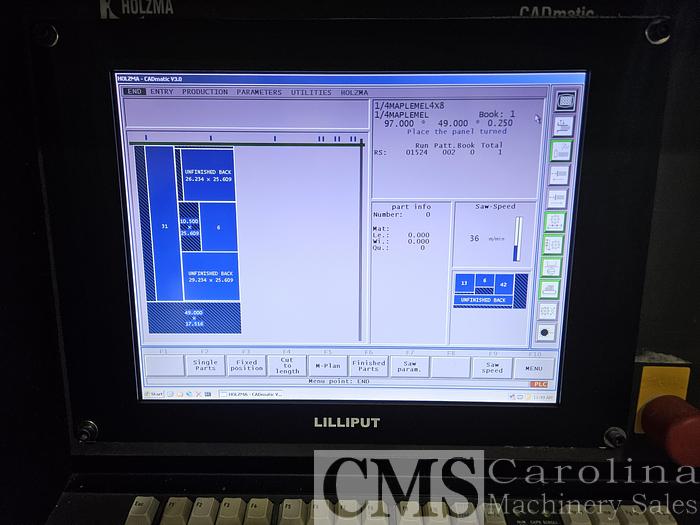

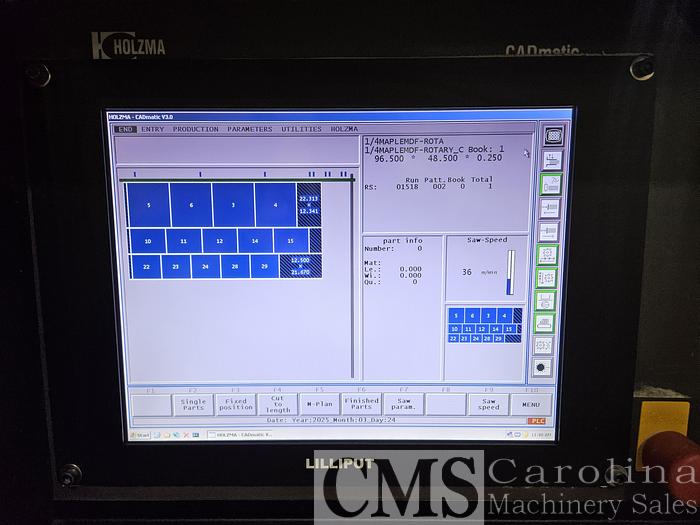

PC Front End With: HOLZMA "CADMATIC" Version 3.0 Operating System.


15" Color Monitor W/Moving Graphics & Numeric Display; Keyboard & Mouse; 1.44MB Disk Drive; Online Operation Via RS-232 Port Linked To Office PC Is Possible.

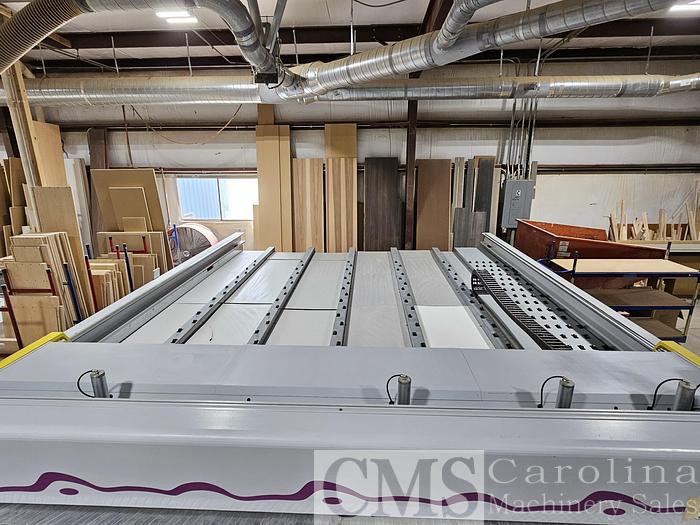

Rear Machine Table With Combi-Roller Profile Rails; Front With (4) Air Floatation Tables; Cross-Cut Fence; Automatic Side Pressure Device For Cross-Cutting 1.96" (50 Mm) Min & 95" 2,413 Mm) Max. Stroke.


- it will be disassembled

- it will be  "crated/skidded" for shipping

- it would be loaded for that price

- it has all new cylinders on the saw carrage

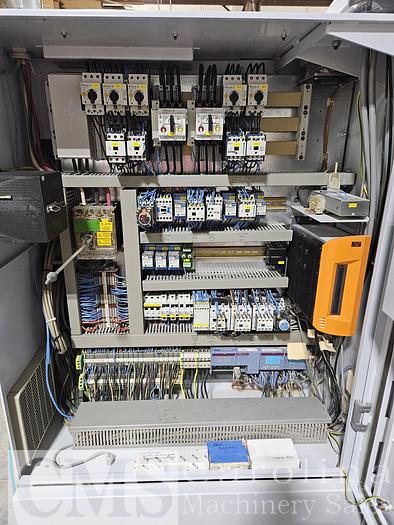

- it has all new main function relays in the electrical cabinet

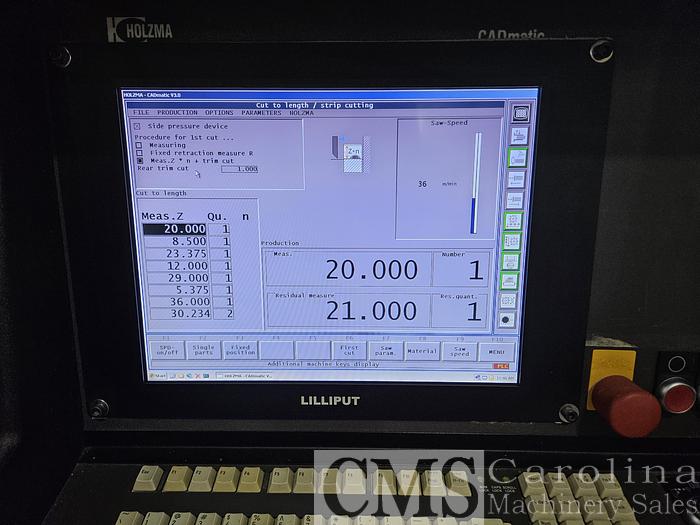

- it has a new touch screen

- comes with label printer

- all air table rollers

- all beam curtains there none broken

- new foam pads on pressure beam

- many new air lines
