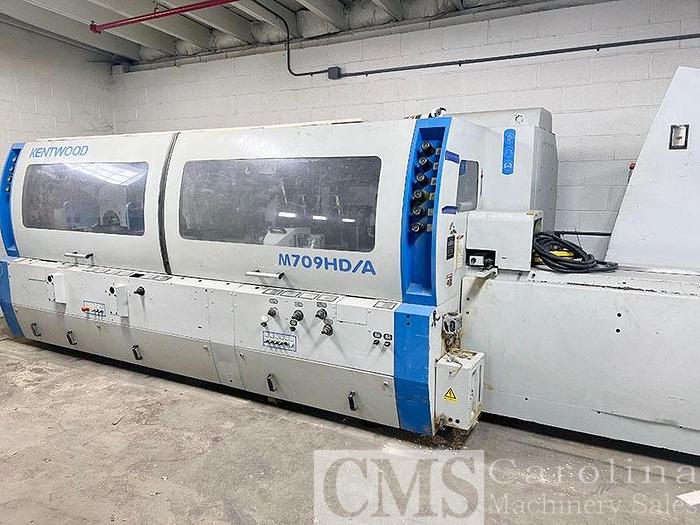

2009 Kentwood M709HD/A Moulder

Kentwood M709HD/A Moulder

133 hp 230V 3ph 60hz 450.24 amps

Max working width 230mm (9")

Max working height 150mm (5.9")

Feed speeds 20 to 118 ft/min

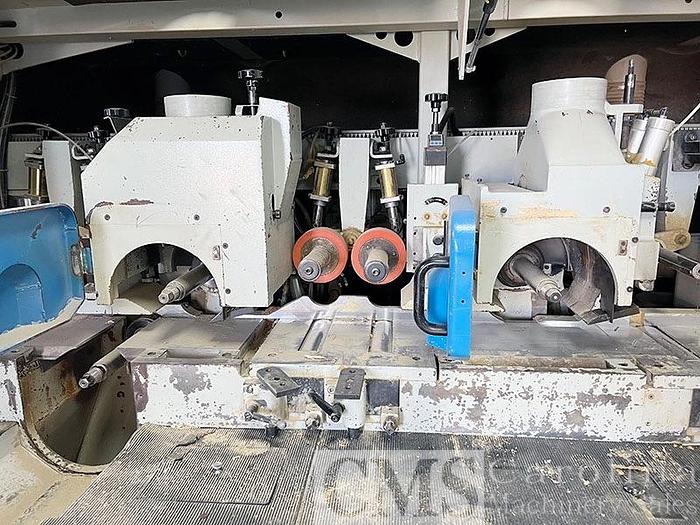

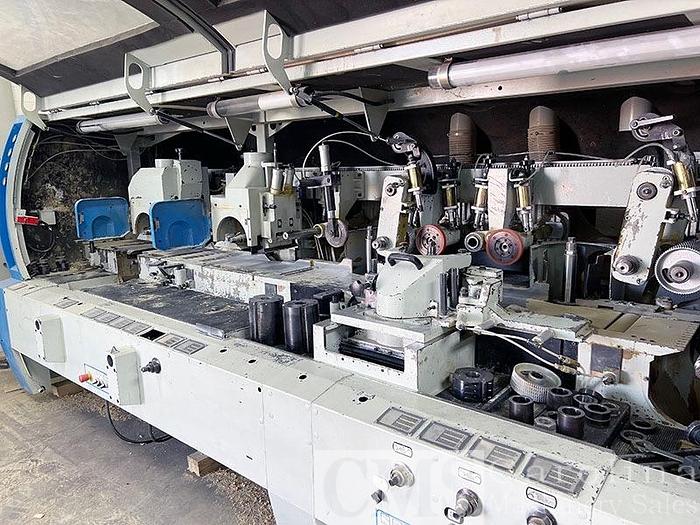

1st head: bottom horizontal spindle, 15 hp

2nd head: right hand vertical spindle, 15 hp

3rd head: left hand vertical spindle, 15 hp

4th head: right hand vertical spindle 15 hp

5th head: top horizontal spindle, 20 hp

6th head: top horizontal spindle, 20 hp

7th head: bottom horizontal spindle, 20 hp

1-13/16" diameter spindles

8000 rpm spindle speed

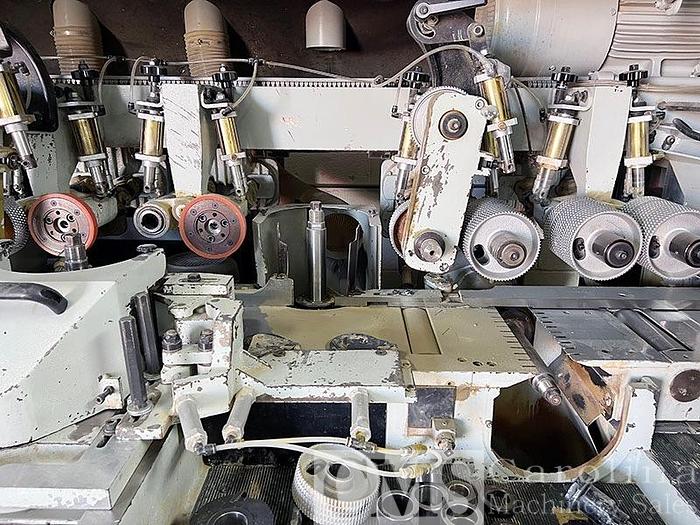

Cardan feed drive system with short stock feed around 2nd and 4th vertical spindles

Pneumatic top spindle chip breakers

Adjustable top pressure shoes with mechanical digital readouts

Electronic spindle brakes

Auto Waxilit table lubrication system

Electronic digital readouts with computer assist for axial adjustments

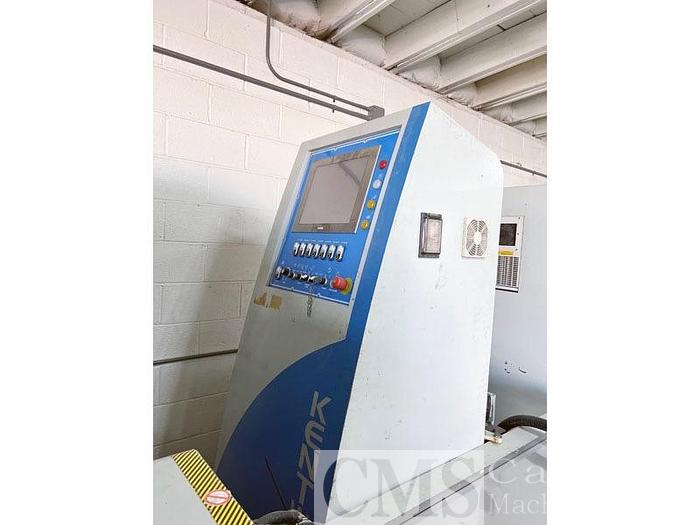

Freestanding operator computer control station cabinet

Push button master motor controls
