2022 Fab Plus Lepus-II/L Flat Table Router with 22' table

GENERAL SPECIFICATIONS

X – Axis: 62.99 inches

Y – Axis: 157.48 inches

Z – Axis (Without Tool): 7.87 inches

Total Power Consumption: 24.0 HP

Max. Rotation Speed: 18,000 RPM

Tool Holder ISO: 30

FEATURES:

Used for v-channel opening, processing and sizing operations of composite panels and plates.

Composite plate fixing and superior processing quality with strong vacuum

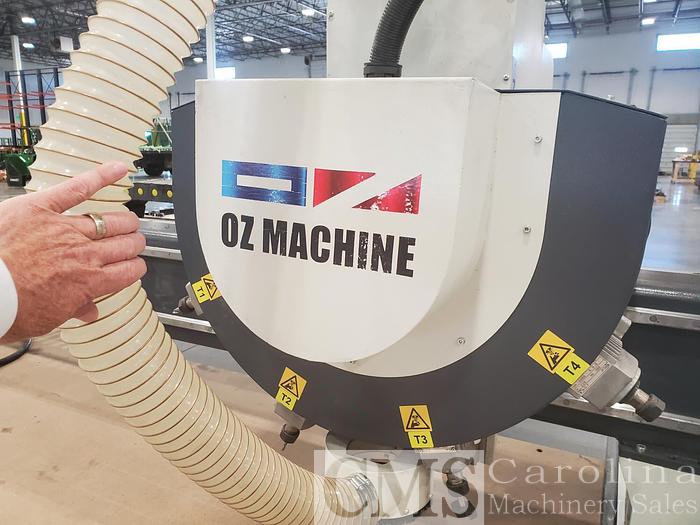

Tool replacement magazine: capacity for 4 independently operating fan cooled spindle motors

Ability to process wooden and plastic plates by replacement of milling cutter

Ideal vacuuming with air channels on polyethylene board

2D CAD CAM graphics and optimization software

Tools replacement in 2.5 seconds

Vacuuming in independent sections

Automatic milling cutter length reset

External dust vacuuming system

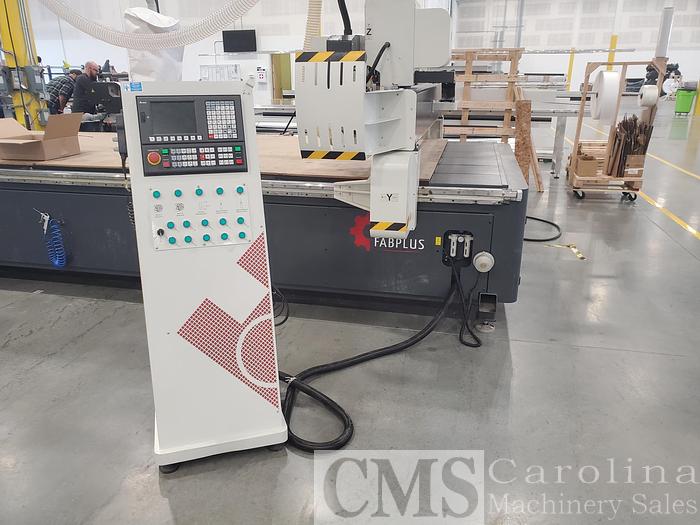

NC-300A – MI CNC Control unit

Automatic, pneumatic alignment system

Data transfer over remote network connection, Ethernet and USB

Remote access

Steel frame with tension resistance, high accuracy processing

Special vacuum circuit designed for local vacuum delivery

Ability to resume operation following problems such as power outage, etc.

Ability to edit loaded code file

Ability to write and process manual code

​

Standard Equipment:

2D CAD CAM

Cutter (2 pcs 0.15 inch cutter, 2 pcs V channel cutter)

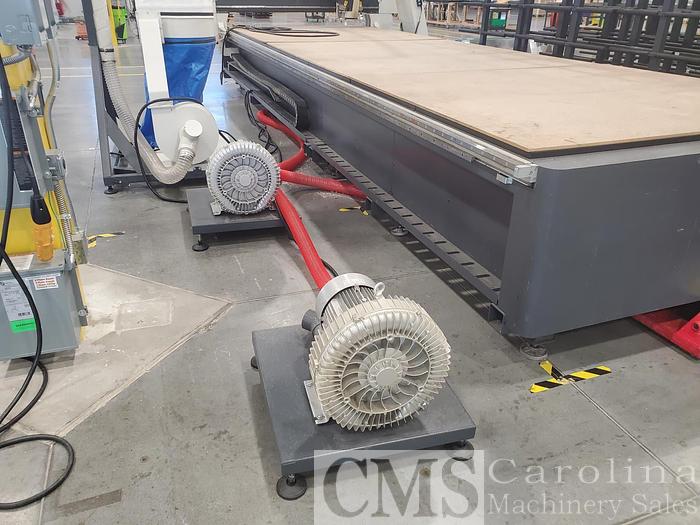

Vacuum pump

Dust vacuuming system
