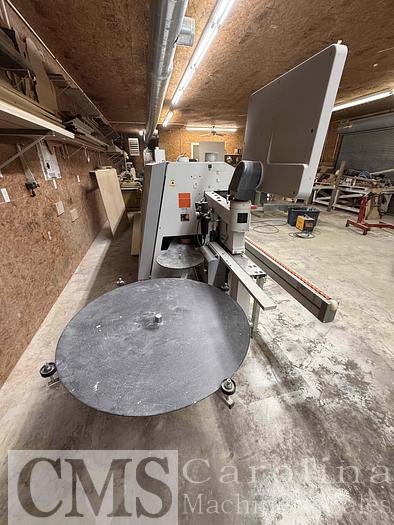

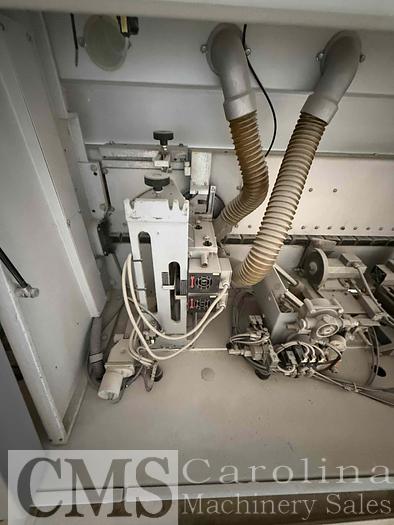

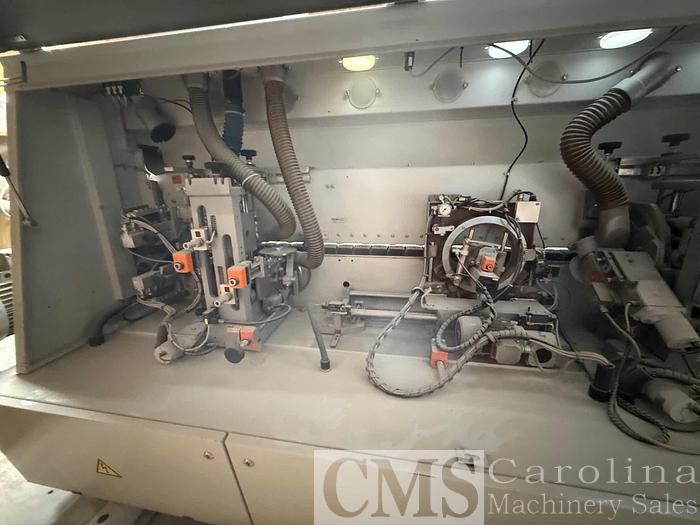

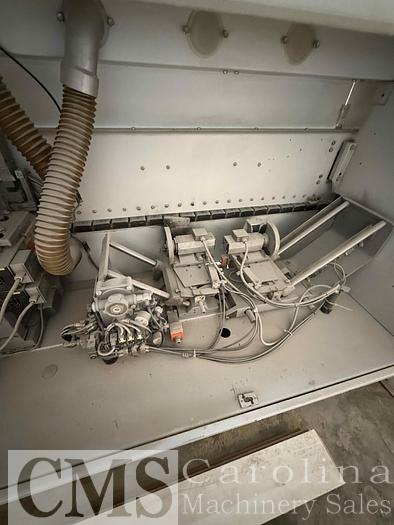

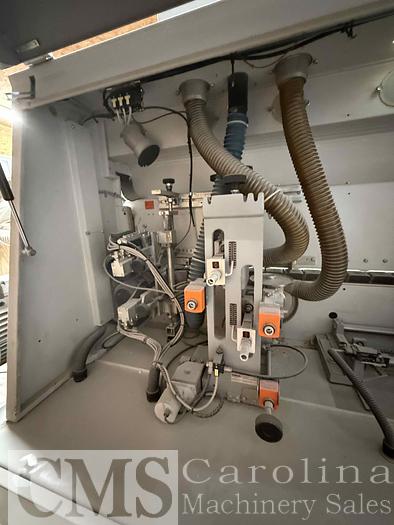

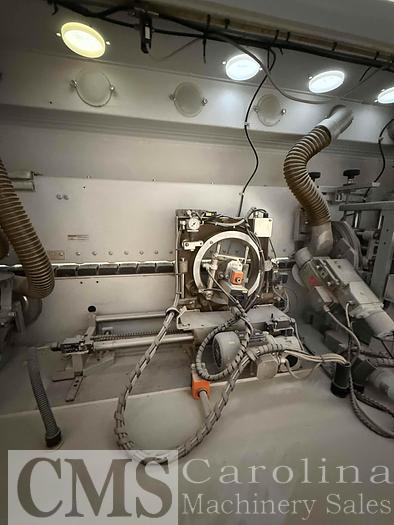

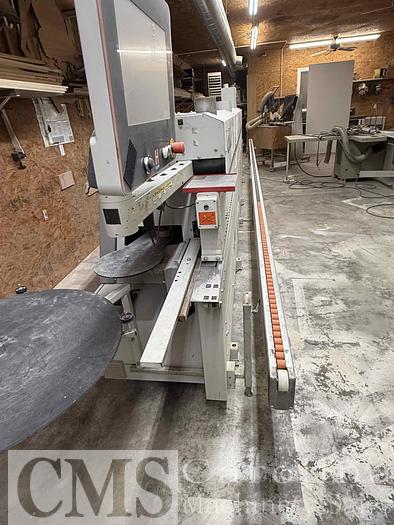

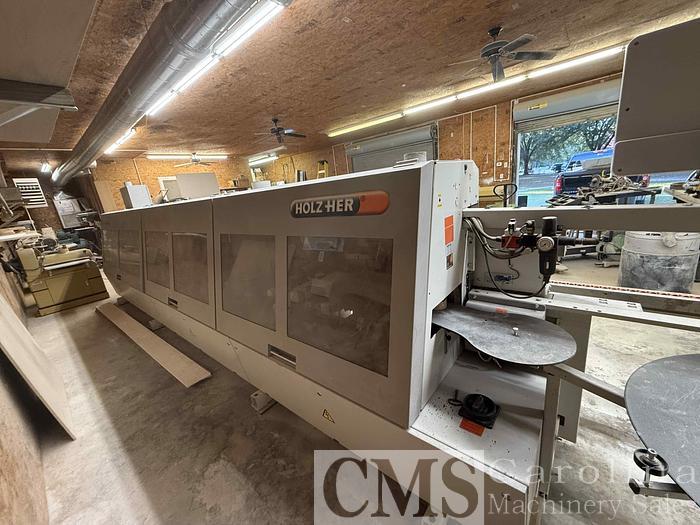

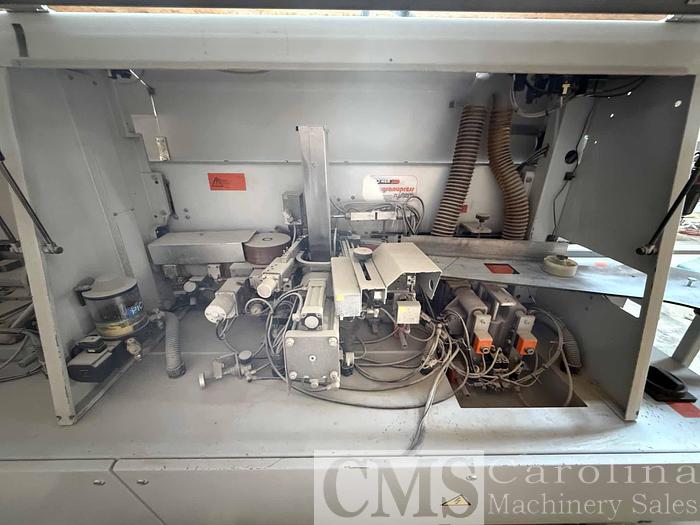

2009 Holz-her Triathlon 1487 Edgebander

Stations:

-1961M pre-milling unit, two cutter units each with a power of  2.0 kW

-1901 M automatic edge-magazine

- l 907 M granulate gluing unit

- J 926 M pressure unit with three (3) rollers, each with individual pneumatic plunge and pressure control

-1916.3 end cutting unit, two motors 0.45kW, 12000 RPM, edge

thickness up to 30  mm

-1962 flush trimming unit, two motors 2kW, 12000 RPM, edge thickness from 0.4 - 30 mm

-1966MOT5 fine/bevel/radius trimming, two motors 1.0 kW, 12000 RPM

-1929 profile scraper unit, max. edge thickness 3 mm

-1935 edge sanding unit

-1965 flat glue scraper

-1851 buffing unit

-Edge thickness: .04-25 mm

-Edge height: 51/66 mm

-Panel thickness: 6-45/60 mm

- Variable feed speed: 8-22 m/min
