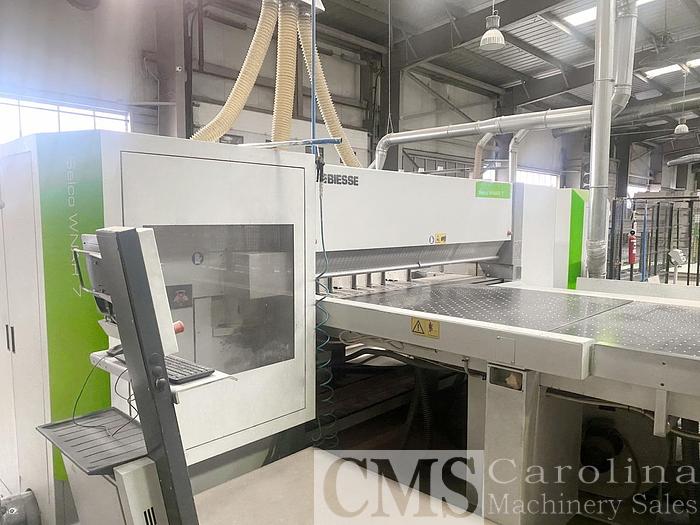

Selco WNAR 750 - 4500 x 2200 Angular Panel Saw

Angular sawing plant

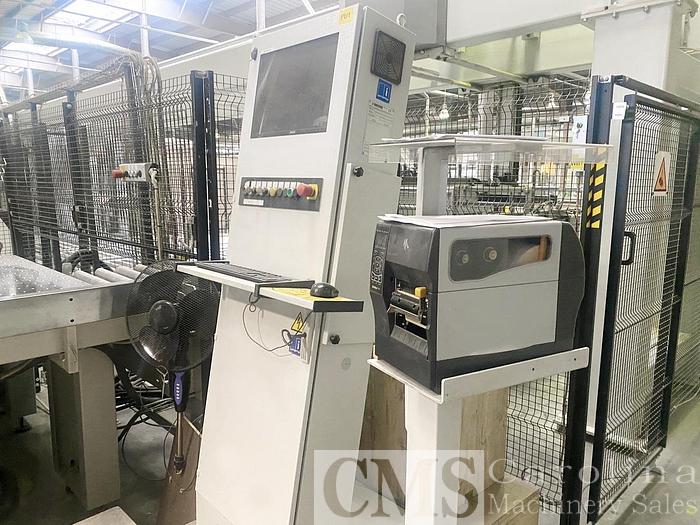

Numerical Control OSI Plus - Software Optiplanning

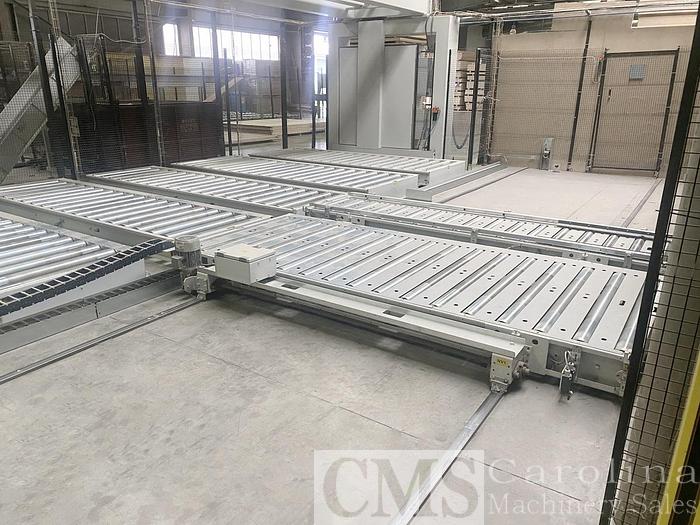

N. 2 Pre-loading roller tables (mm) approx. 4500 x 2200 each

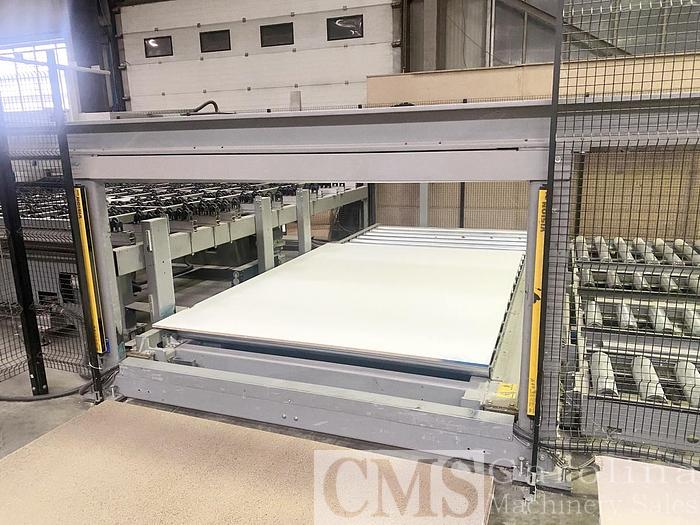

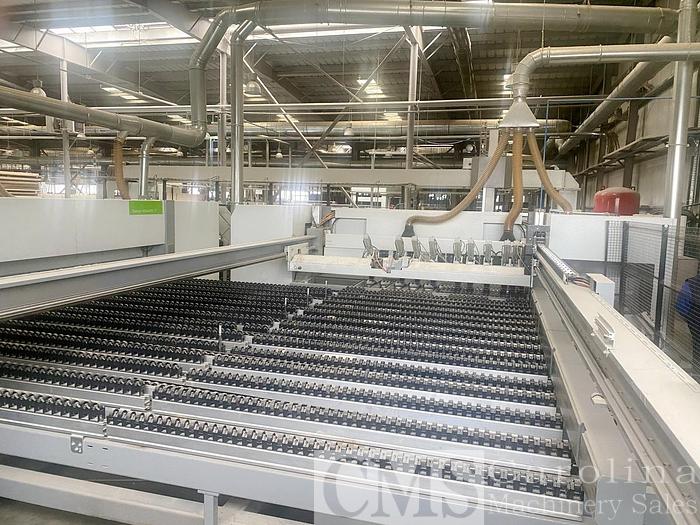

Lifting table (mm) 4500 x 2200

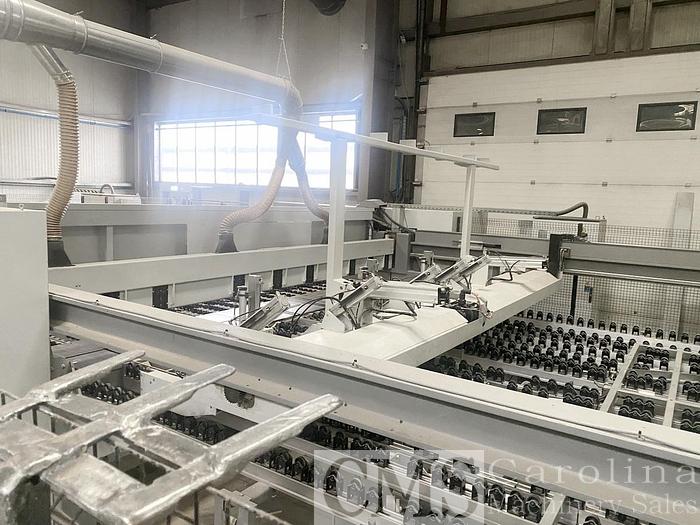

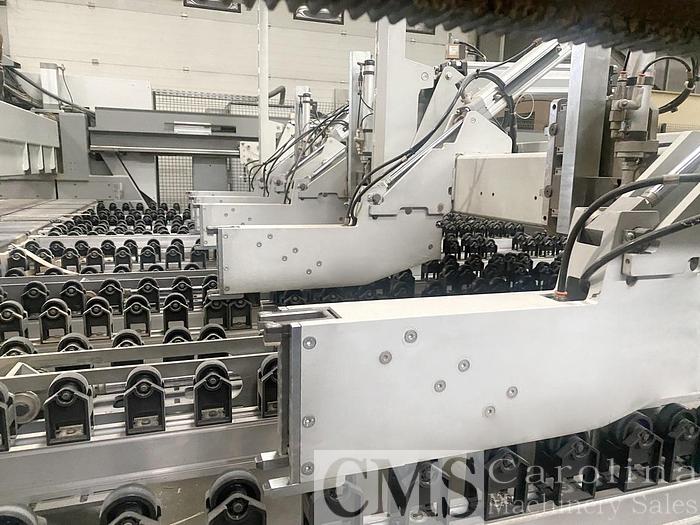

1° Rear-pusher, with No. 5 clamps/grippers

Turning device (rotating unit) at 90°

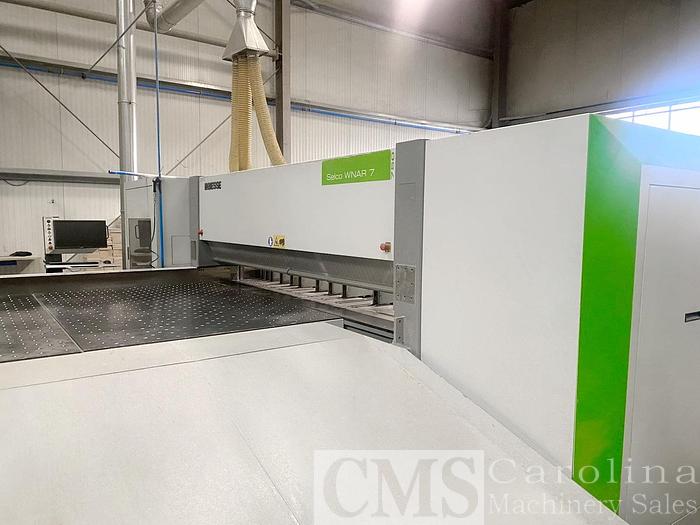

1° Panel saw (longitudinal) max. cutting width (mm) 4500

Max blade projection (mm) 152

Scoring Unit (max. diameter saw) mm approx. 215

Main Sawing Unit (max. diameter saw / power) mm 530 ( Kw 30)

Adjustable speed of the saw carriage (m/min) 1 - 170 m/min

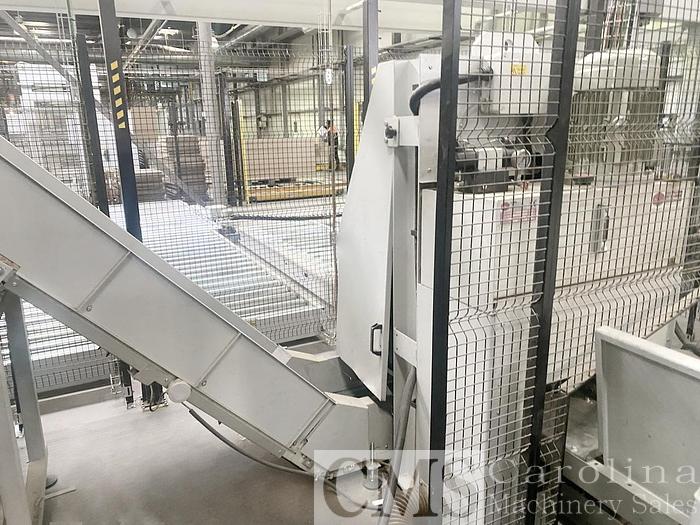

Cutter for shredding trimmings

2° Rear-pusher, with No. 10 clamps/grippers

2° Panel Saw - Max cutting width mm 2200

Max blade projection (mm) 152

Scoring Unit (max. diameter saw) mm approx. 215

Main Sawing Unit (max. diameter saw / power) mm 530 (Kw 30)

Adjustable speed of the saw carriage (m/min) 1 - 170 m/min

No. 2 Front supporting tables with Air blowing system mm 2200 x 1500

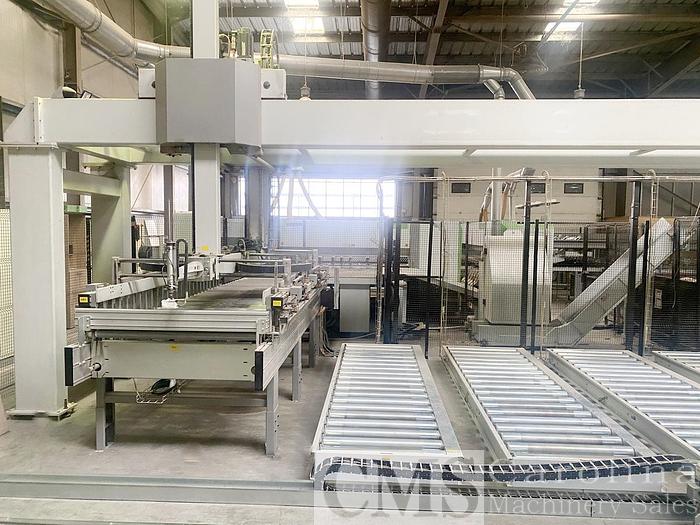

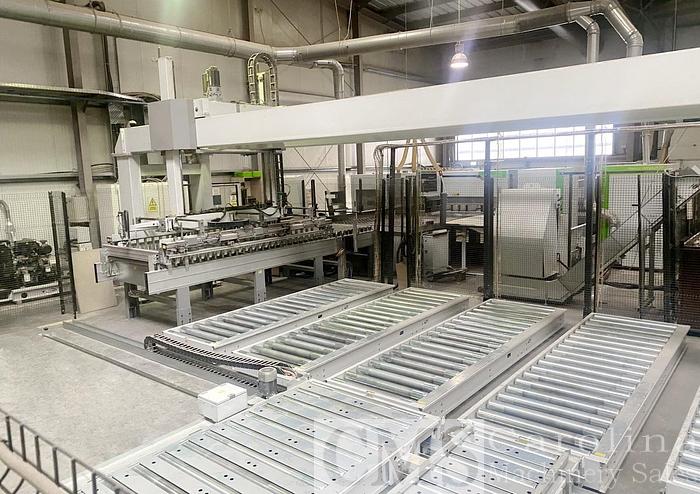

Automatic unloader (bridge) for cut panels "RBO (BIESSE)" Mod. Lifter with 6 stacking stations
