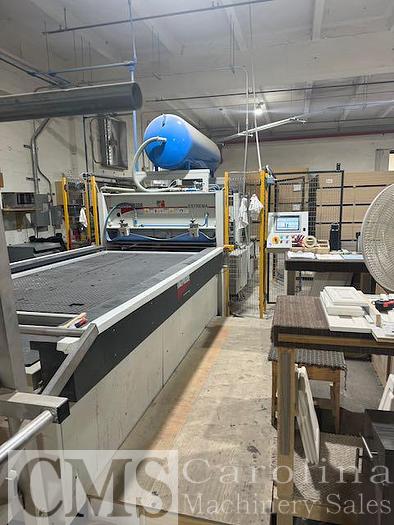

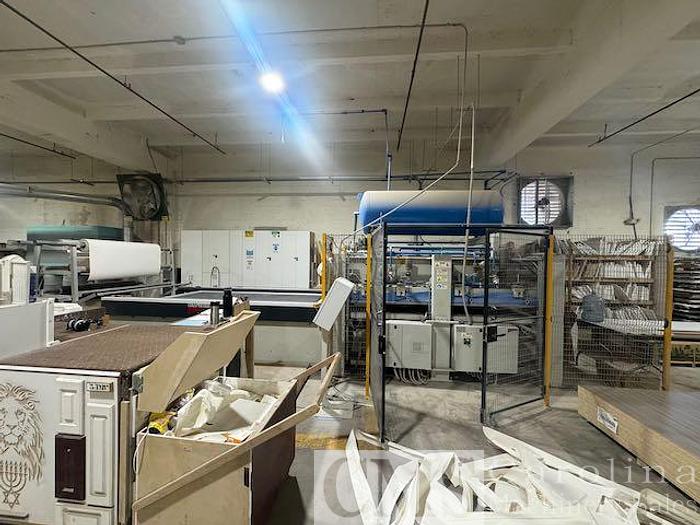

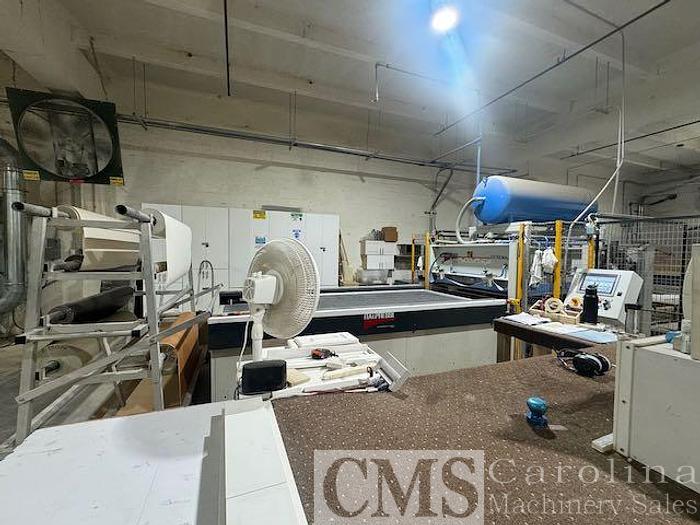

2019 Italpresse ESTREMA/14, 5-28 Membrane Press

• High production output of thermoformed cabinet doors & panels
• Short cycle times & superior output quality with vacuum + positive pressure
• Suitable for PVC, PPE, ABS, transfer foils, or natural veneers
• Possibility to run with or without a membrane and programs suited to your material and needs
• User friendly touch screen interface allows full control of machine functions with capability to store working programs for instant recall
• Available with one or two loading trays according to output requirements
• Manual or automatic tray loading
• Models with 4’x10’ usable press size

ITALPRESSE’S manual pin pedestal system is another significant advantage of the ESTREMA. The “PSS” pin support system eliminates the expense and hassle of pedestal panels and increases the potential output of the press. Setting the pins is quick and easy. There are no complicated electronics or pneumatic components to maintain. Just zip down one row of pins around each panel with a simple hand tool. That’s all there is to it. Only the pins around the immediate perimeter of the part lower down to create enough relief for the foil to properly form to the bottom of edge of the panels. Leaving the rest of the pins in the up position minimizes the amount of stretch induced into the PVC foil. The pins are an integral part of the loading tray and tightly spaced together creating a solid pedestal underneath the part. This eliminates the danger of rupturing the PVC in the open spaces between pins. You can choose to have all of the pins automatically reset as the tray exits the press or leave them as set for the next cycle.
