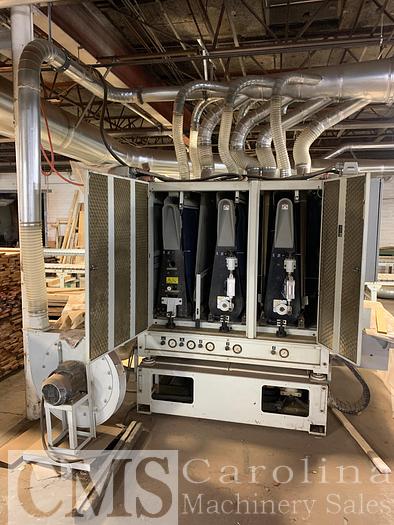

2000 Viet Challenge 333LM 3-Head Sander

Manufacturer’s Soecifications

-3 head 1350mm (52") wide belt sander for solid wood and thick veneer

-1st head, rubber covered contact roll 240mm dia. (9 1/2") with a shore hardness of 80. powered by a 25 hp motor. Abrasive belt speed 24m/sec.(79 FPS)

-2nd Head: rubber covered contact roll 320mm dia. (12 1/2") with a shore hardness of 50, powered bu a 20 hp motor,abrasive belt speed 20m/sec. (66 FPS)

3rd Head- unit with a sectional pad equipped with an electronic sectional sanding pad with avariable speed drive for the rotation of the sanding head.

-Automatic in/out fingers for the pad cleaning unit: panel cleaner unit by blow device and rotating blowers feed system ...3 kw (4hp) motor variable speed drive from 3-16m/min. (11-52 FPM)

-Material thickness range 4-175mm (0.16-6.9")

-Pneumatic feed conveyor tension.

-Controller: MAGELIS controller visual, inverter controls for sanding heads.

-Load meters on all heads

-Dust hoods for each head

-Disc brakes on all heads

-Emergency stop for belt breaks
