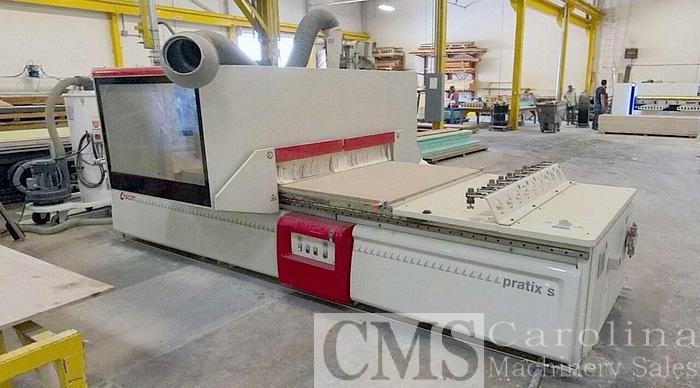

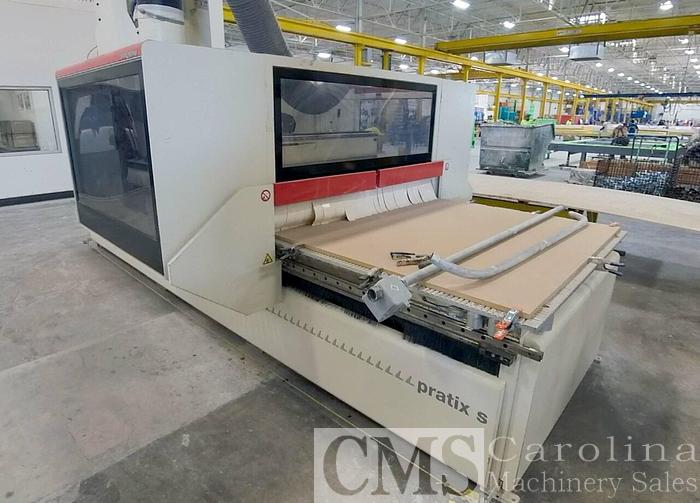

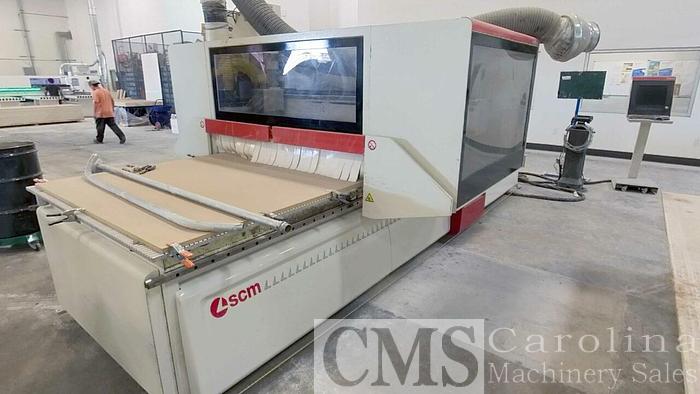

2012 SCM Pratix S 15 A CNC Router 5 X 12

Worktable dimensions: 145″ x 61″

Z -Axis stroke: 9.84″

Spindle speed: 24,000 RPM

Electrospindle (S1/S6 rating): 7.5 HP / 9HP

Tool Changer: 10 position

Spindle Taper: HSK 63

Boring Block (7) Spindles: 6,000 RPM

Maximum positioning vectorial speeds:

X/Y axis: 115 feet/minute

Electrics: 208/230/460 volts, 3-phase, 60 cycles

EQUIPPED WITH:

Windows Based Operating system

17” Flat Panel Monitor

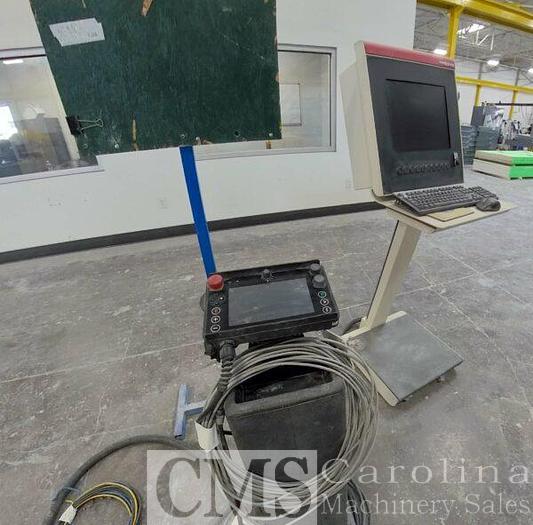

Remote Pendant with 7″ Display

7-Spindle Boring Block

Touch Probe

Spindle Air Blowers

Built In Vacuum Pumps- 2 Zones
