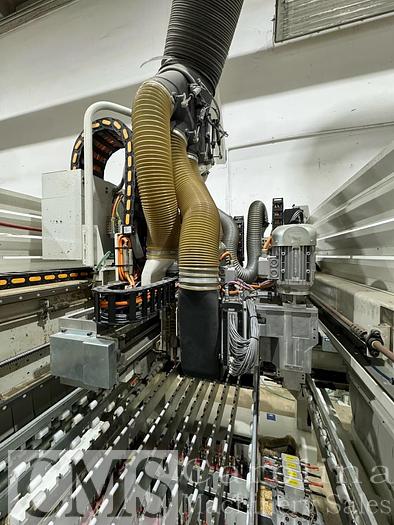

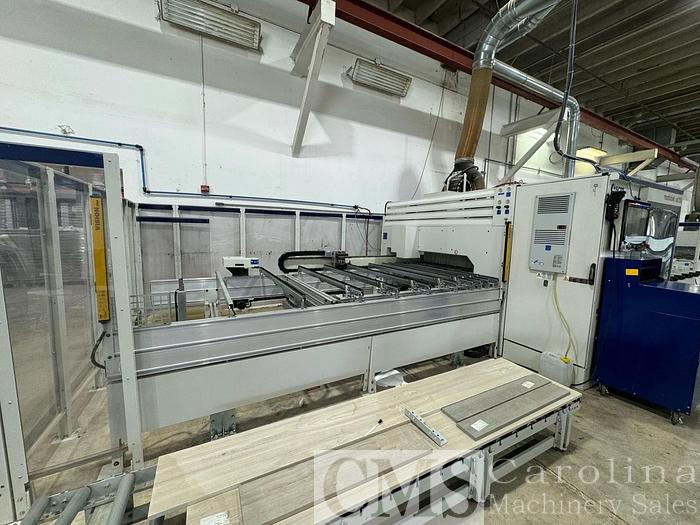

2021 Morbidelli UX200 CNC Drilling and Machining Center Router

ux200

Axes

Panel length (max.) mm 3200

Panel width (max.) mm 1300

Panel thickness (max.) mm 80

Panel weight (max.) kg 100

X-Y-Z axes speed (max.) m/min 120- 35- 30

Drilling head (std.) V

Vertical spindles no.31+31

rpm up to 6000 48+48

Horizontal spindles  no. 8(X)/4(Y)

rpm up to 6000 16(X)/4(Y)

Integrated blade in X axis Ø mm 125

rpm 7500

Electrospindle (opt.)

Power (S6) kW (Hp) 9,5 (13)

Max. speed rpm 24000

Available tools  no. 6+6
