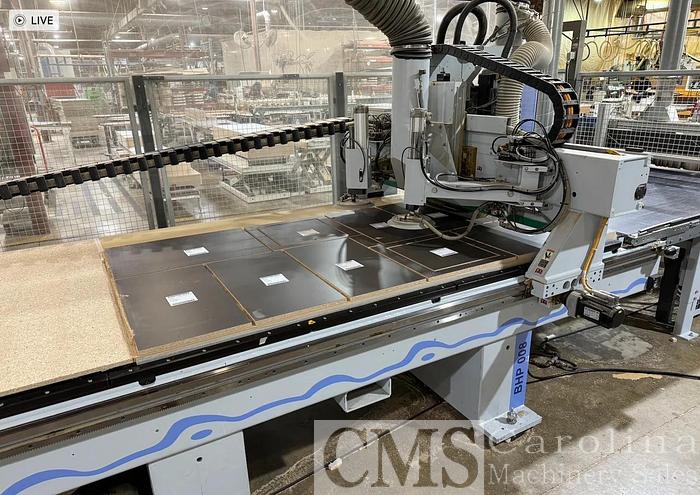

2013 Weeke Vantech 512 CNC Router (BHP 008)

Full Work Cell- Load and Unload. 5X12 Gantry Machine.

2013 Weeke VANTECH 512 CON2/BHP 008

(CON2 means Auto In-feed + Push-off

5' x 12' Router

   Gridded for pods/cups, custom gaskets and fixtures

   Pneumatic reference stops

   Five (5) vacuum zones

   100 mm (3.9") maximum workpiece thickness

X, Y and Z axes supported by THK linear guides

X axis driven by rack and pinion

Y and Z axes driven by ball screw

Indramat solid state drives and digital AC servo motors

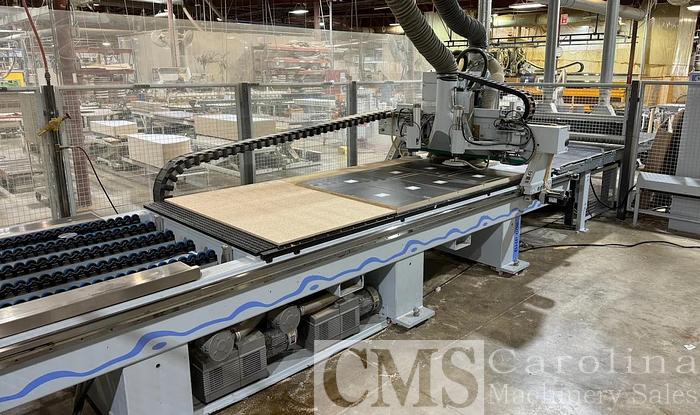

Four (4) Becker Picchio 2200 Vacuum Pumps

   360 m/hr. capacity (each)

Foot pedal operation

Router

   12 HP

   HSK, quick-change

   Ceramic bearings

   Fan-cooled

   Variable RPM: 1250 - 24000

   Air jets

Tool changer

   Eight (8) positions

   Mounted on LH side of machine

Tool length measuring device

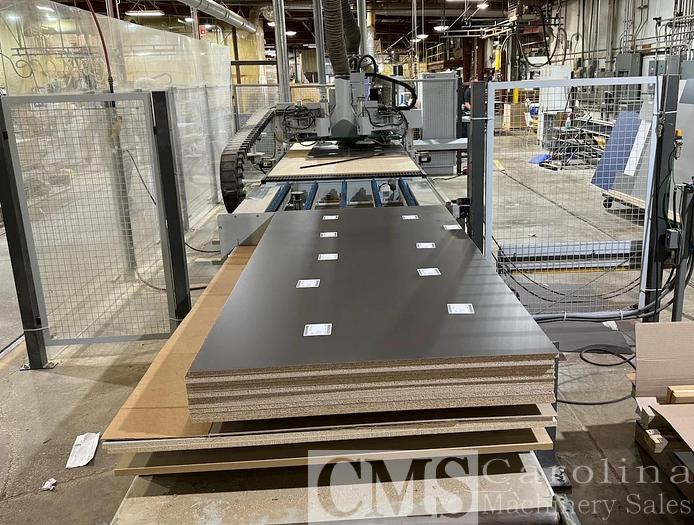

Auto Load system

Auto unload system

   Unloading arm/rake with integrated dust collection

   Bottom-mounted dust collection plenum between machine and outfeed conveyor

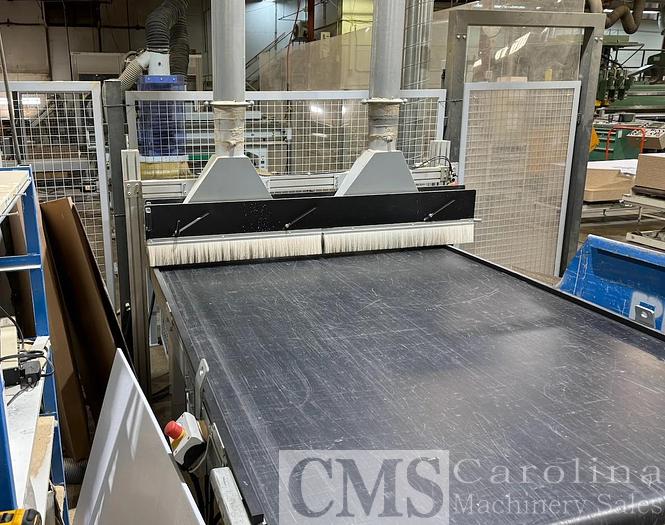

   Motorized outfeed conveyor with integrated dust collection

Front safety light barriers

Safety fence for left, right and rear of machine

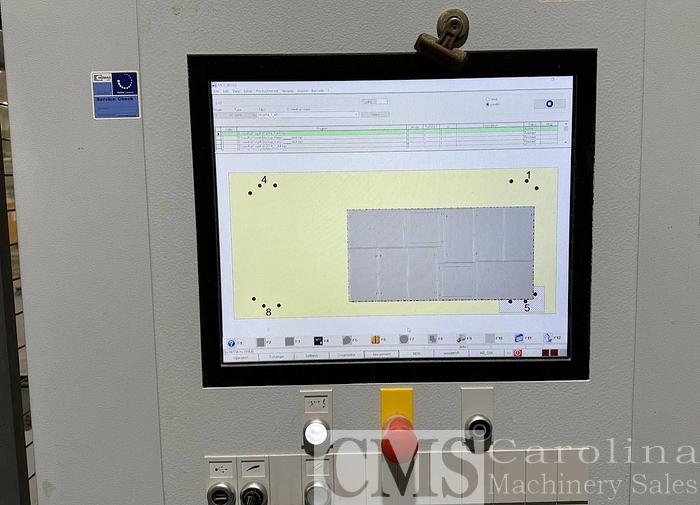

Control Console

    PC with standard keyboard and mouse

   17" flat screen monitor

   Windows 7 operating system

   Wood Wop 7 software

   Remote control pendant
