2018 Gannomat Index 230 Trend Boring Machine

Location

Midwest

orCall 704-288-1904

Specifications

ManufacturerGannomat
ModelIndex 230 Trend Boring Machine
Year2018
Stock Number011511

Description

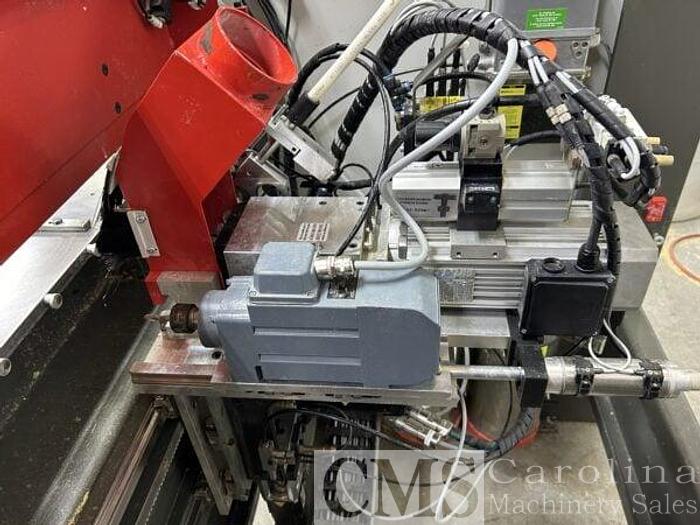

Boring/Inserting aggregate travel on profile bearing guides with:

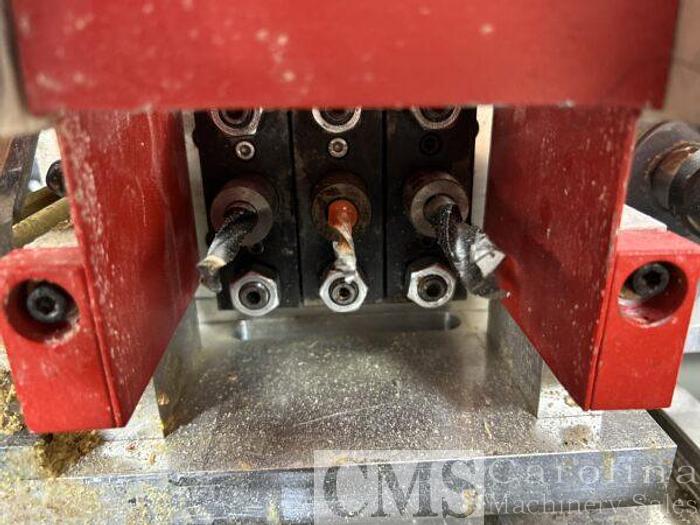

3 spindle boring unit – Horizontal

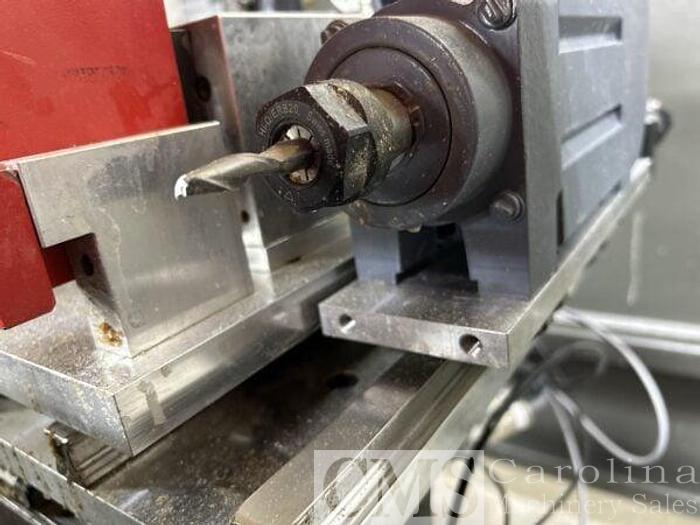

1 Spindle Routing unit – Horizontal

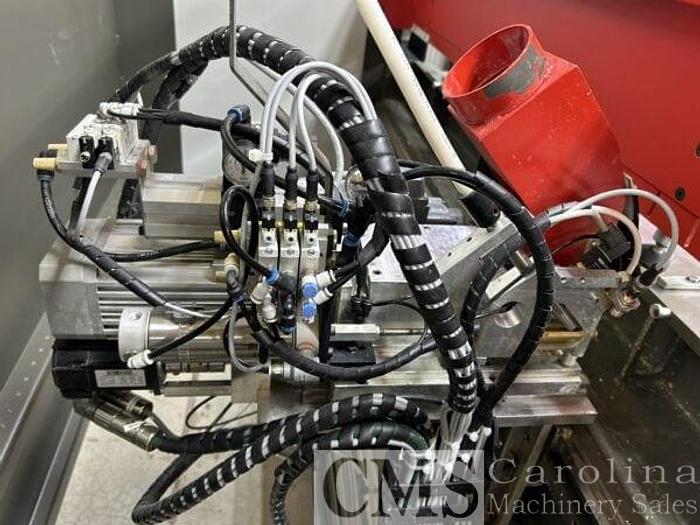

1 Blowing, gluing, dowel inserting unit for a single selected dowel 6 – 12mm diameter, 25 – 60 mm length – Horizontal

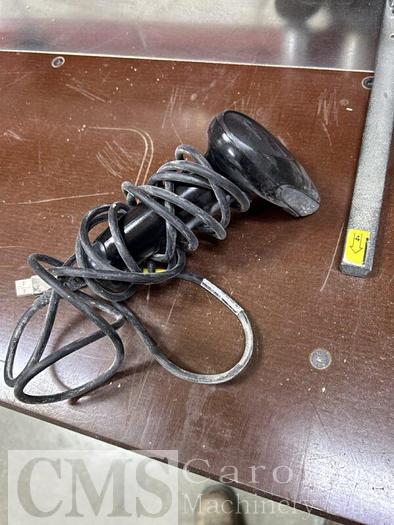

Barcode reader

Fully automatic electronically controlled central lubrication

Closed gluing system with variable setting of glue amount by touch screen

Selector switch GLUE/WATER for quick rinsing of entire system

1½ gallon glue Stainless steel container

1½ gallon water Stainless steel container

Glue control warning light

1 Right-hand stop, 1 left-hand stop, and 1 center stop, all removable

(3) Starting buttons for individual processing of 1-4 work pieces

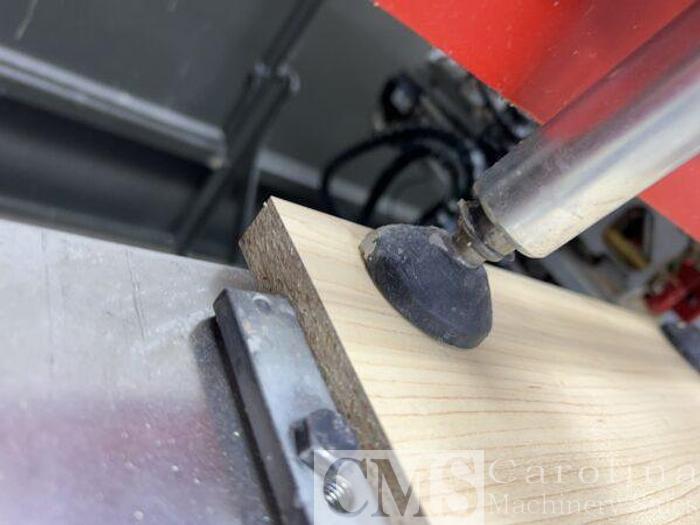

(8) Pneumatic clamping cylinders for work piece thickness max 80mm, work piece length minimum 70mm

1 Exhaust ducting, with connection diameter 80mm

Programming by menu-based software;

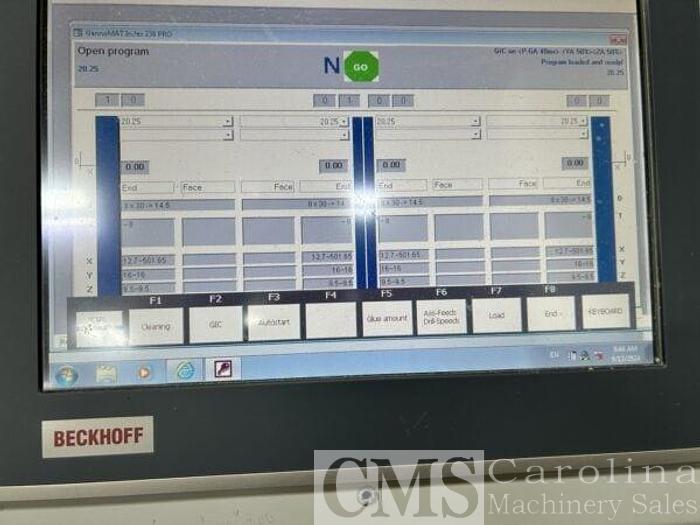

Beckhoff 15″ Touchscreen display

Operating system: WINDOWS 7
