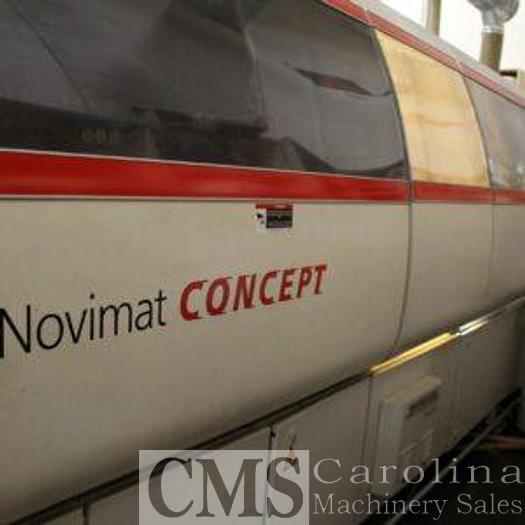

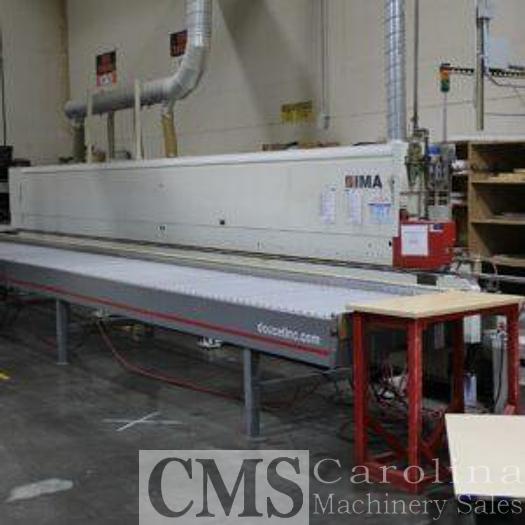

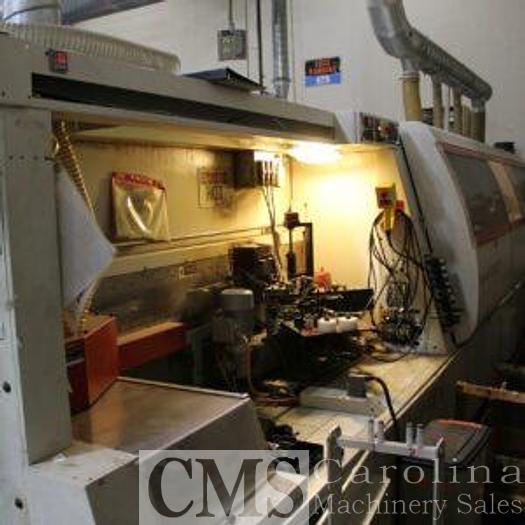

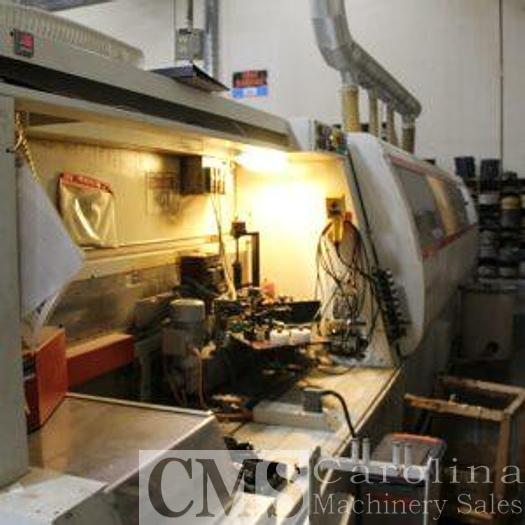

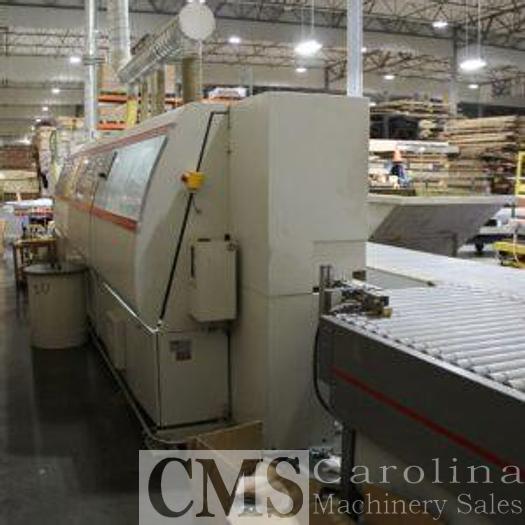

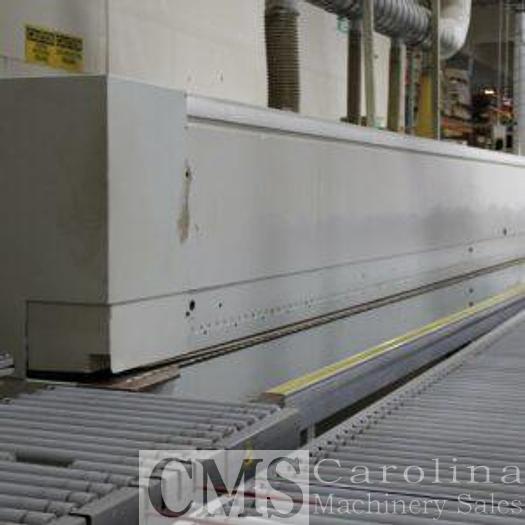

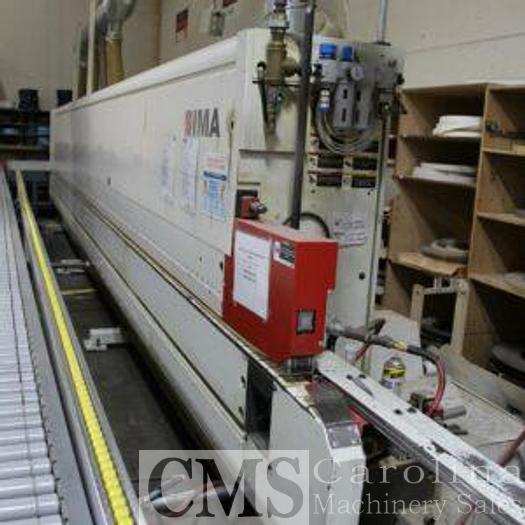

2007 IMA Novimat Concept I/G80/440/R3 with return
Specifications
| Manufacturer | IMA |
| Model | Novimat Concept I/G80/440/R3 with return |
| Year | 2007 |
| Stock Number | 011509 |
Description
Edgeband Thickness Max: 3 mm
Thickness of Coiled Edgeband Max: 3 mm
Suitable for PUR glue
Premilling unit
Corner rounding unit: 2 motors
Scraper unit: Profile and flat
Aggregates actuated by control: NC-axes
Machine length: 10.400 mm
Control: IMA ICOS OPEN COMPACT

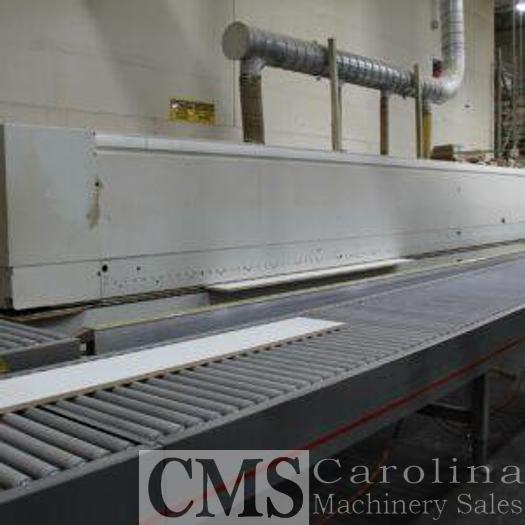

Workpiece return: Yes
Edgeband Height Max: 65 mm
Workpiece Length Min: 150 mm
Workpiece Width Min: 65 mm
Electromotoric height adjustment
Top pressure by belt
Feedrate max: 30 m/min
Preheating zone
Continuously variable feed

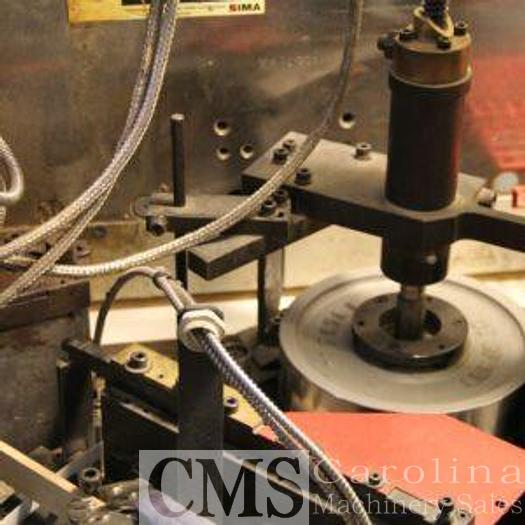

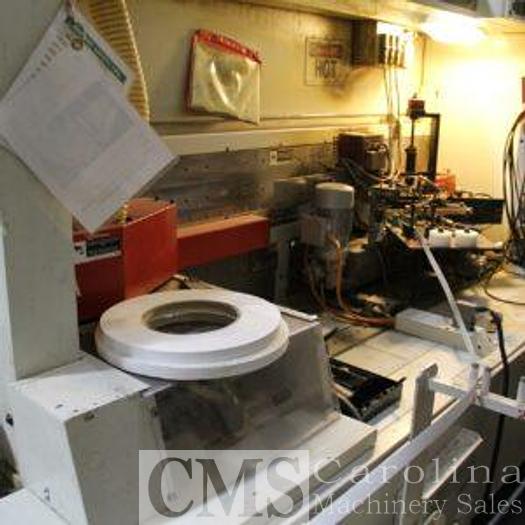

Places in Coil Magazine: 12
Spraying Device
Trimming Saw: 2 motors
Flush/radius/chamfer milling units: 1
Buffing unit
Type: Left-side Machine
CE Marking
Space Required:
Length: 13.700 mm
Width: 5.550 mm
Height: 2.400 mm
IMA 08.378 Premilling unit
IMA 08.42 Cutting aggregate
IMA 08.055 Milling aggregate
IMA MFA 08.348 Multiple machining aggregate
IMA 04.1570 Gluing aggregate
IMA 08.519 Profile scraper aggregate
IMA 08.521 Duplex flat scraper
Equipped with:
Brand New Gearbox
