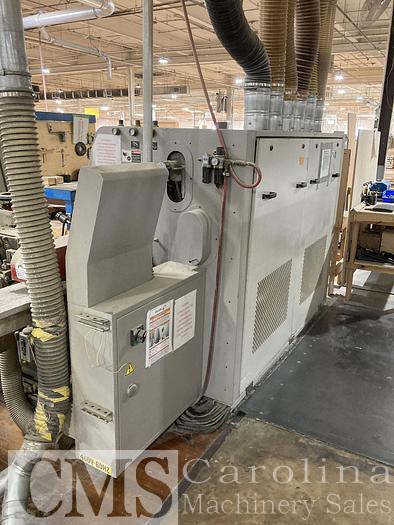

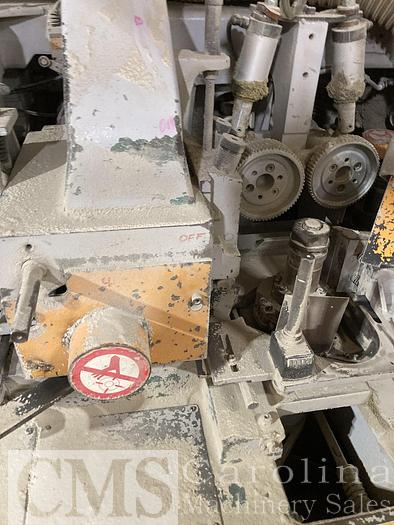

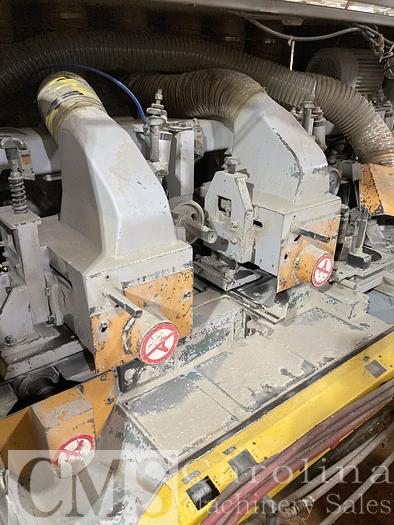

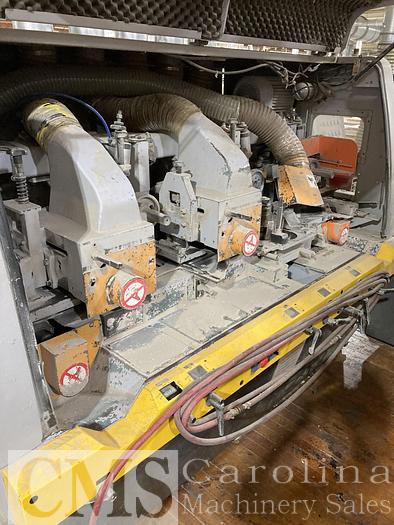

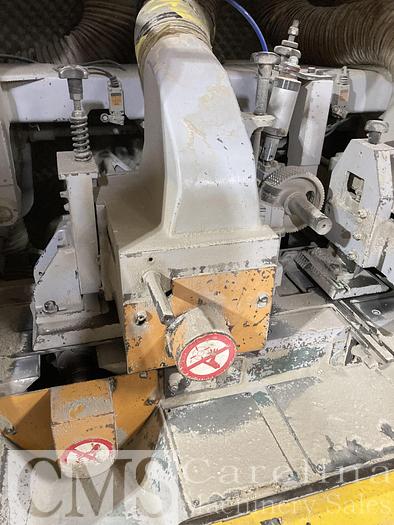

1997 Ultra Model GS-623 6-Head Moulder

Description ( to be confirmed)

PLANING WIDTH: 10 – 230 mm

PLANING THICKNESS: 7 – 125 mm

MIN. WORKING LENGTH: 230MM

FEED MOTOR: 5HP WITH INVERTER

FEED SYSTEM ELEVATION: 1/3HP

SPINDLE DIAMETER: 40MM OR1 13/16 INCH

SPINDLE RPM: 6000RPM

FEED SPEED: 10-120 FPM

SPINDLE DIA 40MM

FRONT BTM SPINDLE: 100 – 150MM CUTTER DIAMETER

RIGHT/LEFT VERTICAL SPINDLE: 100 – 195MM CUTTER DIAMETER

TOP HORIZONTAL SPINDLES: 100 – 200MM CUTTER DIAMETER

BOTTOM HORIZONTAL SPINDLES: 100 – 200MM CUTTER DIAMETER

MOTOR HORSEPOWER: BTM HORIZONTAL SPINDLE: 10HP

RIGHT/LEFT VERTICAL SPINDLE: 15HP

TOP HORIZONTAL SPINDLE: 10HP

TOP HORIZONTAL SPINDLE: 10HP

BTM HORIZONTAL SPINDLE: 10HP

FEED ROLL DIAMETER: 140MM

FEED ROLL WIDTH: 2 X 50MM

ADJUSTMENT OF VERTICAL SPINDLE: 30MM

ADJUSTMENT OF HORIZONTAL SPINDLE: 40MM

TABLE ADJUSTMENT: 12MM

TABLE LENGTH: 1800MM

MIN LENGTH OF CUT: 230MM
