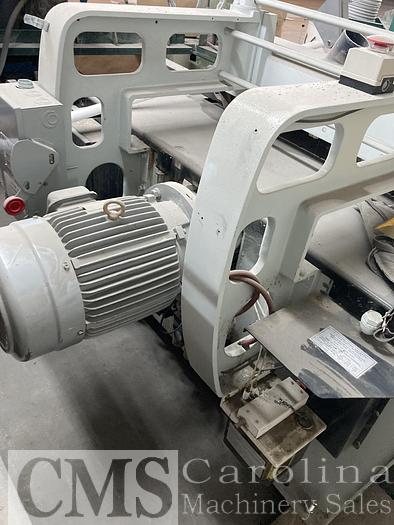

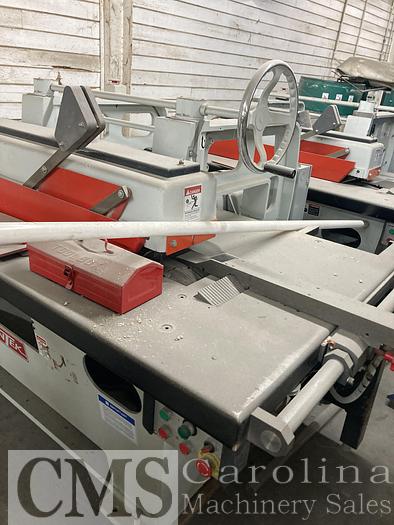

2005 Cantek CANR 18 Straight Line Rip Saw

Manufacturers specification

• Extra Heavy Main Frame Throughout with large support table
• 6” minimum length with this type of saw the blade is cutting downwards ie. forcing the Blade onto the chain – hence max. stability and safety are realized.
• Better chip clearance for shavings on deep cutting
• Glue Joint Range – 12” to 10 Ft.
• Depth of Cut 4.7”(120mm) max
•  Split chain – double track with HRC60 Rockwell Hardened Guideways
• 26” (660mm) Saw to Column
• 8 Press Rolls hold material firmly on the track

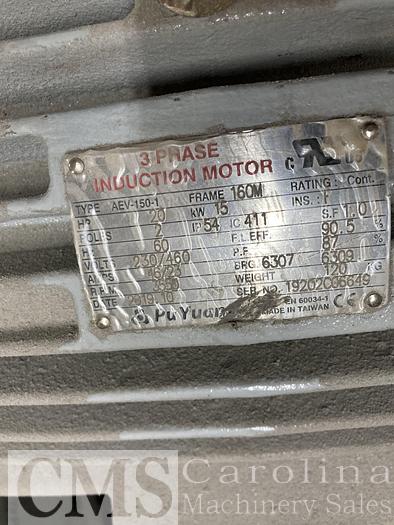

• 15 HP direct drive (20 Hp Main Motor – optional)
• 3 HP feed motor
• Feed Speed 33 to 180 FPM variable
• Automatic chain and track Oiler
• 41” length of chain above table
• Saw Arbor Height adjustable
• Max. 18” Blade Diameter x 2” Bore Dia. saw Arbor with 14mm pin at 65mm centers
• Saw Arbor Brake Included
• Anti-kickback fingers top and bottom
• Dust collection outlets:
• Top 5.75” 700 CFM
• Bottom 5” 550 CFM
• Table Dimensions – 82” x 40” x 33.5” high (Can be added to optional)
• Net weight – 4400 lbs
• Electrics 230/460
