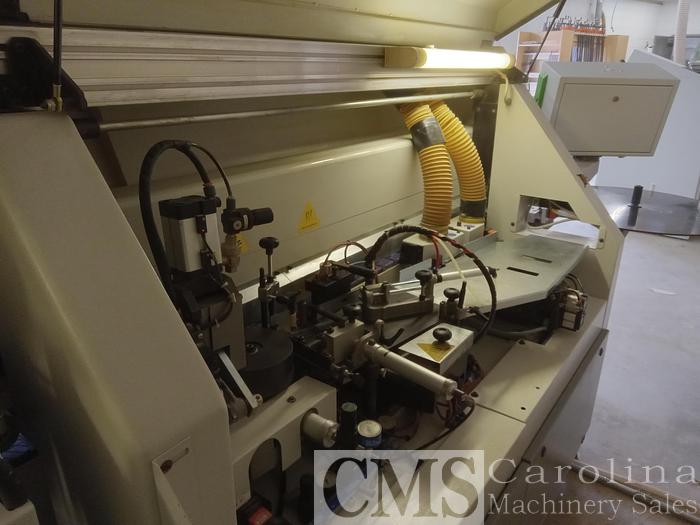

2005 Biesse Polymac Akron 246 Edgebander W/Corner Rounding and Pre Milling

Pressure Beam Type: Rollers

Pre-Milling Station: 2 Motors

Glue Station

Pressure Rollers: 4

End Trimming Station: Straight & Bevel (2 motors)

Rough Milling Station: 2 Motor

Fine Milling Station: 2 Motor

Corner Rounding Station: 2 Motor

Flat Scraping Station: Top & Bottom

Profile Scraping Station: Top & Bottom

Buffing Station: Top & Bottom

Heat: Top & Bottom

Panel Height: 10-50 mm

Edge-banding Material Height: 13-55 mm

Min. Thickness of Edge-Banding Strip in Rolls: 0.4-3 mm

Max. Edge Thickness w/Trimming Unit: 8 mm

Max. Edge Thickness w/o Trimming: 3 mm

Max. Section of Solid Wood: 8 x 55 mm

Panel Protrusion from Track: 25 mm

Min. Panel Length: 150 mm

Min. Panel Width (150mm Length): 85 mm

Min. Panel Width (250mm Length): 55 mm

Chain Feed Speed: 12 m/min

Dimensions: 18′ L x 4′ W x 5′ H

Weight: 4,000 lbs

Electrical: 230 V 3 Phase
