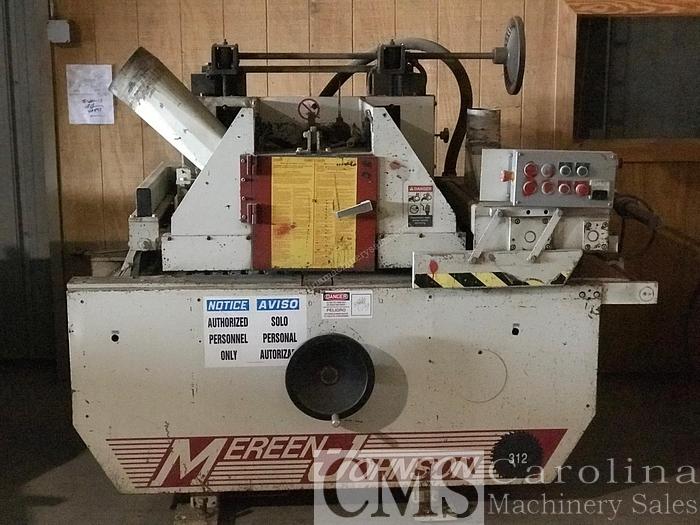

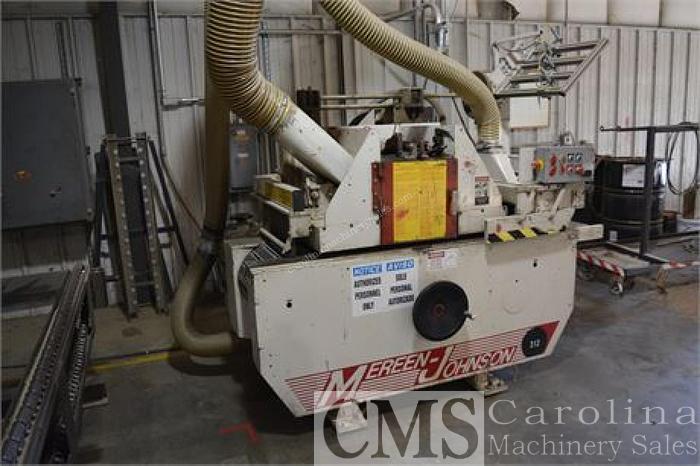

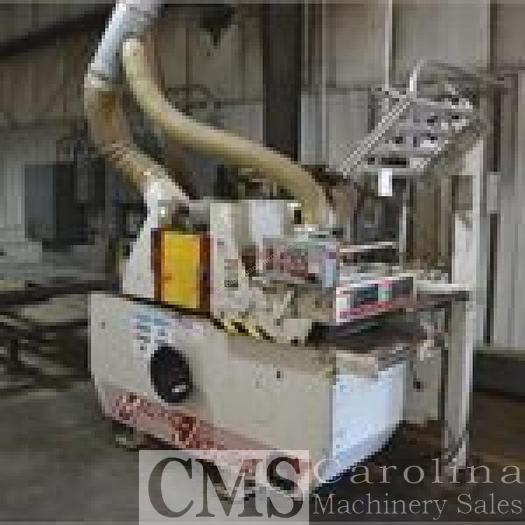

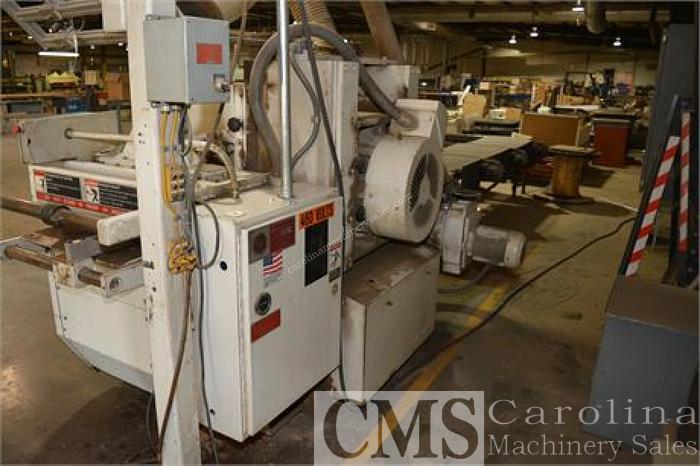

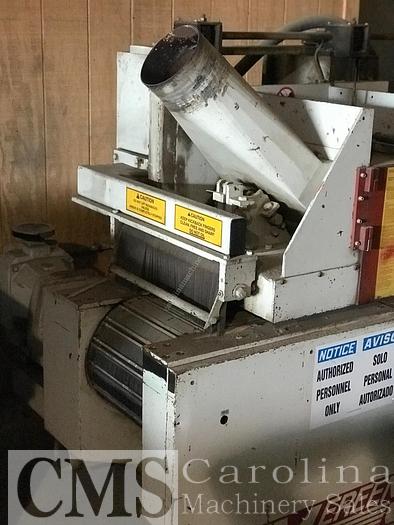

Mereen Johnson 312 DC

Location

Southeast USA

Sold

Specifications

ManufacturerMereen Johnson
Model312 DC
Serial NumberSN MJ-6214
Stock Number008476

Description

This machine is no longer needed at the current facility.

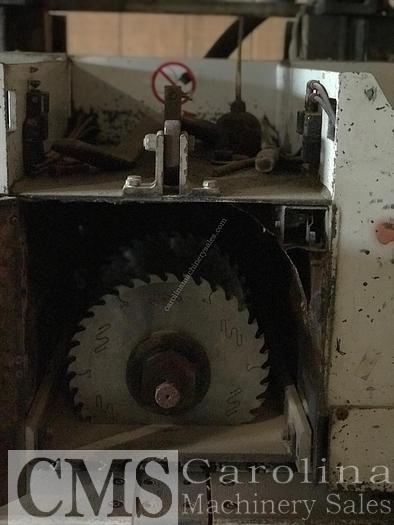

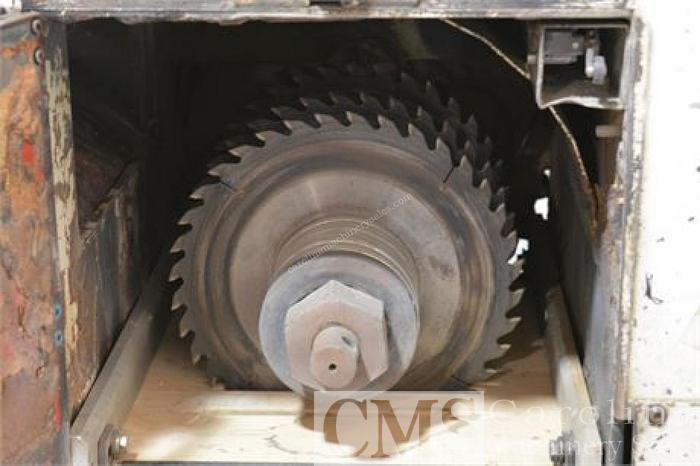

12" Cap. arbor & 6" throat, thickness 1/8" - 3-1/2" using 12" or 14" dia. tooling, 2-3/16" dia. arbor, min. length 22".

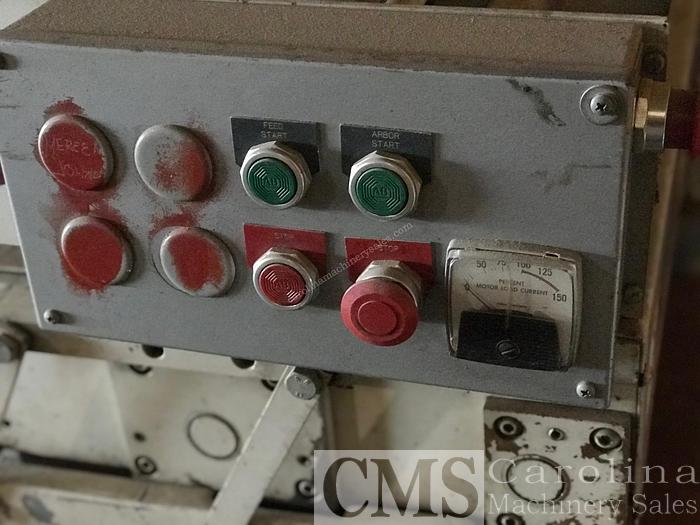

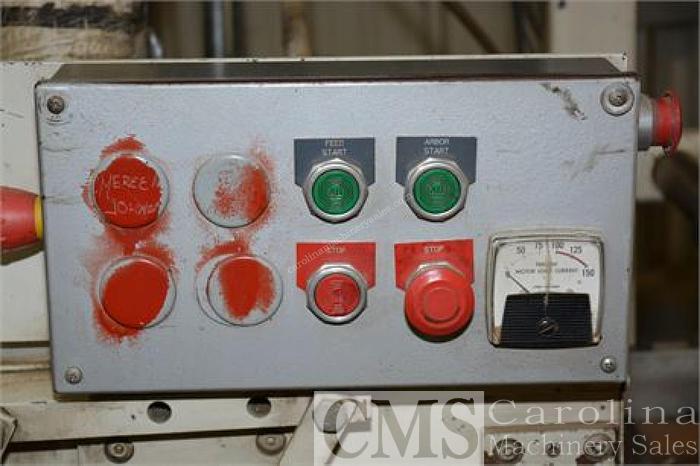

Arbor Drive: 50 HP - 3,600 RPM TEFC Direct drive motor, electrical lockout on access door, arbor hand brake, and motor load meter.

Feed Drive: 3 HP Feed motor, 30 - 150 FPM feed speed, shear pin drive pully.

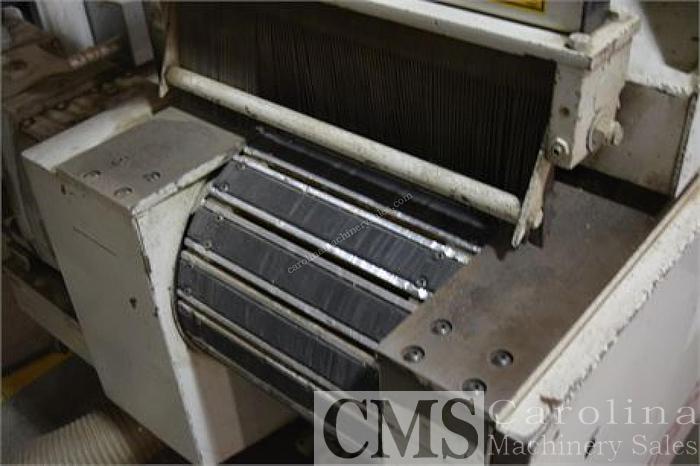

Feed Bed: 5" Pitch double-V chains with extruded aluminum slats & replaceable steel backed rubber inserts, and automatic oil mist lubrication system.

Holddowns & bed plate: (4) 3" Dia. spring loaded overhead idle press rolls, (1) full width overhead spring loaded bed plate, thickness adjustment with scale & pointer.

4-light laser
