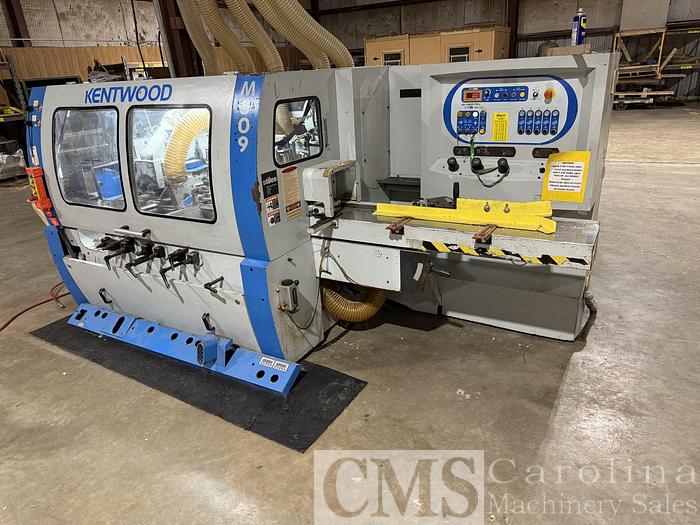

Kentwood M 509 Moulder

Location

South, USA

orCall 704-288-1904

Specifications

ManufacturerKentwood
ModelM 509 Moulder
Stock Number011275

Description

Specifications:

- Working Width: 15 - 230 mm (19/32 to 9-1/16 inches)

- Working Height: 6 - 150 mm (1/4 to 5-29/32 inches)

- Spindle Speed: 6,000 RPM

- Spindle Dia: 40 mm

- Clamping Length of horiz. and universal spindles: 235 mm

- Clamping Length of vertical spindles: 160 mm

- Feed Speed (variable): 6-24 m/min (19-80 fpm)

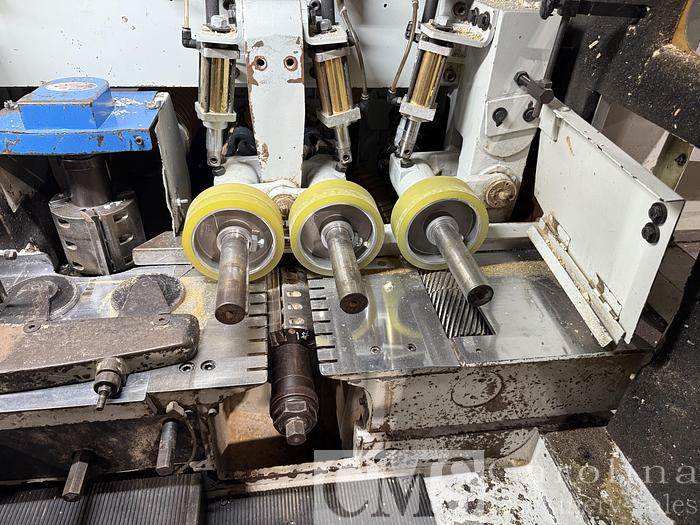

- Diameter of Feed Roller: 140 mm (5-1/2 inches) - Diameter of Table Rollers: 100 mm (4 inches)

- Width of feed rollers: Shaft mounted to 9 inches

- Width of rollers opposite left spindle: Stackable to 6 inch

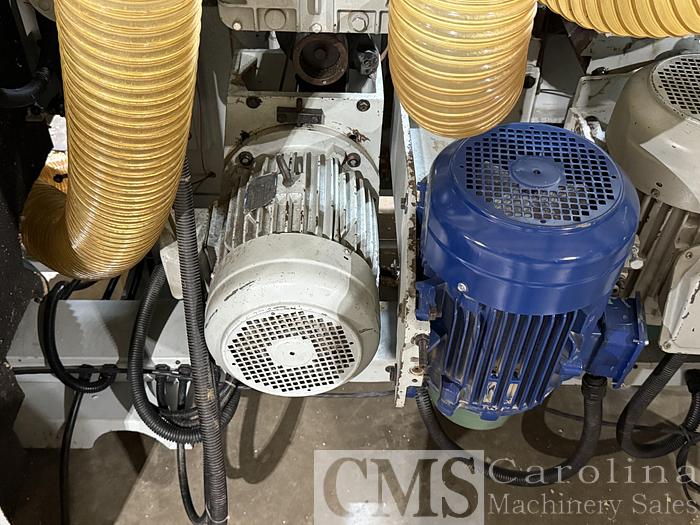

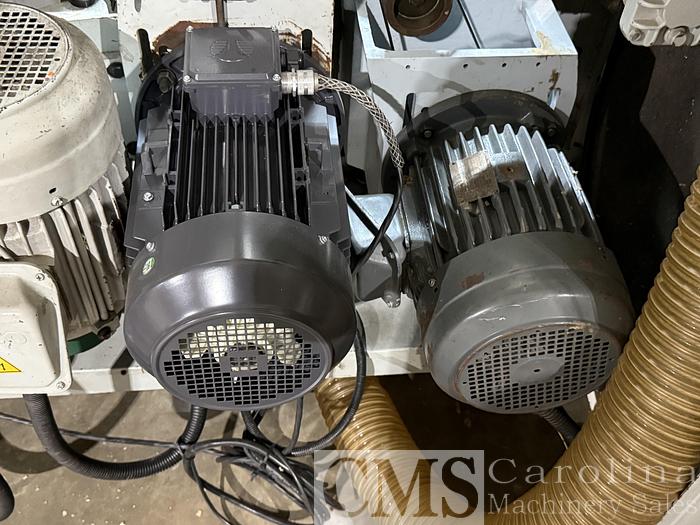

Head Power:

- First head: 10 HP

- Second head: 7.5 HP

- Third head: 7.5 HP

- Fourth head: 15 HP

- Fifth head: 10 HP

Additional notes:

- Driven roller outfeed table: Smooth Steel

- Driven table before first bottom spindle: Serrated Steel

- Top Chipbreaker shoes: Dual receding (spring), Smooth

- Manual lubrication pump

- Tables and fences: Hardened Smooth Chrome

Total Weight unskidded: 8,375 lbs.
