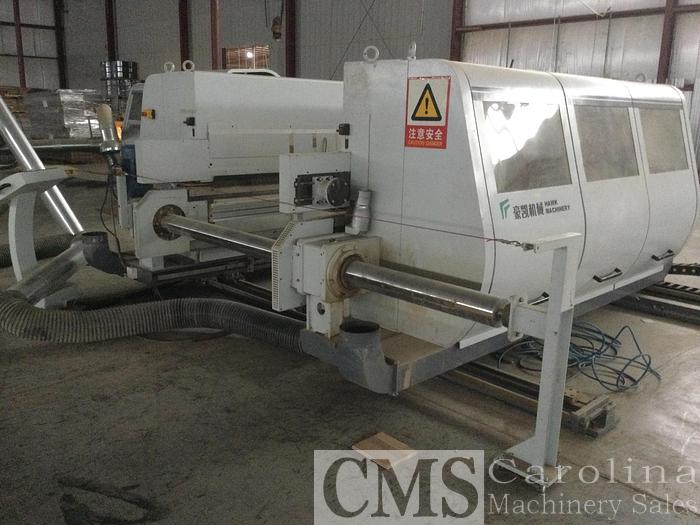

2016 Hawk Machinery HKH 337 Double End Tennoner(Flooring)

(1) Hawk CNC flooring end matcher

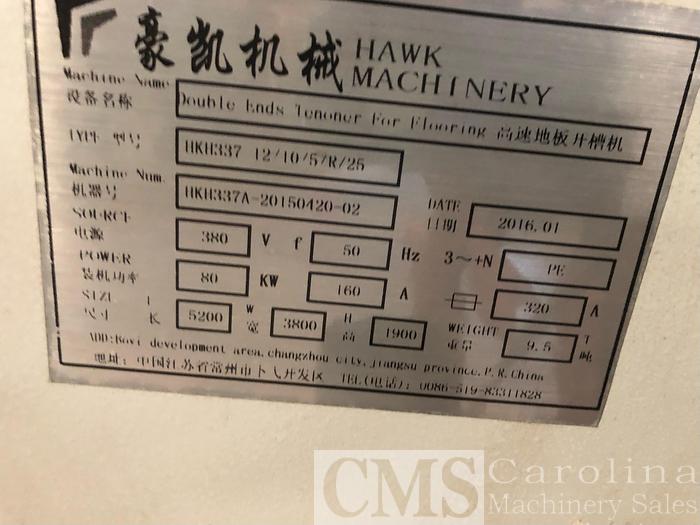

Model HKH337 12/10/5/R/25

S/N HKH337A-20150420-01

Year 01/2016

380 Volt three phase, 160 amps

Max working width 2540 mm (100")

Min working width 400 mm (15.7")

Max working thickness 25 mm (0.98")

Min working thickness 3 mm (0.118")

Min workpiece length 400 mm (15.7")

Feed speed 5 to 100 m/min

Table passline height 44"

Top gravity infeed hopper feeder fences

2-1/4" wide rubber padded table feed chains

Bolt on chain dogs mounted every 15-3/4"

36" infeed load space

Table passline height 37-3/4"

1st station: (Left and right hand) Adjustable height tilting tip trim saws

4.0/6.2 Kw drive motors

2nd station: (Left and right hand) adjustable height tilting bottom trim saws

4.0/6.2 Kw drive motors

3rd station: (Left and right hand) adjustable height tilting shaper spindle

4.0/6.2 Kw drive motors

4th station: (Left and right hand) adjustable height tilting shaper spindle

4.0/6.2 Kw drive motors

Servo controlled 4th station axis

5th station: (Left and right hand) adjustable height tilting shaper spindle

4.0/6.2 Kw drive motors

6th station: (Left and right hand) adjustable height tilting shaper spindle

4.0/6.2 Kw drive motors

Mechanical digital readouts for station set up

Pneumatic pressure shoes around shaping spindles

Sound and safety enclosure around all stations

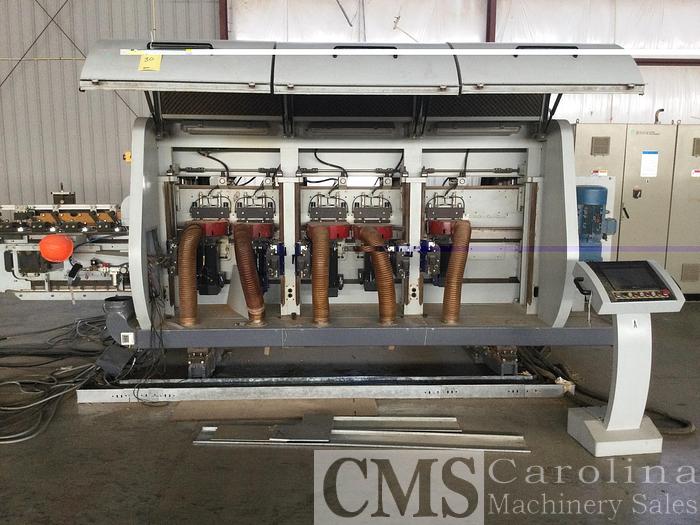

Lift up access hoods with inspection windows

5.5 Kw feedworks drive motors

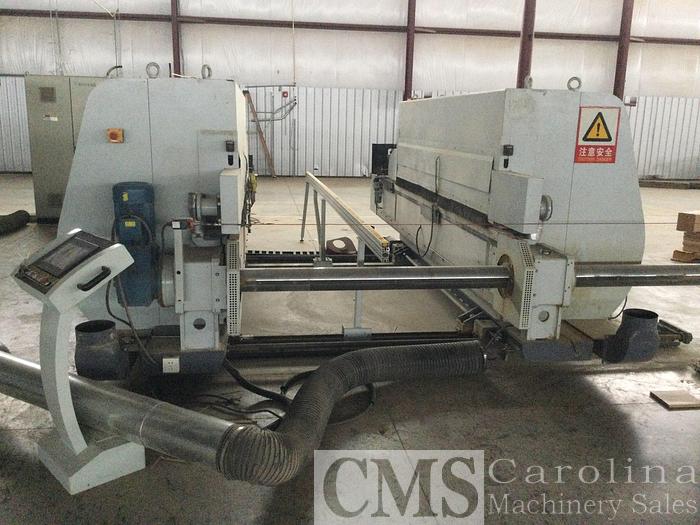

Freestanding computer operator control station

Weinview color touch screen display

Push button master controls

(1) Outfeed mounted conveyor deck with flooring board flipper
