2004 High Point Tool HP-11 Horizontal Bandsaw

Single Head Horizontal Band Re-saw System

Model : HP-11P-SMART

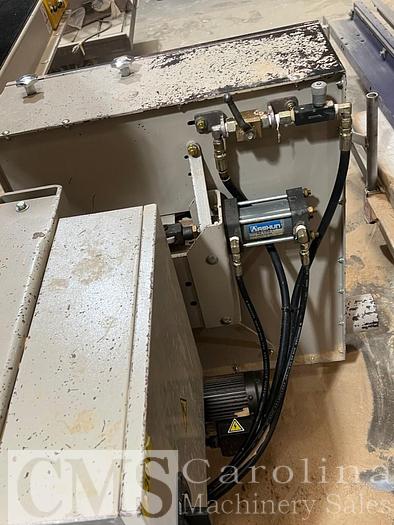

• Single saw head configuration. • Motor powered set works for accurate saw wheel elevation. • Digital position controller permits accurate saw wheel height positioning. • Automatic blade tension is controlled by hydraulic cylinder. • Variable feed speed by hydraulic motor drive. • The big pressure roller is air cylinder loaded to hold wood down firmly.

Specifications

HP- 11P-SMART

1.    Saves Time and labor costs

2.    Pneumatic pressure roller infeed

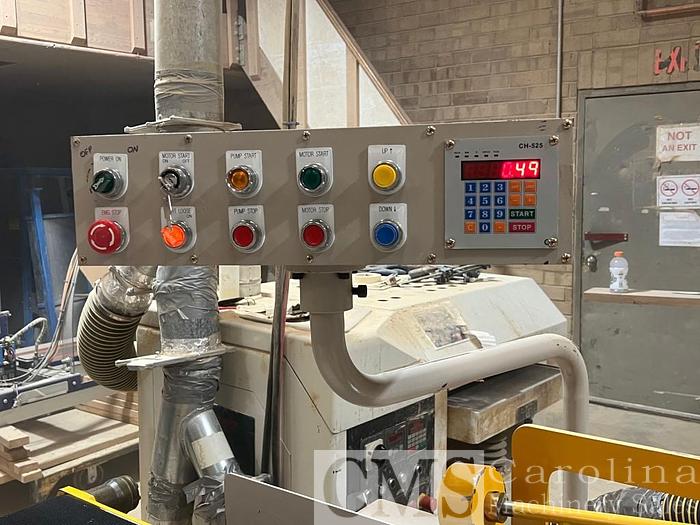

3.    Digital position controller permits accurate saw wheel height

4.    Easy to operate and set up

Feed speed: 4-27m/min (13-90FPM)

Max. cutting height: 250mm (10”)

Max. cutting width: 300mm (11 3/4”)

Min. workpiece length: 400mm; 205mm with extension set

Max. workpiece length: 580mm

Distance from blade to conveyor: 4-125mm

Saw wheel Diameter: 711.5mm (28”)

Saw wheel width: 22.7mm (1”)

Saw blade size: 4265 x 27mm (168” x 1’)

Blade speed: 2816m/min (9240FPM)

Saw Motor: 15kW(20HP)

Feed unit: 0.75kW(2HP) gearbox motor with frequency converter

Cooling system Oil mist

Blade tensioning

Hydraulic system

Motor for blade positioning: 0.18kW(1/4HP)

Dust post: Ø4” x 4

Table height: 902.5mm

Machine weight: 951kgs

Machine dimensions: 2835 x 2052 x 1678mm (LxWxH)
