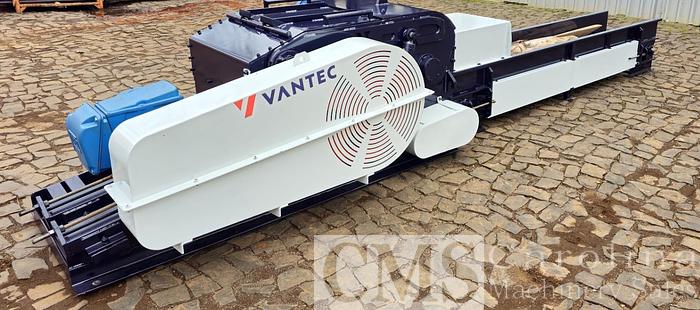

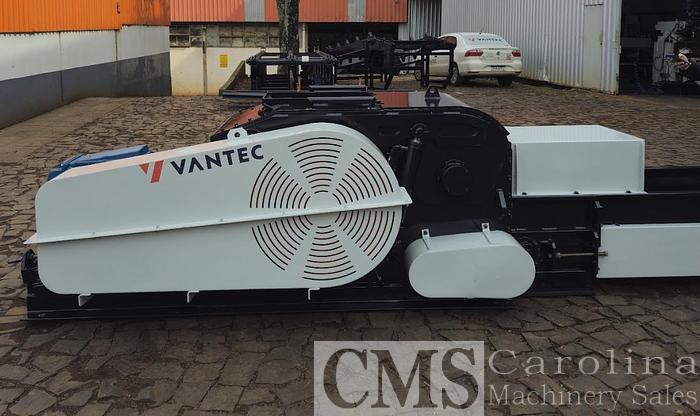

2024 Vantec PT600 R8 Drum Chipper

Vance PT600R8 Drum Chipper

See this machine at IWF Atlanta 2024!

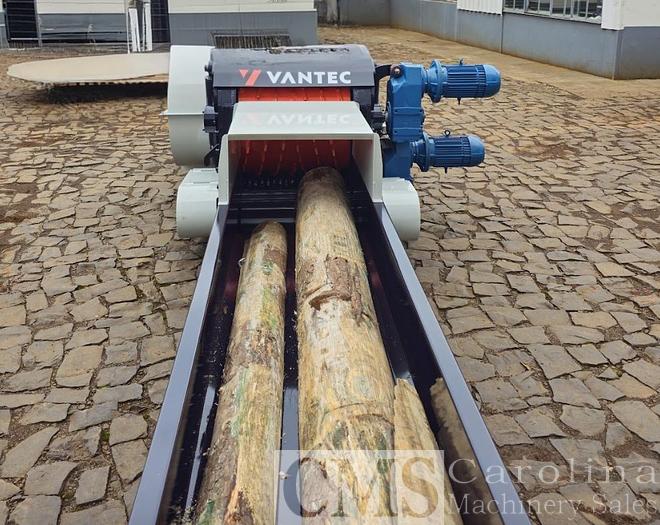

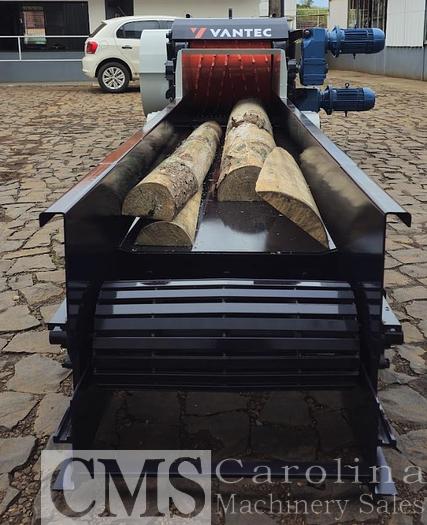

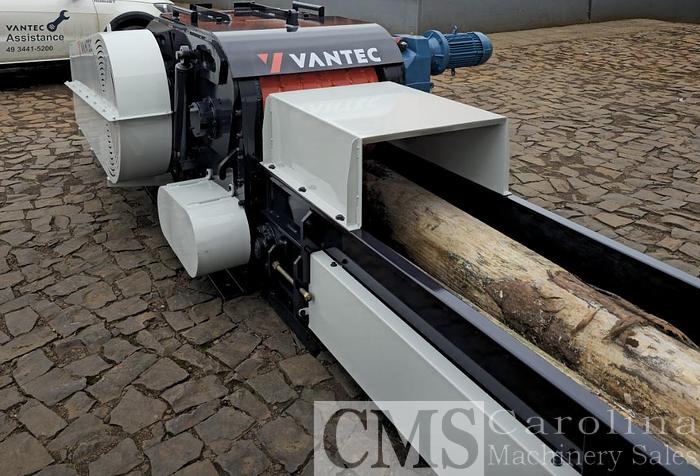

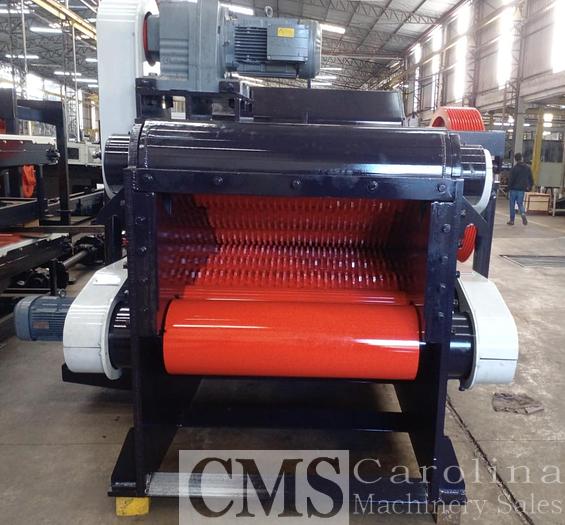

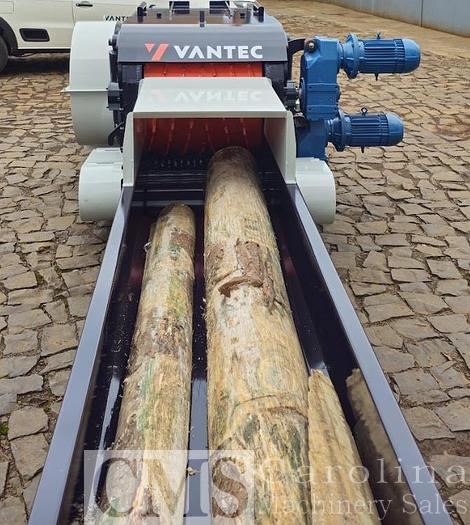

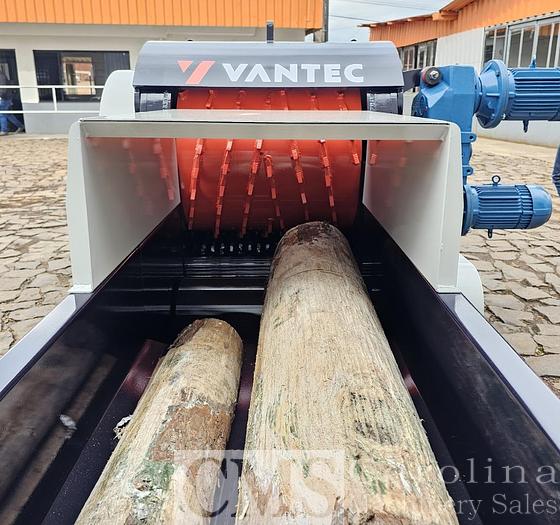

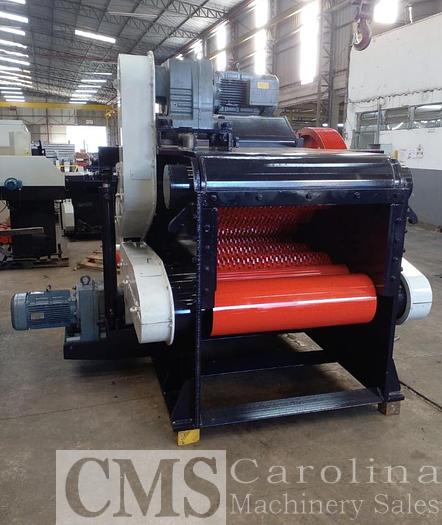

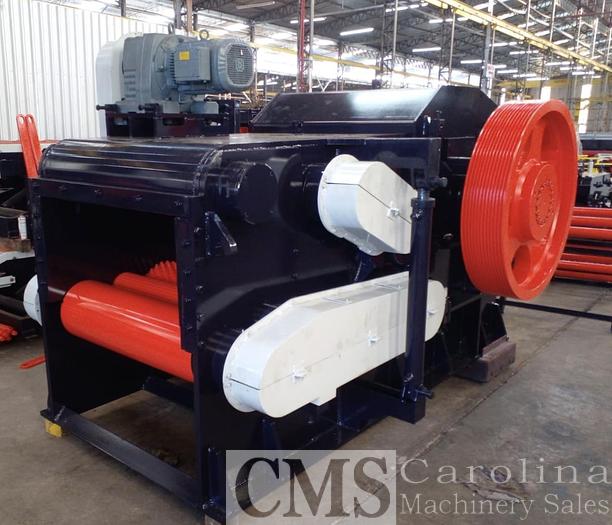

This Wood Drum chipper PT600 is used in production of wood chips from logs and veneer waste. It has a toothed roller system that allows efficient material infeed, a rubberized conveyor belt and a Hydropneumatic unit to lift the rotor cover for maintenance. It comes with 01 chipper Knife set and 01 nose bar set. It does not come with the output conveyor.

• Width of inlet: 600 mm;
• Height: 300 mm;
• Rotor diameter: 800 mm;

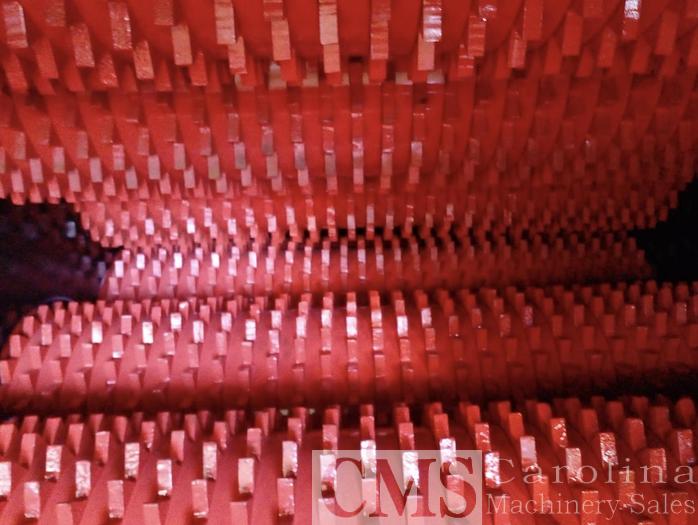

• Toothed roller: 01 upper and 01 lower;
• Grooved rollers: 01;
• Rollers gear motor: GD (helical gears);
• Metal detector: Flat model;

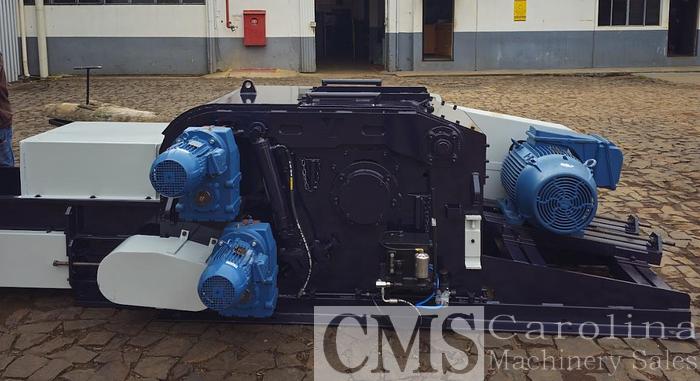

• Rollers motor size: 5 hp (2x);
• Number of rotor knives: 02;
• Wood chip size: 25 - 40 mm;

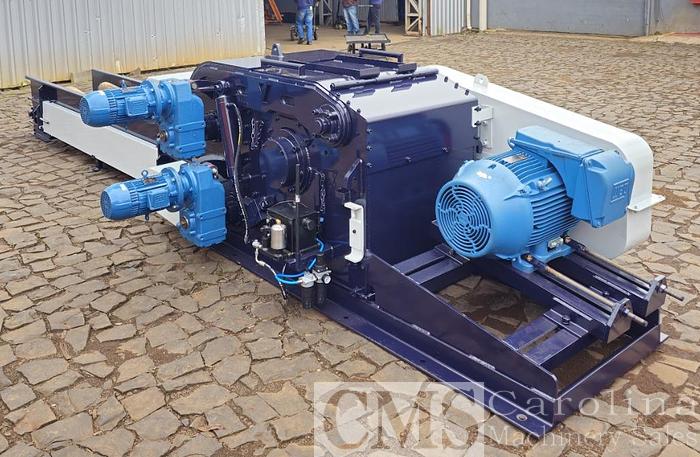

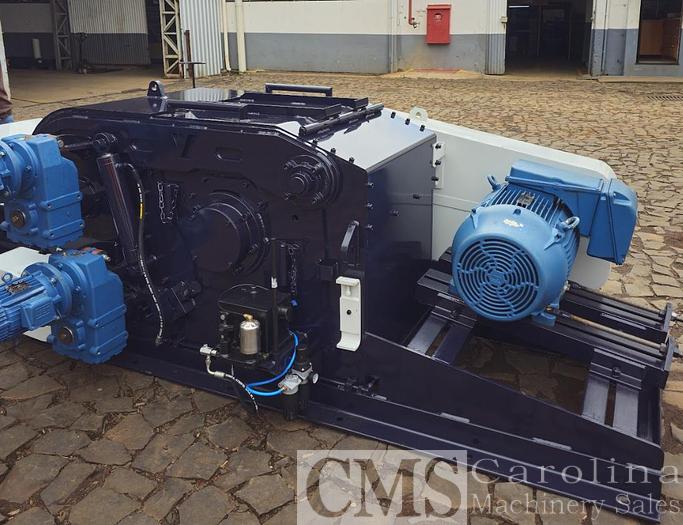

• Main motor 125 hp 4P: Included;
• Drive panel: Included;
• Lead Time: 240 Days;
• Estimated production: 55 m3 / h (it may vary according to the type of material and time used with blade sharpening);

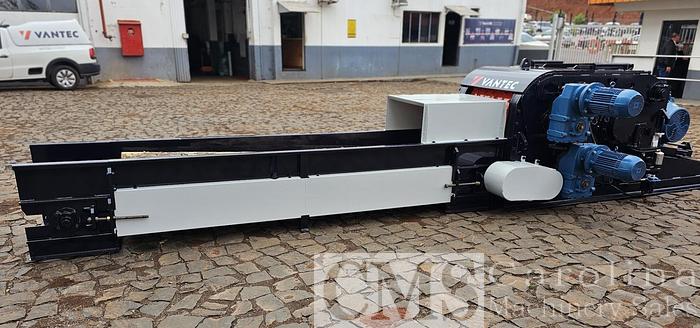

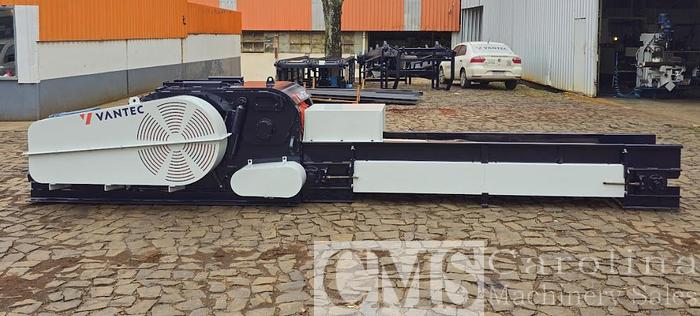

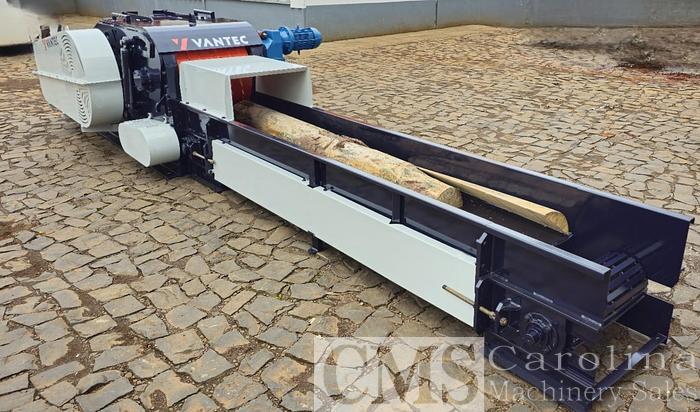

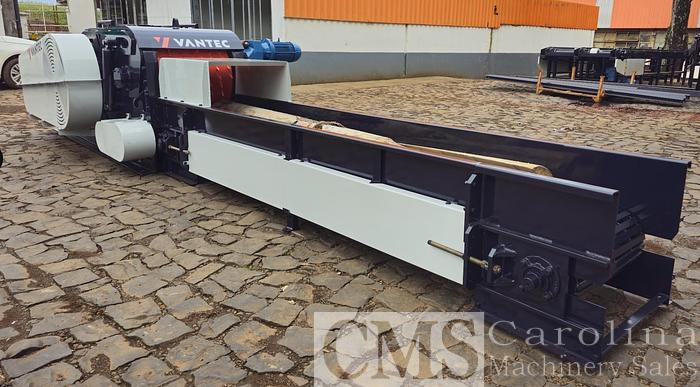

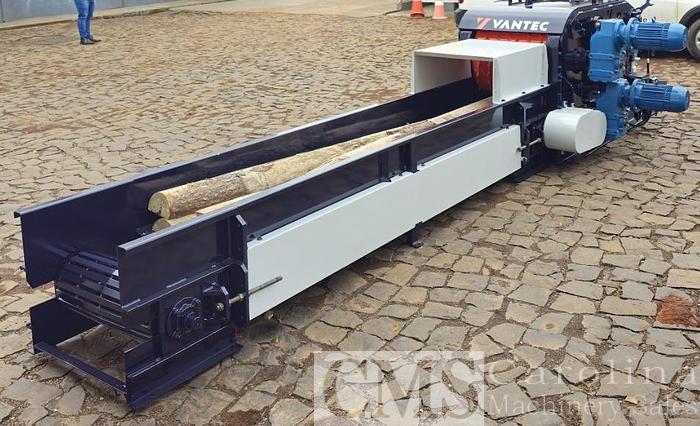

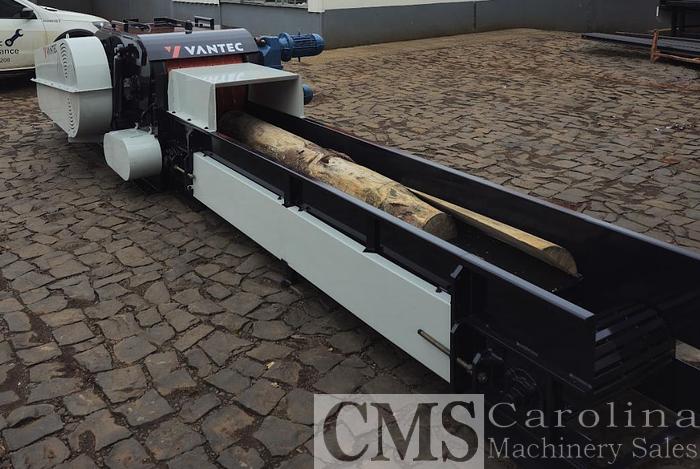

• Infeed conveyor length: 3 500 mm (included);
• Width: 1 850 mm;
• Height: 1 .150 mm;
• Overall length: 6 700 mm;
• Approximate weight: 4,900 kg.
