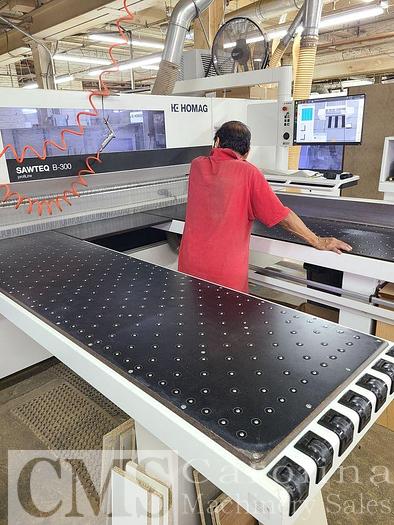

Homag Sawteq B300 Panel Saw

Homag Sawteq B300 38/38 Front Load Panel Saw

Specifications:

Working Capacity: 149.6'' (3800 mm) Rip cutting capacity; 145.6'' (3700 mm) Pull back capacity. Main saw blade projection 3.74'' (95 mm)

28 HP (21 kW) Main saw blade & 3 HP (2.2 kW) scoring blade; Scoring saw adjustment via "CADmatic" control.

- Saw Carriage

Forward speed 0 - 492 FPM (0 - 150 MPM) Saw carriage reverse speed 0 - 492 FPM (0 - 150 MPM).

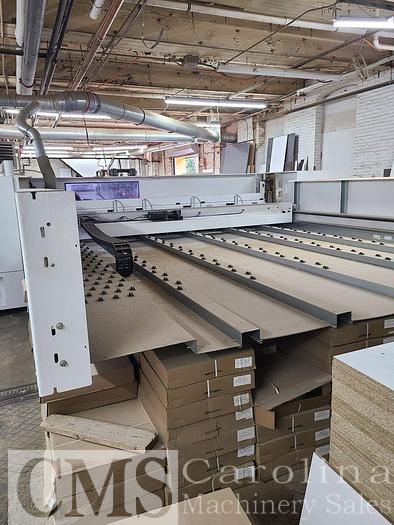

- Pusher Fence:

Electronically controlled overhead program fence with (6) 2-finger gripper clamps; clamps open up to 95mm (3.7").

Rack & Pinion drive on both sides, forward speed up to 296 FPM (90 MPM), return speed of 296 FPM (90 MPM).

- Operator & Machine Control:

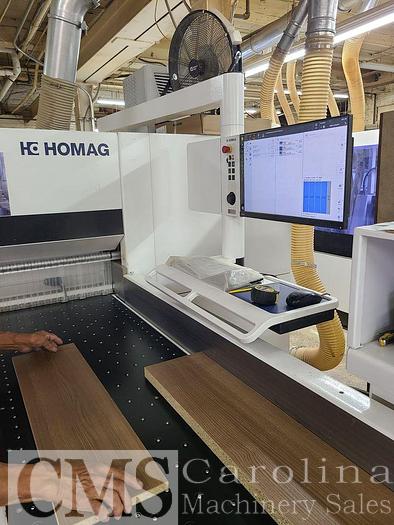

HOMAG "powerTouch2" PC Front-End with "CADmatic 5.0" Operating System "designed for industrial environments"; virtually unlimited cutting dimensions memory.

21" Full HD widescreen "Touch-Screen" monitor with multi-touch display, online operation from an office PC is possible. All mounted into dust sealed, air-conditioned control cabinet.

"Real-Time" Cutting sequences with a new 3D assistance graphic supports the operator and is intuitive to operate, which shortens the training period and reduces errors to a minimum. This results in efficient processes and steady output.

Simple handling via tapping and swiping (touch functions) with Quick change between the individual sections

CADmatic 5.0 is Tapio compatible & open for communication with other machines and software solutions.

The SAWTEQ B-300 "IntelliDivide" optimizing software is tapio-ready from installed software or directly

from the tapio cloud, allowing "IntelliDivide" to recognize the machine configuration of your saw and take it

into consideration for every optimization run in the cloud, completely automatically & you have the choice
