2019 Alpha Brush Victory LS-TS-Offset

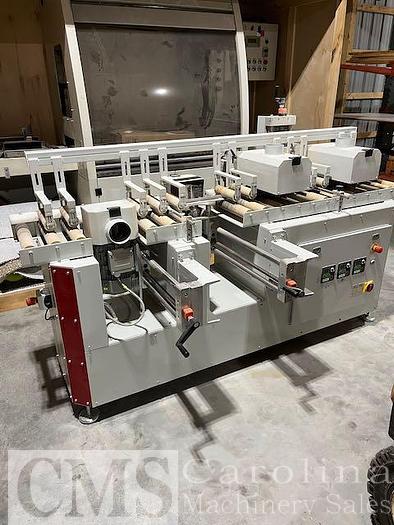

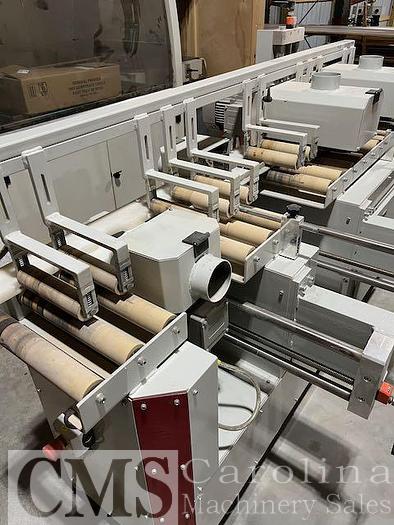

![Used 2019 Alpa Brush Victory LS-TS-Offset](https://i.machineryhost.com/3948ead63a9f2944218de038d8934305/5356b57e8fa2861d45dfdc7f022f227f/large-watermarked-used-2019-alpa-brush-victory-ls-ts-offset.jpg)
Specifications
Manufacturer | Alpha Brush |
Model | Victory LS-TS-Offset |
Year | 2019 |
Stock Number | 011145 |
Description
The VICTORY machine is a “heavy duty” linear sanding machine, that can be supplied with sanding drums or sanding disc’s depending on the application in the different industries.
The machine comes standard with motorized adjustment, but can also be supplied with 14” PLC control with memory, so different programs can be stored & the setup can easily be done.
The top/bottom drums comes in diameter of 400mm (16”) & side-heads comes in 300mm (12”) diameter, which will ensure better abrasive life.
When machine is supplied with disc’s, each disc is 300mm (12”) in diameter.
LS-TS- Offset
Heavy duty motorsEasy changing of abrasivesHeavy duty constructionExtra large sanding wheelsTiltable side-heads
Thickness of work piece: Min 0mm - max 150mm (6”)Conveyor Roller width: 300mm ( 12” )Conveyor motor: 0,75 kwSpeed of conveyor belt: 3– 15 m/min. ( 9-45 f/min)
