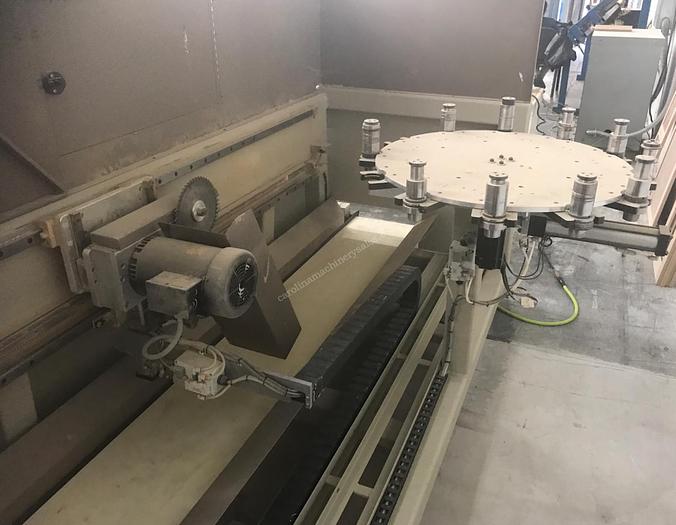

Accu-Systems 3S-2 Shape & Sand Machine

This machine is no longer used at the current facility except for rare projects. Manufacturer specs (to be confirmed) Multi Axes, Multi Function CNC horizontal machining center. Designed to perform (4) operations to produce cabinet door panels . The 3S will size, square, shape and sand cabinet door panels. Equipped with (2) shaping spindles, (2) 12 Position tool changers, (2) sanding units and (1) sawing unit. Shaping Spindles each has a 14 hp, 208/230V, 3 ph motor and utilizes HSK type tooling (3-Axis positioning) Tool Changers are post mounted and shaper units travel back for tool exchange. Sanding Units Each has a 3 hp, 208.230V, 3 ph motor Variable Spindle Speed from 600 to 1500 rpm (HSK Spindles) Manual positioning on the Z axis, travels in the X-axis with the shaping spindles, Sanding Spindles tilt manually from 0° to 20° with digital read-outs. Saw Unit 5 hp, 208/230V, 3 ph motor Designed to trim oversized panels to length prior to the shaping and sanding functions. Saw will handle up to 5" (width use) material in a single pass, multiple passes can be performed if material exceeds the 5" limit. Work Table/Surface 60" x 60" x 1" thick aluminum table is CNC controlled in the Y-axis and allows for radius work to be performed. Mounted on bridge above the table are (5) pneumatic hold-downs. PC Interface 15" high resolution industrial touchscreen PC for the operator interface to store, recall and run programs.
