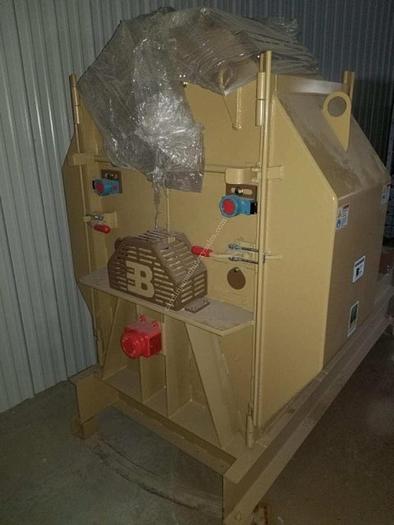

Bliss E-4420 TF Hammermill w/ Airlock

Location

Canada

Sold

Specifications

ManufacturerBliss
ModelE-4420 TF Hammermill w/ Airlock
Year2017
Stock Number007699
Voltage575V, 60Hz, 3Ph

Description

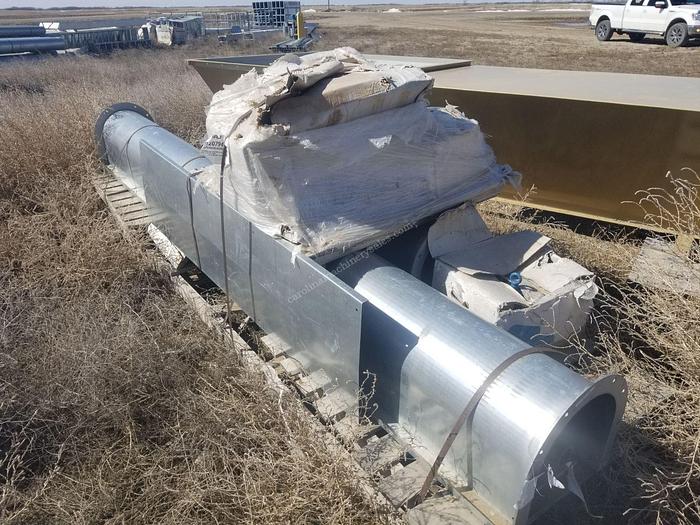

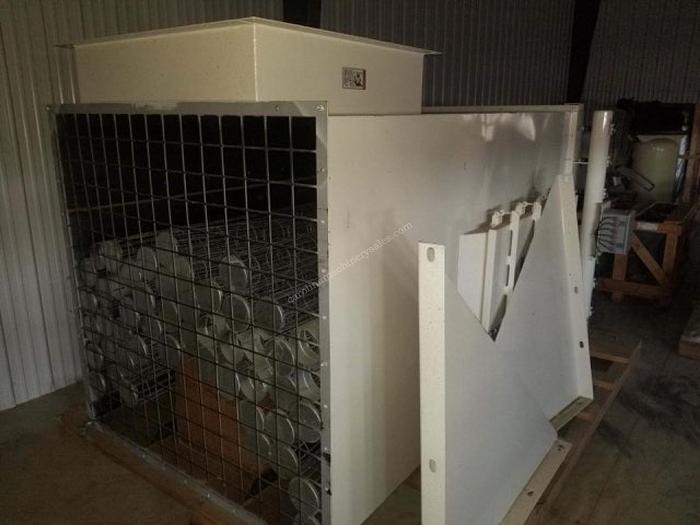

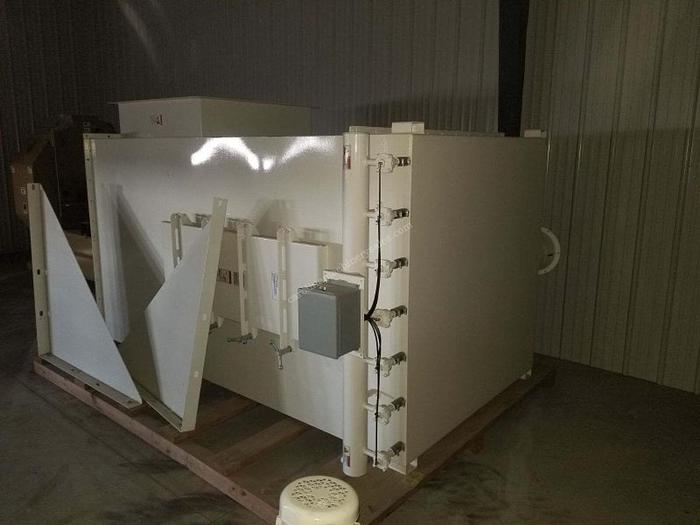

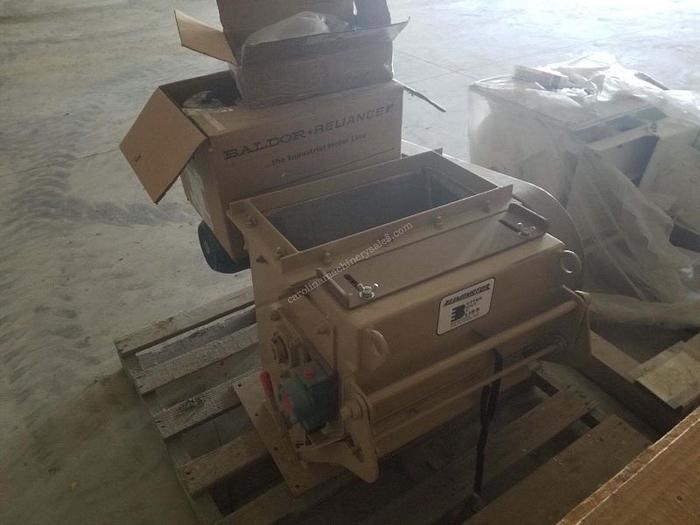

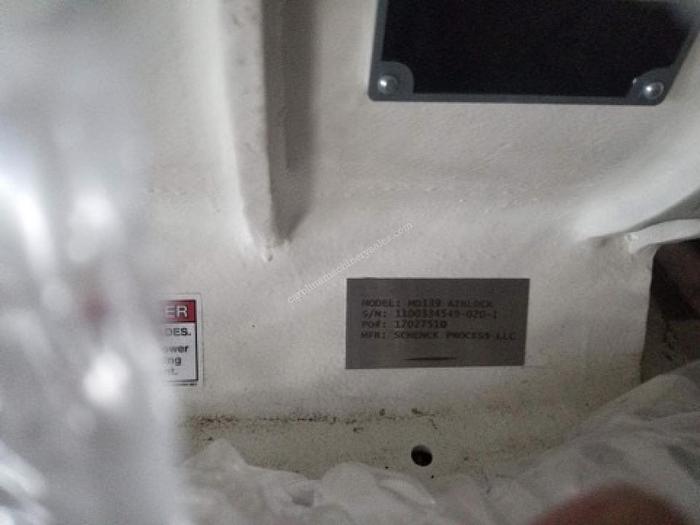

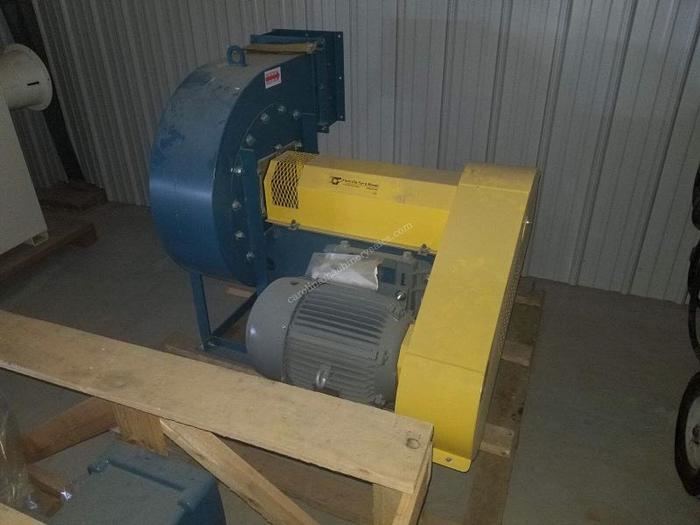

This system was purchased new and never installed.  Complete Bliss Hammer mill assembly package, see below. Bliss Eliminator Hammermill E-4420 TF Motor Base for 1800 RPM 100  HP Motor, 2400 sq inch screen area, top center feed inlet, deflector Directional Gate, (2) sets of screens 8/64", Quick change spring loaded shock absorbent screen carraiage, replaceable wear plates mild steel, 3-7/16" extra heavy duty spherical roller bearings, 1-set of hard-faced hole hammers 1/4" thick, 1-set of hardened hammer pins 1-1/4" diameter, 100 HP Motor, Vibration sense switch, Micro safety switch, Rubber vibration pads, 5-Row rotarty feeder with 10" diameter cups, ceramic stainless steel plate magnet HD 2.5" thick x 20" wide Exhaust Fan with 15 HP motor Bin Vent with 602 sq ft of cloth Plenum Chamber Rotary Airlock Model MD-260, machined rotor Screw Conveyor 12" Diameter, approx 12' long
