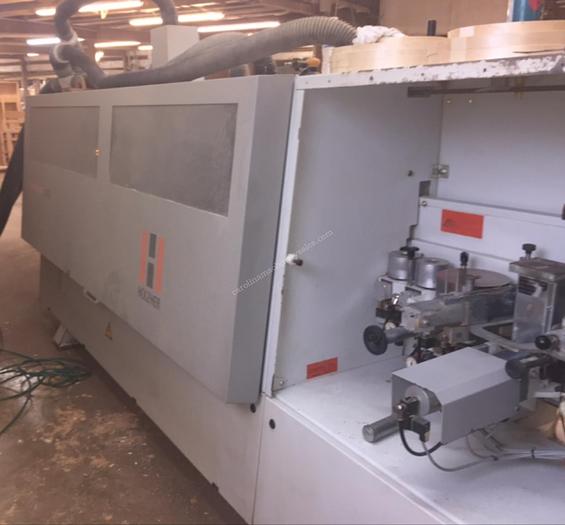

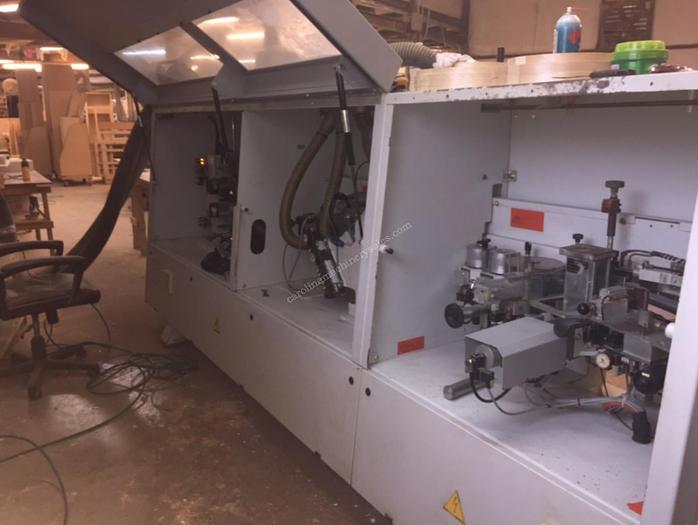

Holz-her Sprint 1315

Location

South, USA

Sold

Specifications

ManufacturerHolz-her
ModelSprint 1315
Year2011
Stock Number008071

Description

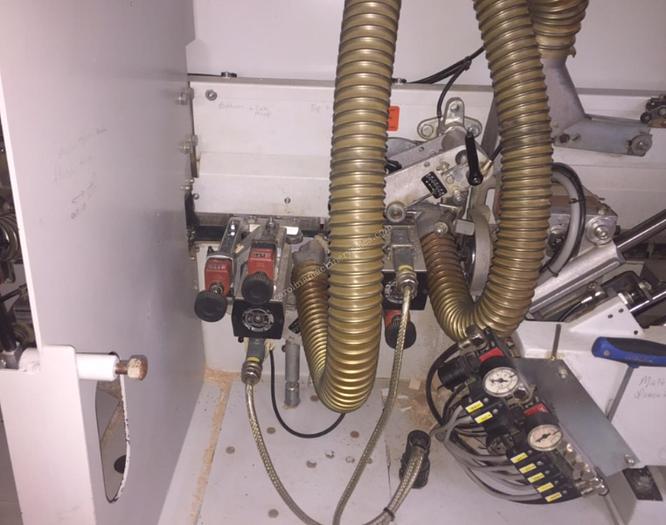

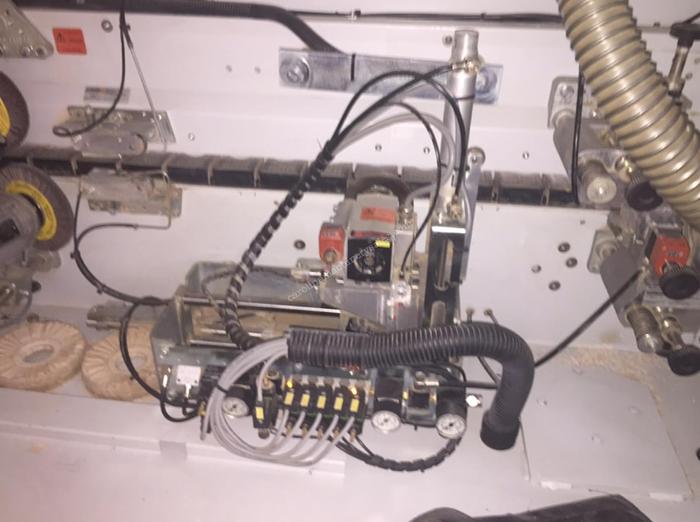

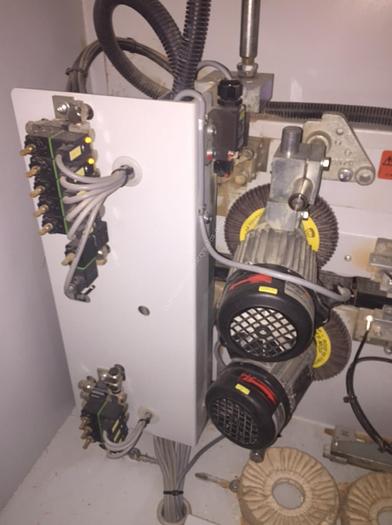

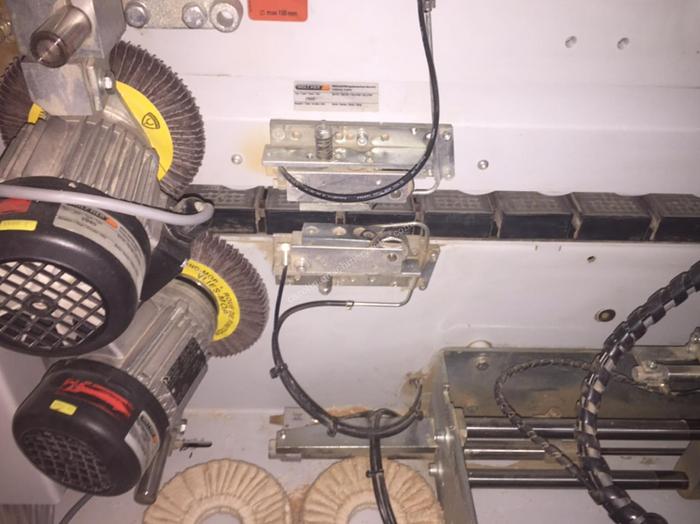

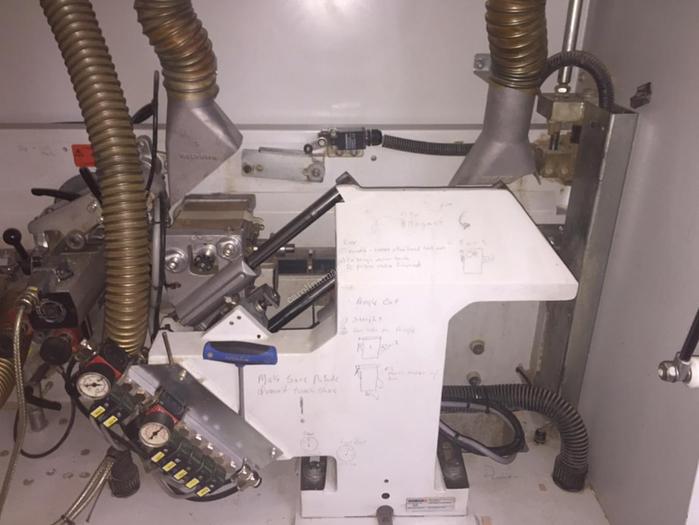

This machine is still used daily.  The seller is waiting to recevie his new machine. Manufacturer specs (to be confirmed) Max. 5/16" (8 mm) solid wood banding & 3 mm PVC cap. 1-3/4" max. panel thickness and 5-1/2" min. panel length Equipped with -- Cartridge glue system with cartridge hopper & "quick melt" feature, automatic magazine for coil, strip & solid edgebanding; HD guillotine for 3 mm PVC, glue applicator nozzle. Pressure section with (1) large dia. drive roller & (2) idle rollers, each w/individual pneumatic plunge & pressure control, powered 1st roller with electronic speed control synchronized with chain feed speed. Double motor end trim "1918" (0.5 HP - 18,000 RPM motor ea. 300 Cy HF motors), adjustable 0° - 10° for chamfer cuts electro-pneumatically. Top & Bottom flush trim unit (0.8 HP - 300 Cy HF motors 18,000 RPM Motor ea.), SIKO digital readouts, tilts 0° - 15°. Top & bottom flush fine & radius trim unit (0.8 HP - 300 Cy HF motors 18,000 RPM Motor ea.), bevels 0°- 15°, SIKO digital readouts. Corner rounding unit 1 motor , maximum speed 8 meter/min. Top & bottom buffing unit  (0.25 HP - 2,600 RPM ea.), tilts 0° - 5°. Feed speed 8/16 MPM (26 & 52 FPM)
