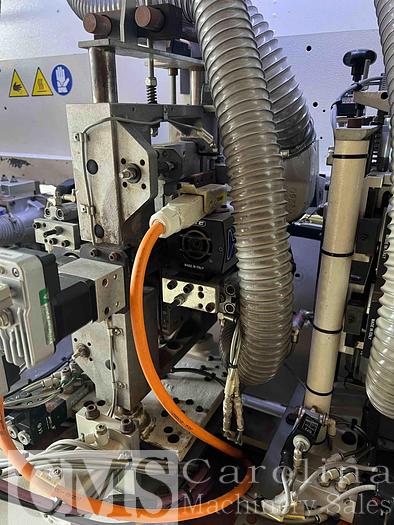

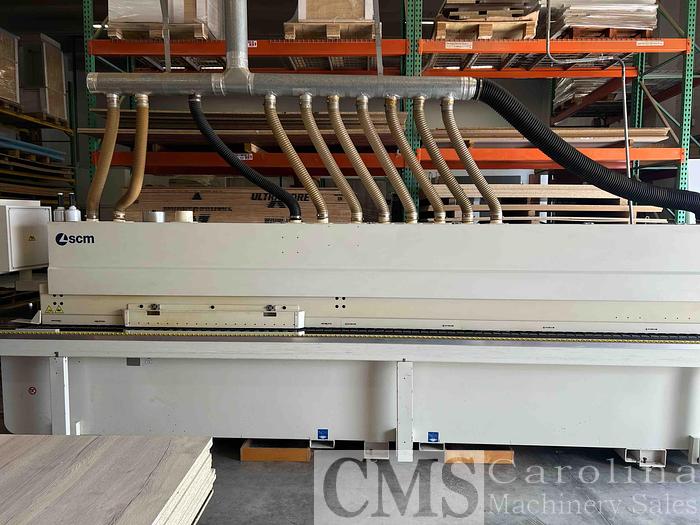

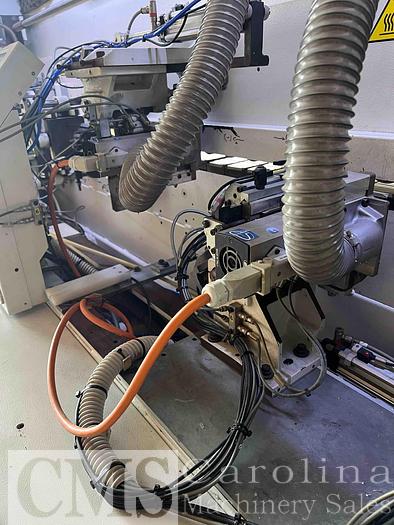

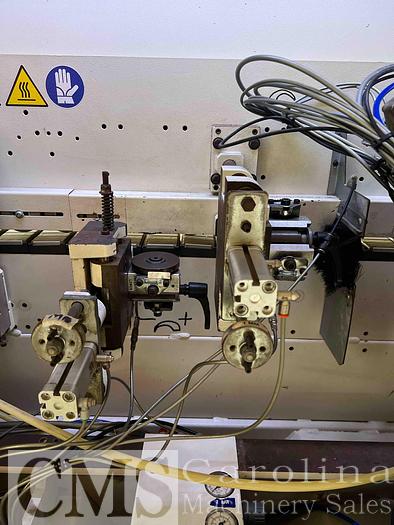

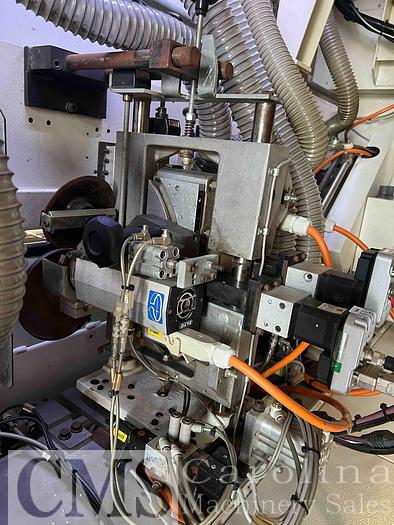

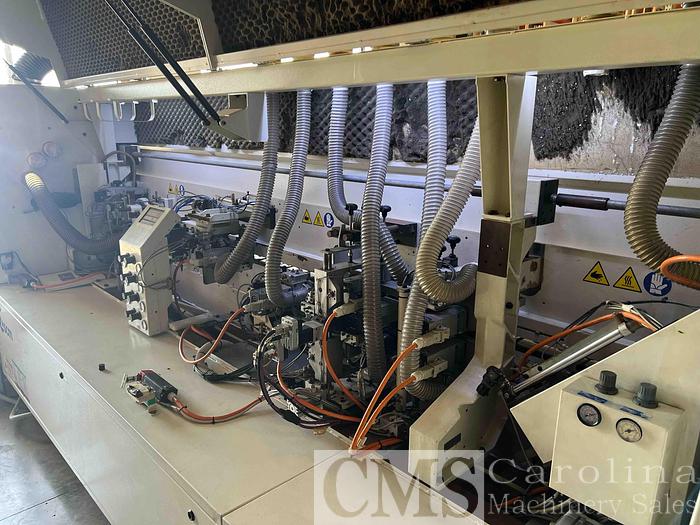

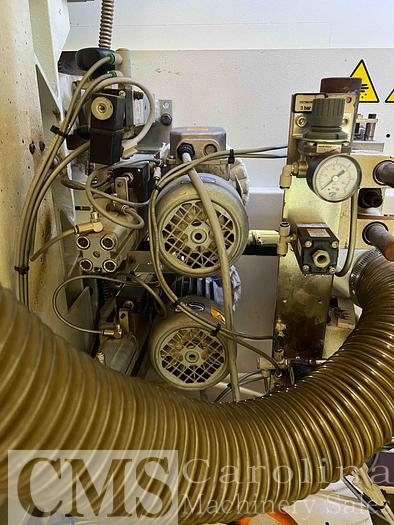

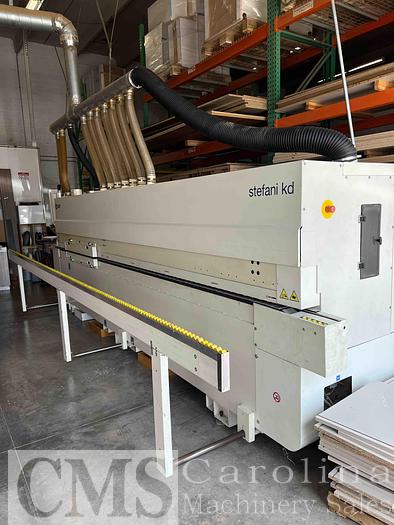

2017 Stefani KDR Single Sided Edgebander
Specifications
| Manufacturer | Stefani |
| Model | KDR Single Sided Edgebander |
| Year | 2017 |
| Stock Number | 011114 |
Description
Automatic single sided edgebander designed to be used for edgebanding straight vertical profiles with coiled material (veneer and PVC) and with strips (high-pressure laminate and solid wood) with a maximum thickness of 12mm.
Machine Base
The machine base is a rigid, ribbed steel structure and is designed to provide maximum support for the working units. The ribs provide stability and, at the same time, provide openings in the base to facilitate removal of the chips/dust.
Capacities And Speed
Edgebanding thickness: .4mm - 12mm (.016-1/2”)
Guillotine capacity: 3mm
Feed speed: 33-66 ft/min.
Panel height: 3/8” min – 2 3/8” max
Minimum panel length: 5 1/2”
Minimum panel width: 2”
Minimum distance between panels: 24”

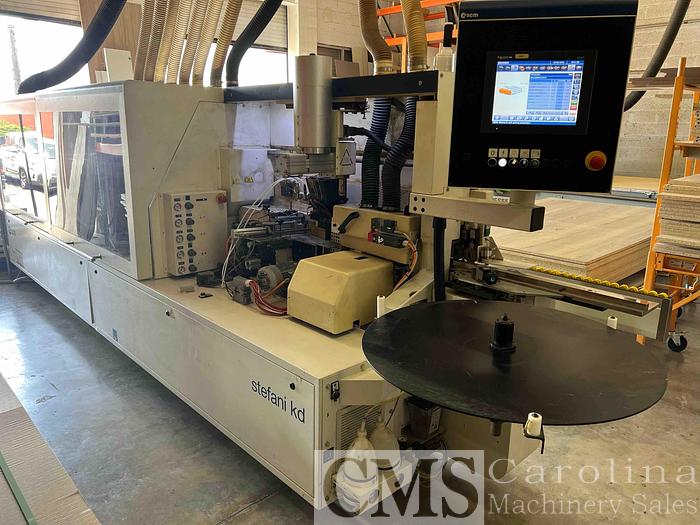

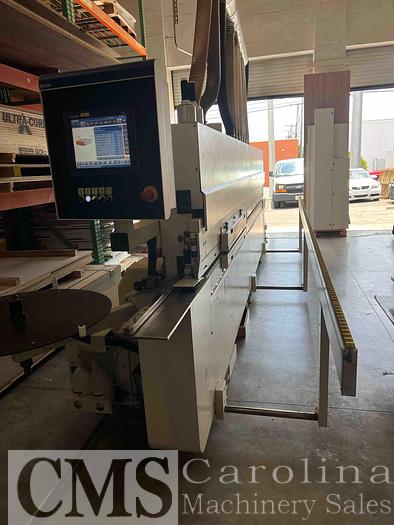

Startouch Controller
The Stefani KD comes equipped with the new "Startouch" controller. This controller features a 12" touch screen display. Capable of storing 100 programs, 6 at the touch of a single key. Color graphic display of all the working units.
