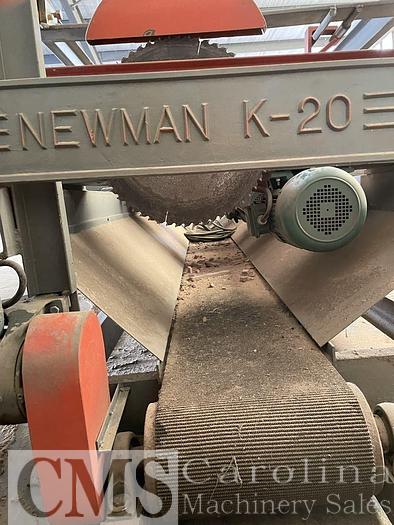

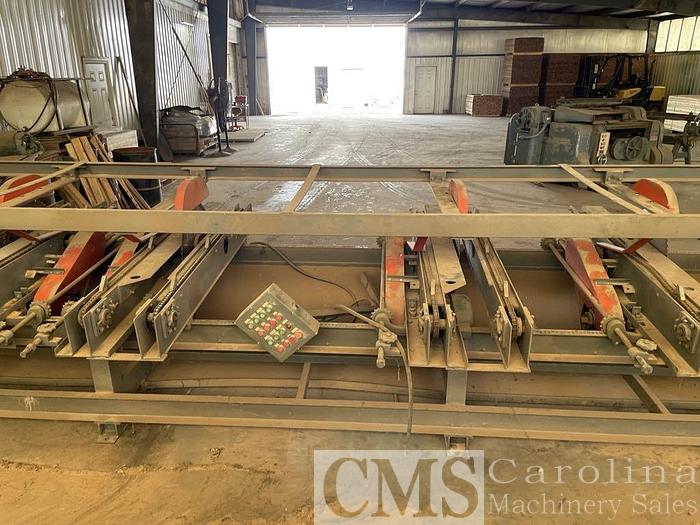

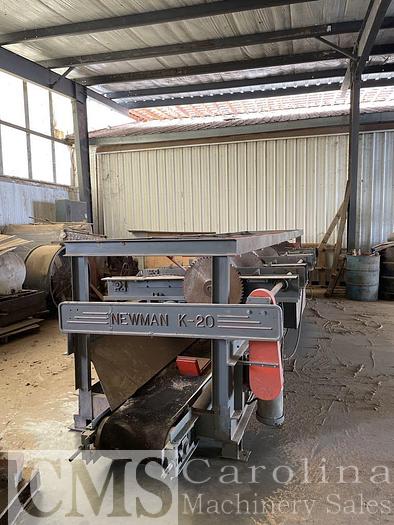

Newman K-20 End Trimmer

Newman End Trimmer K 20

MAXIMUM CUT LENGTH: 20′ (6.1 m) 20′ (6.1m)

MINIMUM CUT LENGTH: 6′ (1829 mm)

4′ (1219 mm) 6′ (1829 mm)

MAXIMUM CUT THICKNESS: 7″ (178 mm) 7-1/2″ (190 mm)

ACCURACY: +/- 1/32″ (0.8 mm) +/- 1/32″ (0.8 mm)

FEED SPEEDS: 20 to 60 FPM (6.1 to 18.3 m/min.)

FEED CHAINS: #60 roller chain #60 H type mill chain

FEED DRAGS: 6 at 22″ (559 mm) intervals 6 at 22″ (559 mm) intervals

SAW BLADES: 22″ (559 mm) carbide, 60 teeth 1-1/2″ (38.1 mm) bore, 10 gauge (3.4mm) 2

FLOOR SPACE: 20′-8″ (6.3 m) x 6′ (1.8 m) 20′-8″ (6.3 m) x 6′ (1.8 m)

WEIGHT: Approximately 3500 lbs. (1590 kg) Approximately 3500 lbs. (1590 kg)

1`fixed saw and 4 movable saws 7.5HP each

new electrical starters

1.5HP variable speed drive
