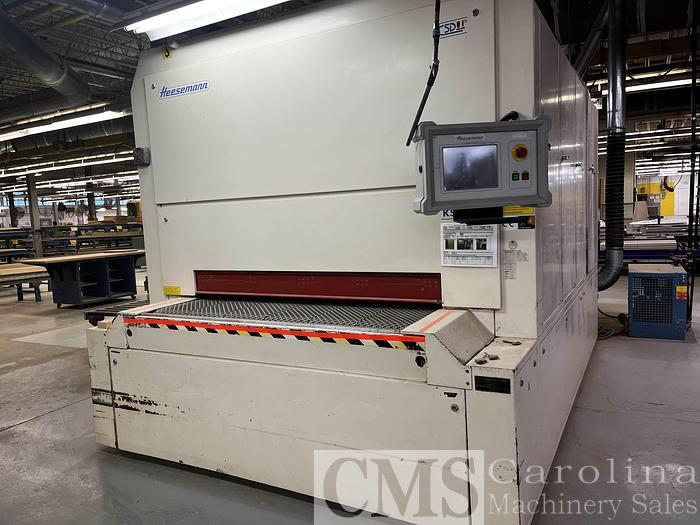

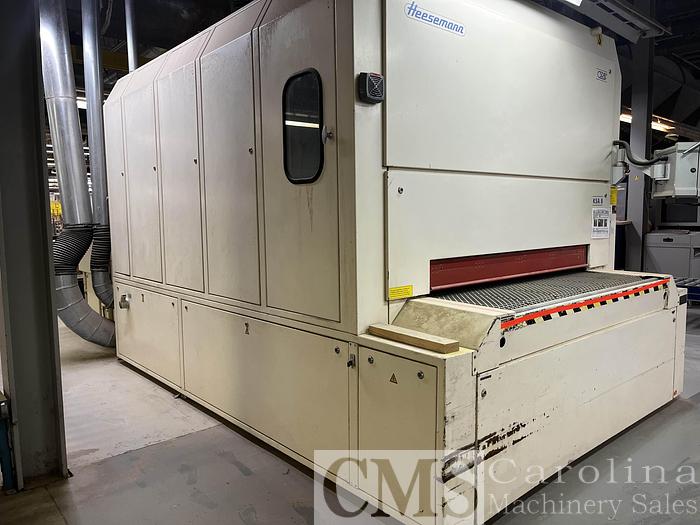

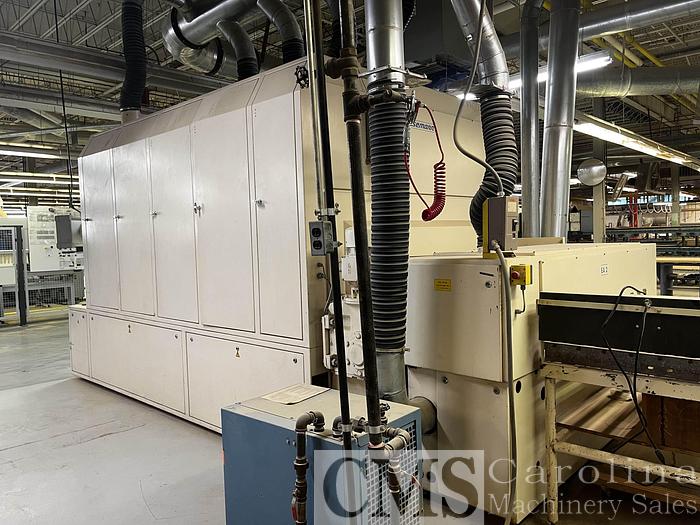

2000 Heesemann KSA 8 4 Head Sander CLLL 1600mm

• 1 CROSS SANDING -- BELT DIM  6,600MM  X150MM

• SANDING SPEEDS 12 and 24 M /sec.

• DRIVE POWER  15KW.

• 3 LONGITUDINAL SANDING BELTS UNITS

• BELT DIM----- 3250MM X 1650MM

• SANDING SPEED  10 and 20 M /sec

• DRIVE POWER  15KW

PRESSURE BEAM WITH COMPUTER CONTROLLED SELECTIVE PRESSURE REGULATION SYSTEM.

 WITH INFINITE PRESSURE MATCHING OF INDIVIDUAL PRESSURE ELEMENTS FOR OPTIONAL MULTI TRACK FEEDING. 16MM CONTROL ROLLER SPACING , WORK PIECE TOLERANCE COMPENSATION UP TO A MIN. OF 2MM.    THE CORRECT POINT IN TIME FOR THE DEPLOYMENT OF THE PRESSURE BARS IS DETERMINED AUTOMATICALLY BY AN ELECTRONIC LINE CONTROL IN DEPENDENCE OF THE FEED SPEED.

Air dryer

BRUSH CLEANING "EA2" UNIT

CENTRALLY ADJUSTABLE IN HEIGHT INCLUDING EXHAUST HOOD AND PRESS ON ROLL.

• DIAMETER----------------------------------------------- 220MM

• DRIVE POWER---------------------------------------- 2.2KW

• BRISTLE TRIMMING -------------------------------- FIBRE

• VOLTS---------------------------------------------------- 400V-- 50 C/S
