2005 Wemhoner Variopress Basic 1000 Plus

Wemhoner Variopress Basic 1000 Plus

Model KT-MB-28/MB/15-240

Single Daylight Upstroke Hydraulic Press

Max. Opening 2,540mm X 1250mm ( 100” X 49” )

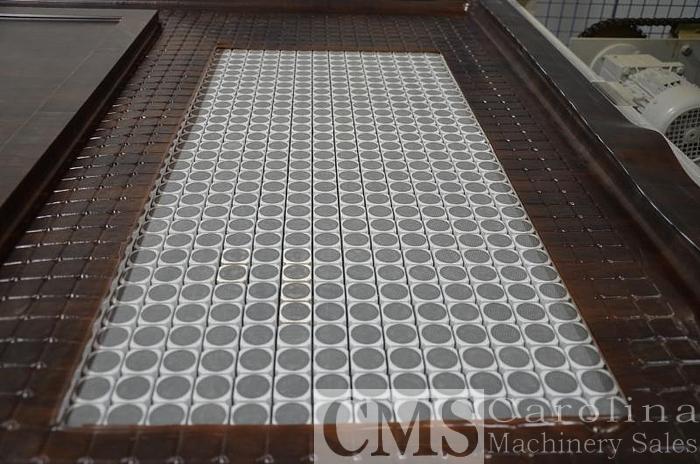

2 Trays Pin System

3D Application Foil Types PVC, PET, PP,ABS, Veneer And HPL

Total Press Capacity 240 Tons

Top/Bottom Heated Platens

Working Height Approx. 900 mm (35.4”)

Daylight Opening 150mm (5.9”)

Upper Platen Heated by Thermal Oil Circulation

6 Cyclinder 125mm ( 4.9”) Diameter

Total Press Pressure 2,400 KN

Two Tray System with Pin System

Tables arranged in over-under Configuration with Scissor Lift entering and exiting press on the same End

Vacuum Pump and Vacuum Tank

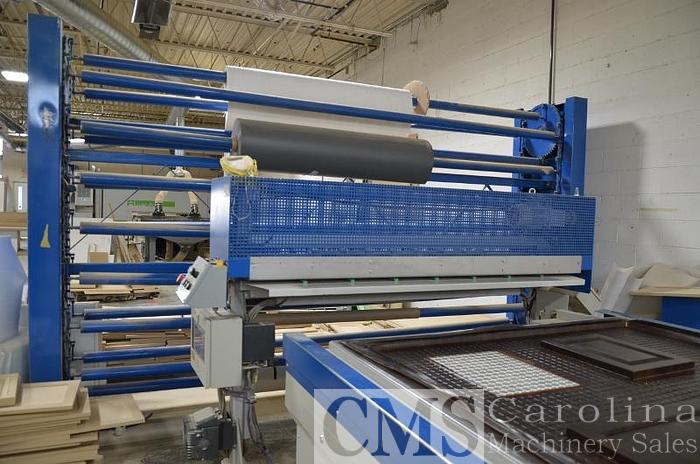

Foil Roll Storage Carousel ( Paternoster) for Vinyl Rolls

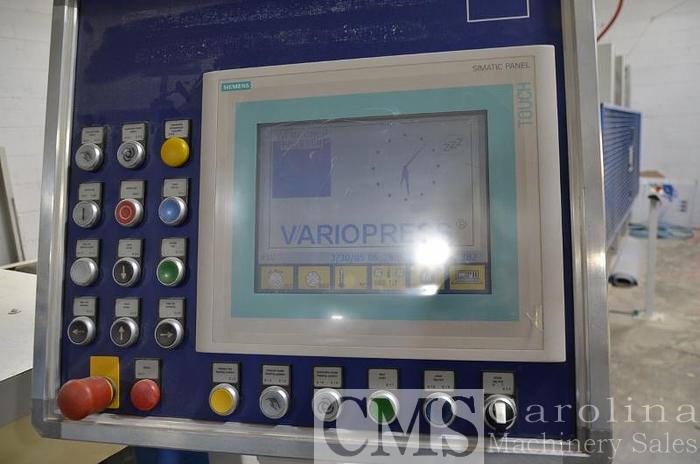

Programmable Logic Controller PLC Model Siemens Simatic S7 Setting Parameters and operation of Pin System

Year 2005 AS NEW CONDITION

460 volt 3 phase
