Heil 10.5x32 Drum Dryer and Chip Plant

Heil 10.5' x 32' Triple Pass Drum Dryer

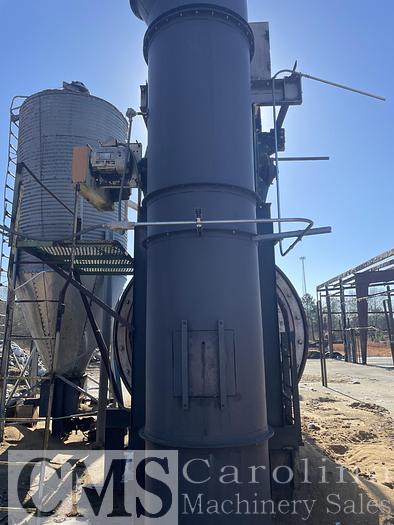

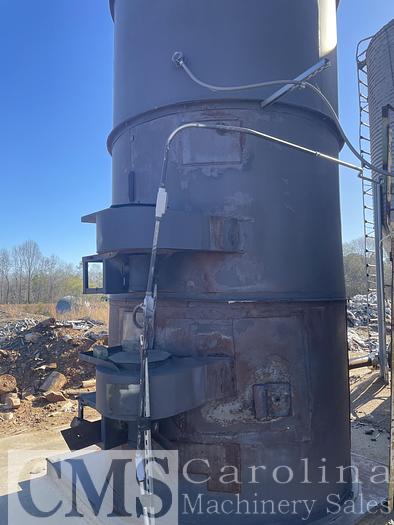

  1. Jackson Harvester Burner 24 million BTU

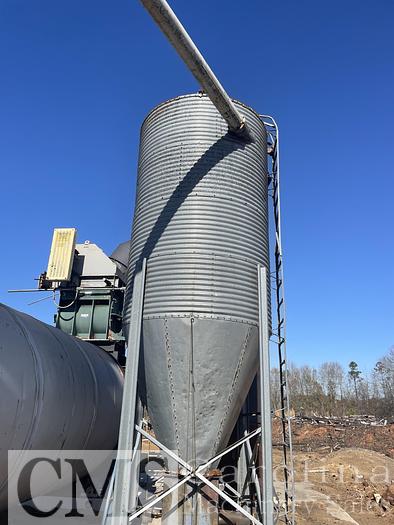

  2. Fuel Bin

  3. Pipe and fan from fuel bin to burner

  4. Air lock on dryer

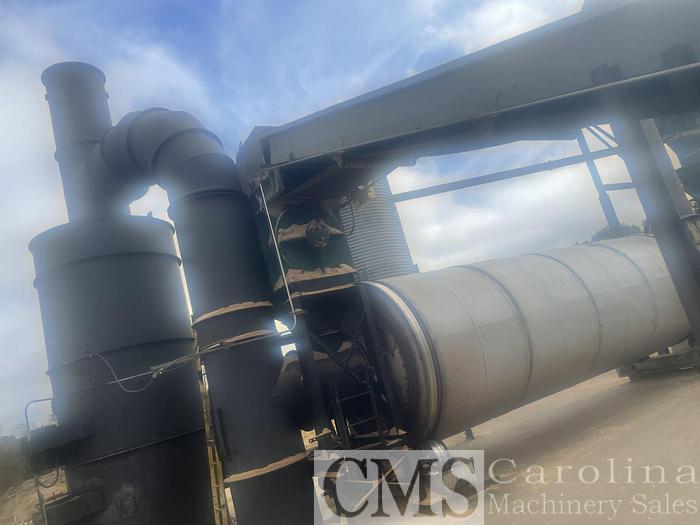

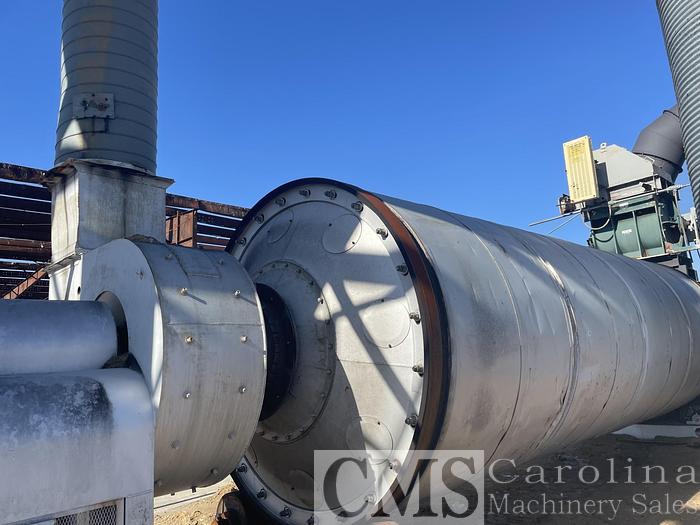

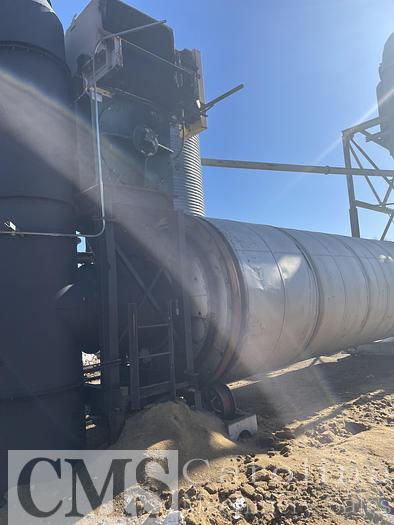

  5. 8 X 24 3 pass dryer

  6. Trunnions

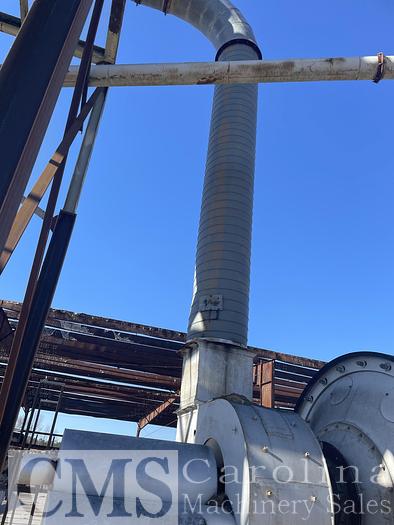

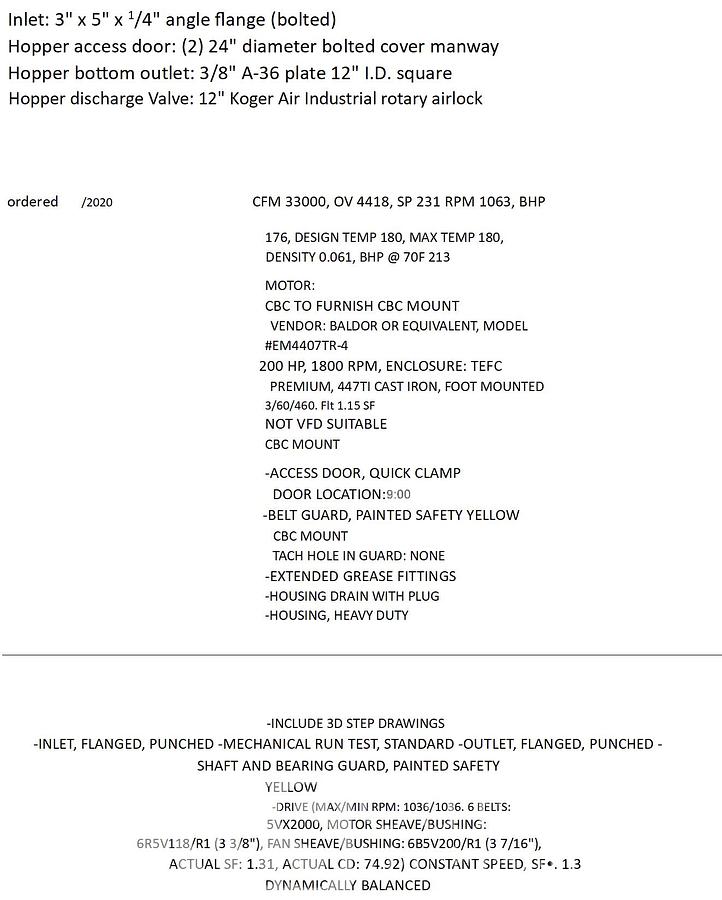

  7. Fans to dryer

  8. Pipe to cyclone

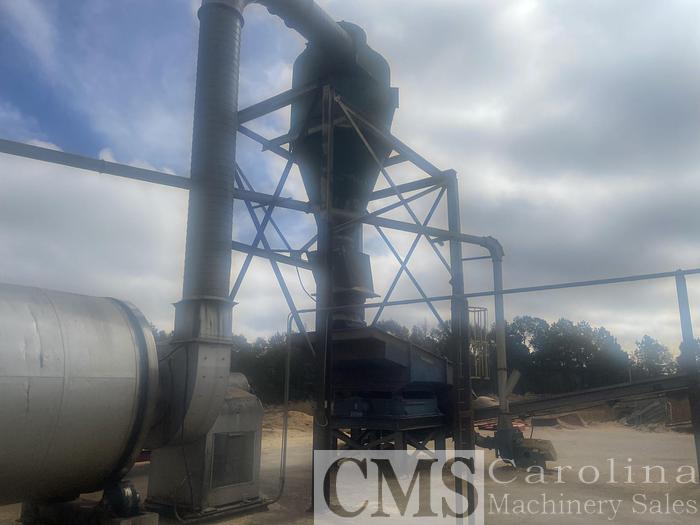

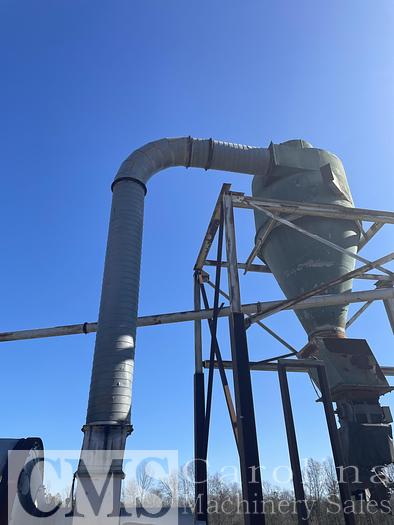

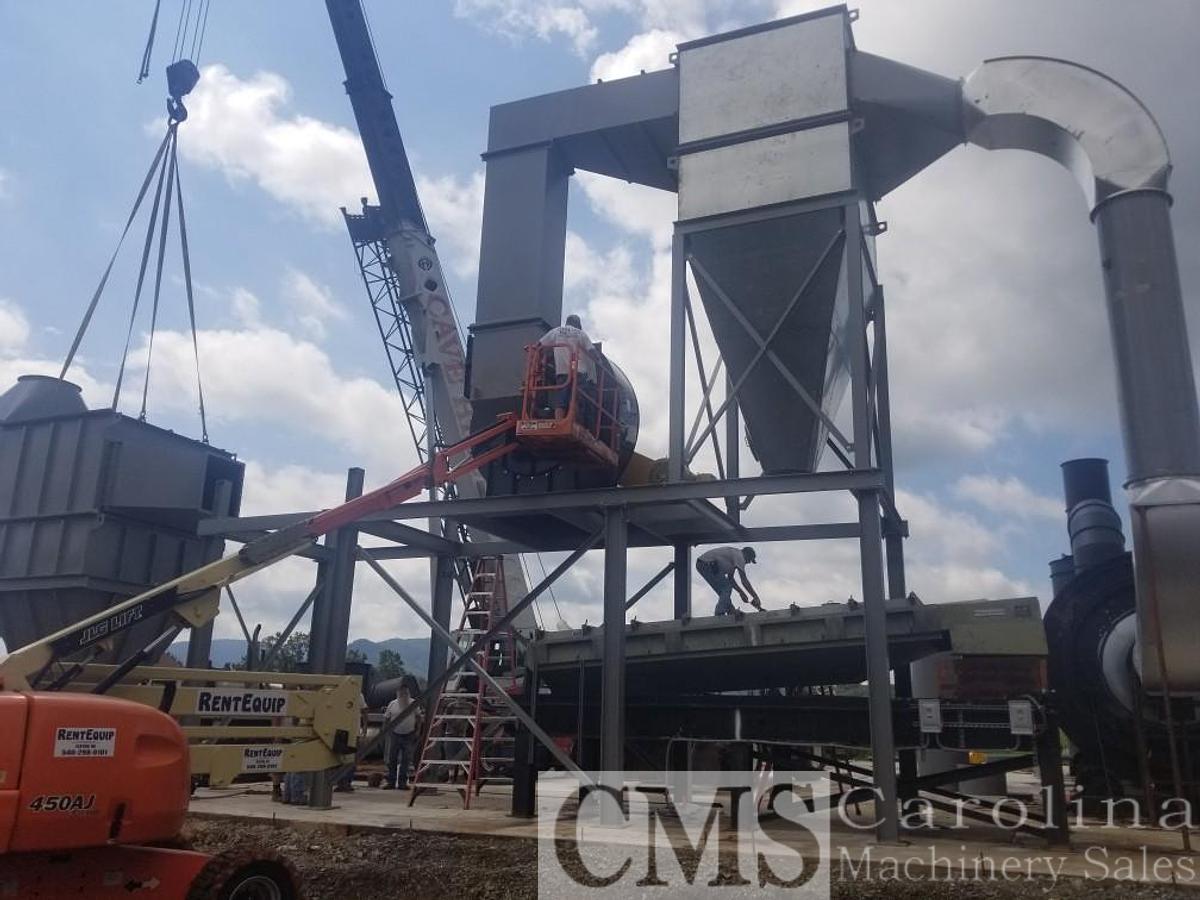

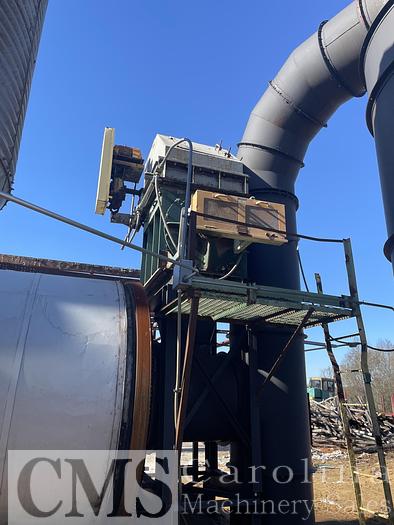

  9. Cyclone

10. Pipe to fuel bin

11. Fan moving sawdust to fuel bin

12 Hog with 200 HP motor

13 Dust collection system
