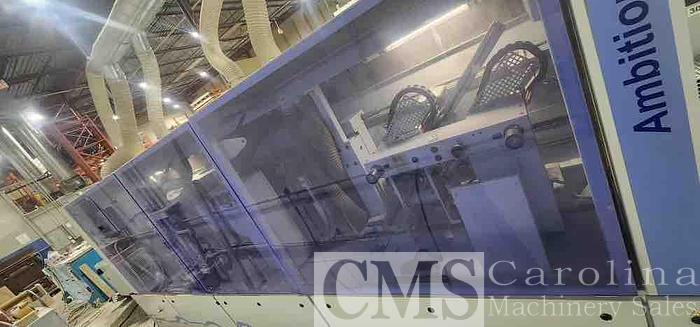

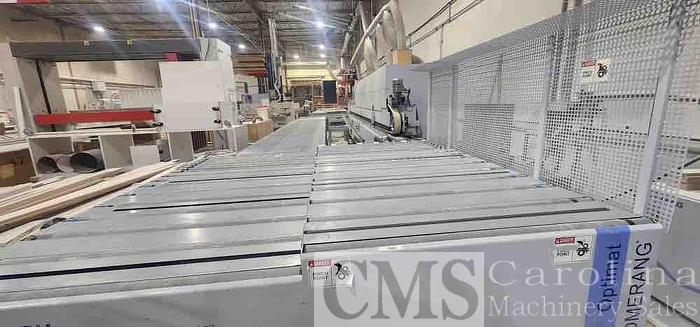

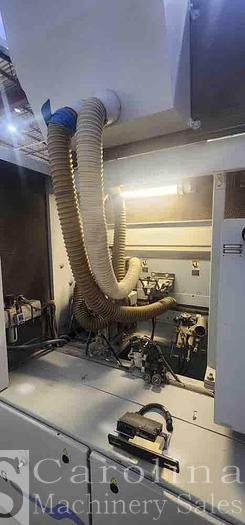

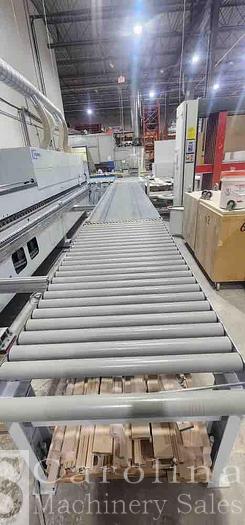

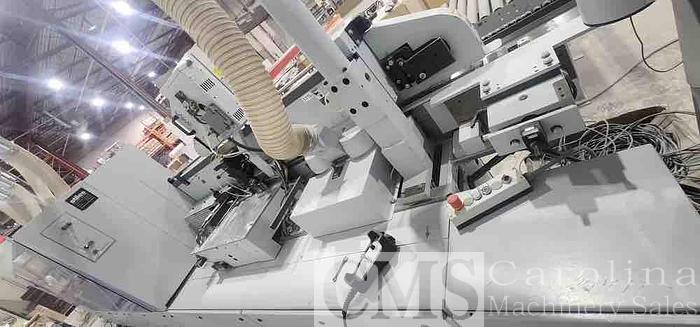

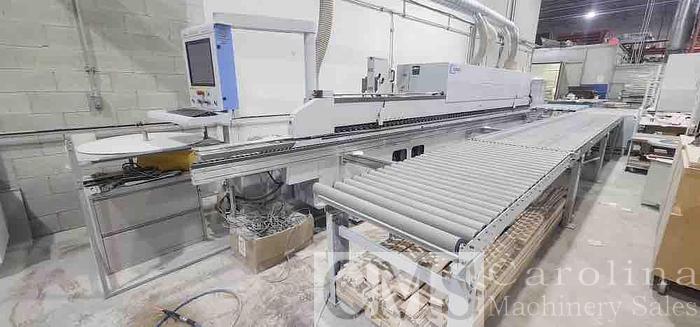

2012 Homag Ambition KAL 210 Edgebander

• Min. panel height 0.47 inch
• Max. panel height 1.57 inch
• Min. edge thickness 0.01 inch
• Max. edge thickness 0.24 inch
• Max. forward feed speed 82.02 ft/min
• Top pressure with rubber belt
• No. Panel Sizing / Milling units 2

Pre-milling unit

• Lamps to preheat the side of the panel
• Edge coil magazine
• Gluing system
• glue pot for EVA hot melt glue
• premelter for EVA hot melt glue

• QA65
• Roller set to press the edge
• no. pressure roller 7
• with positioning by NC

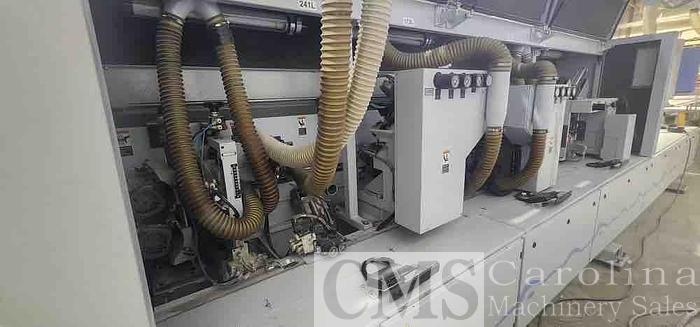

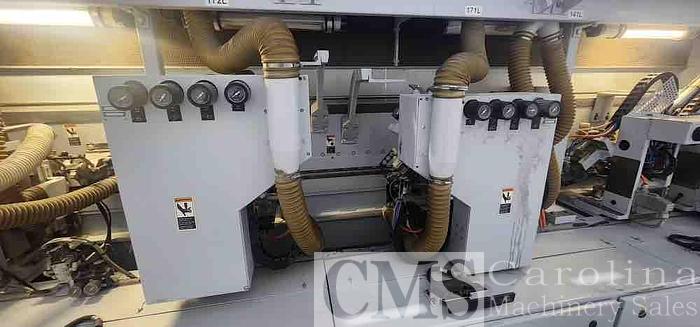

No. Edge Processing Units 6

First Processing Unit

• End trimming Constructor model HL81
• no. motors 2
• with positioning by NC

Second Processing Unit

• top and bottom rough trimming
• no. motors 2
• with positioning by NC

Third Processing Unit

• Multi Function trimming and corner rounding
• Constructor model
• FK11
• no. motors 2
• with positioning by NC

Fourth Processing unit

• edge scraping
• with positioning by NC

Fifth Processing Unit

• glue scraping
• with positioning by NC

Sixth Processing Unit

• buffing
• no. motors 2

Spray unit

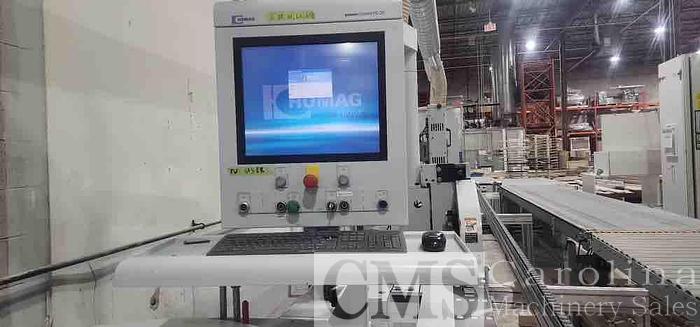

Control system

Power Touch
