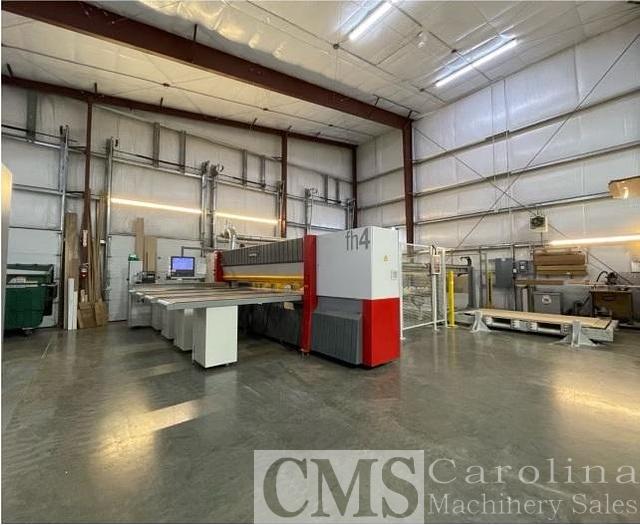

Schelling FH-4 Rear loading

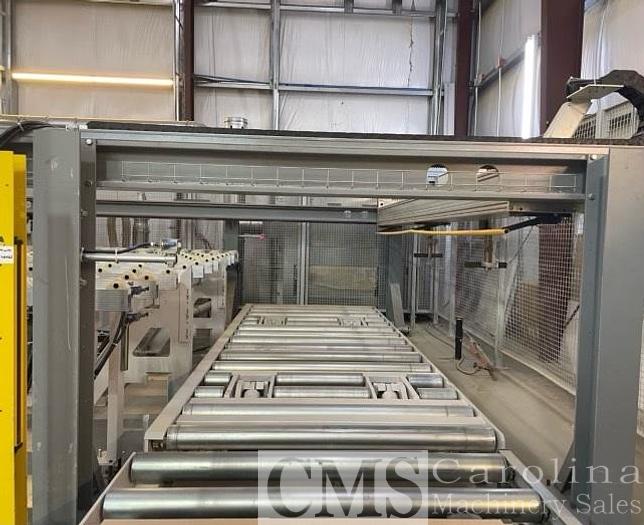

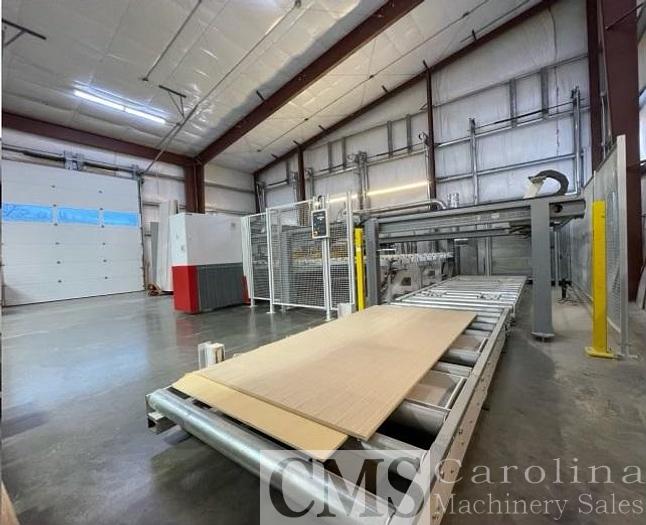

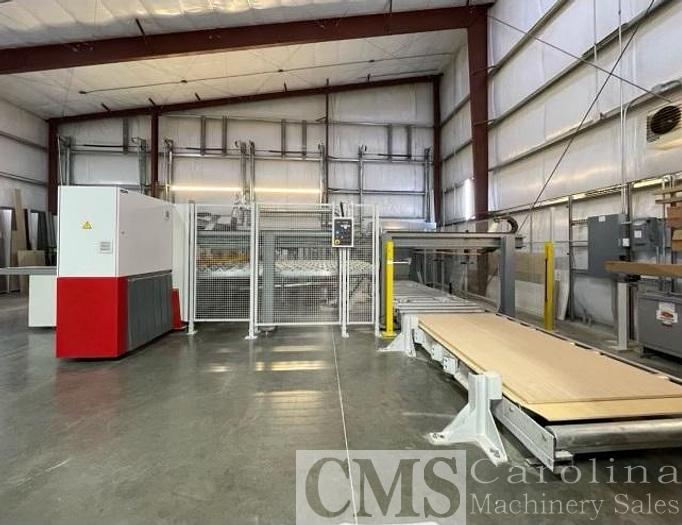

Panel Beam Saw - With rear lifting table

Numerical Control MCS Evolution

Software Windows XP

Rear pusher

With No. 8 clamps / grippers

Max. cutting width (mm) 4250

Useful stroke of the pushing system (mm) 4300

Max. blade projection (mm) 95

Max clamps opening (mm) 90

Scoring Unit (max. diameter saw) mm 300

Main Sawing Unit (max. diameter saw / power) mm 350 - Kw 15

Adjustable speed of the saw carriage (m/min) 5 - 120

No. 4 Front supporting tables with Air blowing system

Total power (Kw) 21
