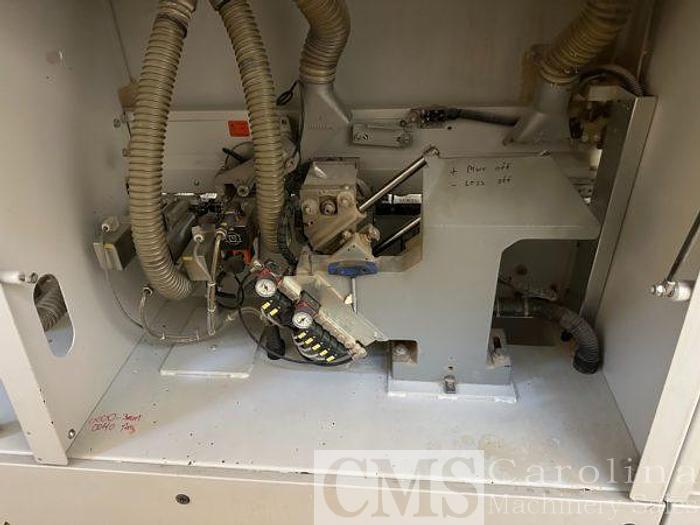

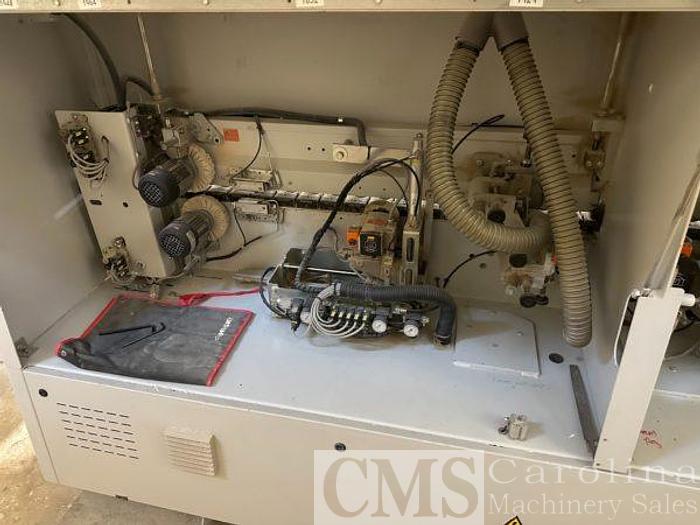

2008 Holz-her 1317 Edgebander

Overall Length: 19.37′

Workpiece thickness min./max (inch): 1.77″

Edging thickness(inch): 0.01-0.12″

Edging height max (inch): 1.97″

Cut edging length min. (inch): 13.78″

Workpiece with min. 9inch): 2.36″

Workpiece length min. (inch): 7.09″

Feed Speed (m/min). 8

Pre-milling cutter unit (m3/h): 900

Flush trim: 280

scraper unit: 280

static underpressure: –

pre-milling cutter unit: 1490

flush trim unit:1650

Compressed Air (bar): 6

Features:

The SPRINT 1317 series is equipped

as standard with the 1906M cartridge glue

application system

-Fast change of glue

-Ready to start in 3.5 minutes

-One of a kind – the 1905 MULTI-SYSTEM

-Advanced Glue Application System – for a secure joint

-Profile trimming at the press of a

button

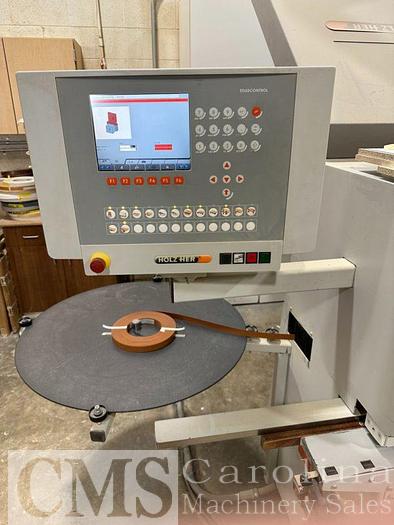

HOLZ-HER Control System –

high standards safeguard it for the future

■ Powerful PLC control for rational set-up and operation.

■ User friendly interface – all information in plain text
