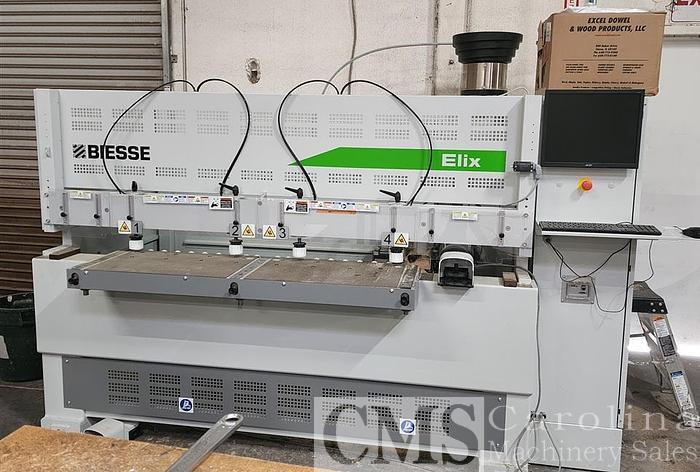

2021 Biesse Elix K3

Max. Width: 1300 mm

Thickness: 10-40 mm

Min. Depth: 120 mm

X Axis: Stroke: 1300 mm

Head Movement Speed: 40m/min

Z Axis Stroke: 40 mm

Boring Unit:

Rotation Speed: 6000 rpm

Depth: 30 mm

Max. Bits Diameter: 12 mm

Manual Adjustment of Boring Depth

Dowel Insertion Unit:

The Smart-Shot Dowel Insertion Unit

2 Sensors Prevent Dowel or Glue Misfire.

Standard Dowel Dim:  8x30mm

Max. Dowel Projection: 14 mm

Dowel Unloading System

Glue System

Glue Tank Capacity: 8 Lt

Max. Glue Density: 900 cps

Glue Electronic Proportioning

Equipped with Glue Injector Sensor

PC Driven Numerical Control:

Personal Computer

512 MB RAM Memory;

CD & HD 80 GB

USB port

17" LCD Monitor

Keyboard & Mouse

Windows XP PRO
