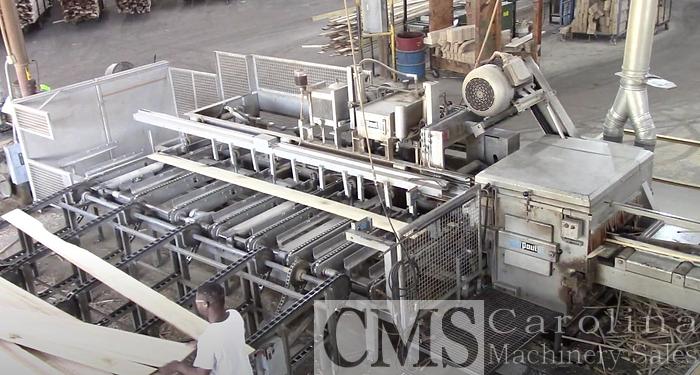

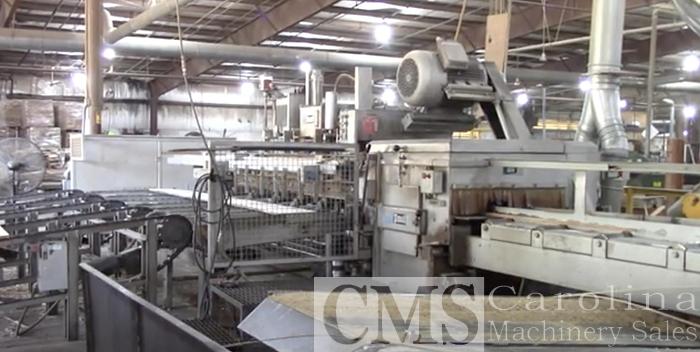

Paul AB920 Rip Saw with Infeed & Outfeed

Paul AB920 Rip Saw

Scanning

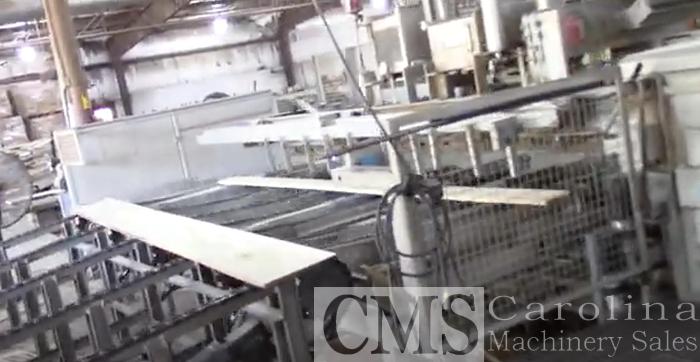

Fenceless Infeed

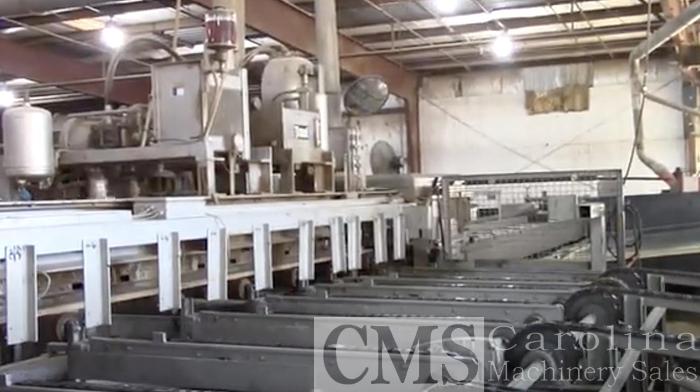

Infeed & Outfeed (not including decks)

The machine has one fixed and 2 moving blades.  The minimum distance between the moving blades is 44 mm (1.73"). The maximum distance between the moving saw blades is 210 mm (8-1/4").

The machine is designed for incoming boards with the following min./max. dimensions

Length: 4' - 16'

Width: 2" - 19"

Ripped widths: 1.75" - 8"

Thickness: 1" - 2"

480 Volt, 60 hz., 3 phase electrics

75 HP main motor

Automatic edging separation after the saw

Feed speed up to 300 fpm

Fenceless infeed system with automatic skewing capability

16 width sensors on the infeed system
