2000 Shoda Maxxim

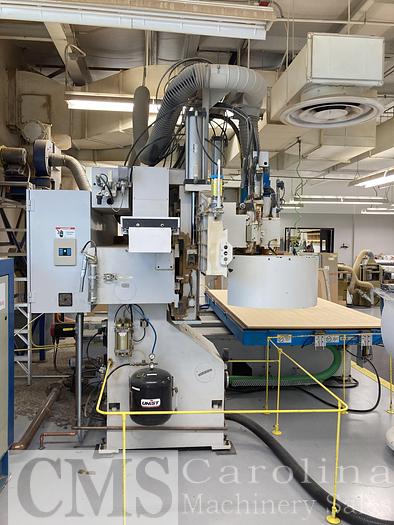

122" x 63" Moving table w/extra hard phenolic surface, single vacuum zone, Extra Heavy Duty fixed gantry bridge with double rectangular guideways.

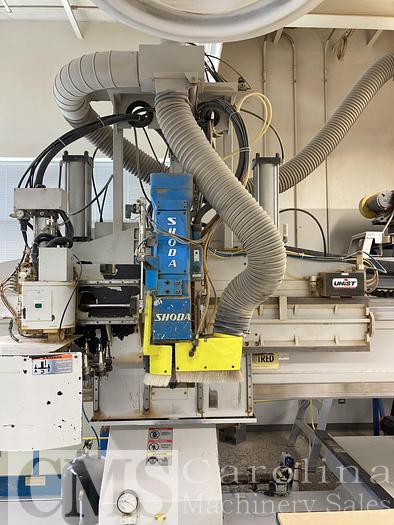

• Equipped with: (1) 16 HP Router, programmable spindle speed 1000 to 18,000 RPM (air/oil mist lubricated), powered by electronic AC inverter w/dynamic spindle braking; routers have 16-position Automatic Tool Changer system for "BT 30" tool holders.

• Features & Specifications: Closed loop Servo drive system w/precision ground ball screws for positioning, 1,180 IPM max positioning feed rate on X- & Y-axis, max machining feed rate 590 IPM; X-axis travels 133", Y-axis table travel 73", and Z-axis 10"; extended gantry bridge for full 10' x 5' table coverage, all axes ride on extra large precision contour linear Guideways.

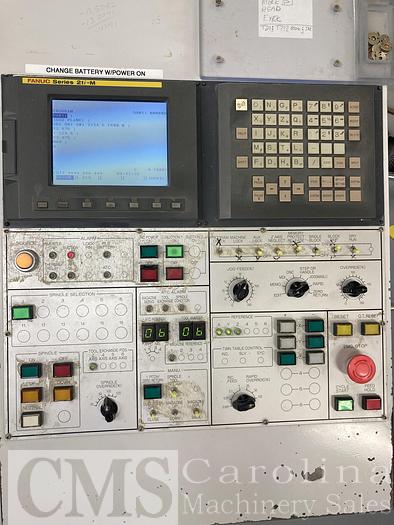

• FANUC "21 M" Series computer control system, built into free-standing control console and with FANUC 1 GB hard drive Data Server, 80 meters program memory, PCMCIA slot, full keyboard and 3.-1/2" floppy disk drive.

• Features: (3) Axes simultaneous control, 10.4" high resolution color CRT, RS-232 port & interface, manual pulse generator, inch & metric operation, feed rate & spindle speed override, helical interpolation, full cutter compensation, background edit features, EIO/ISO recognition.

• Complete with: Centralized lubrication system for all spindle bearings, roller bearings, ball screws & guides; No vacuum pump: approximatly 18,000 hours.
