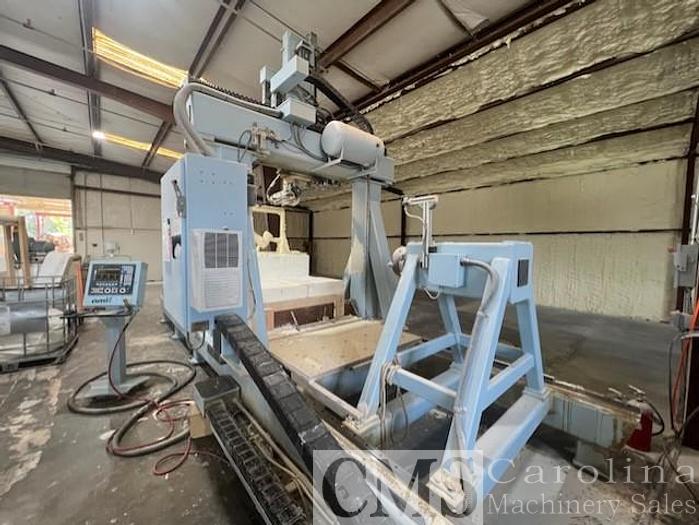

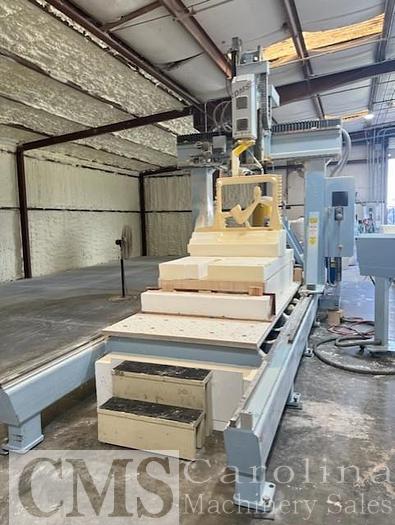

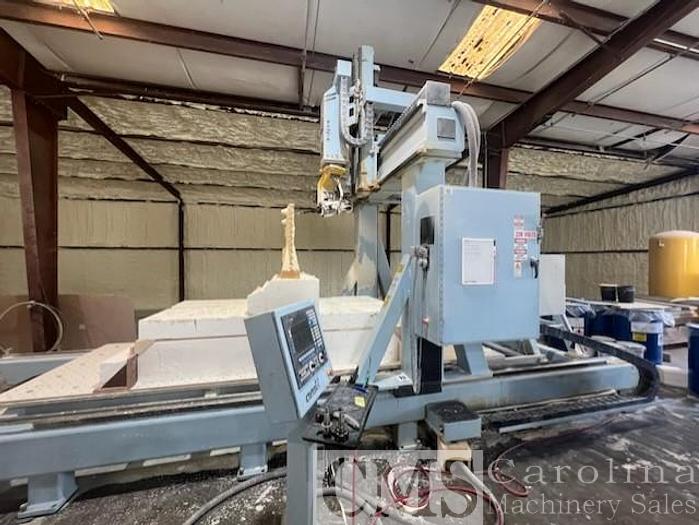

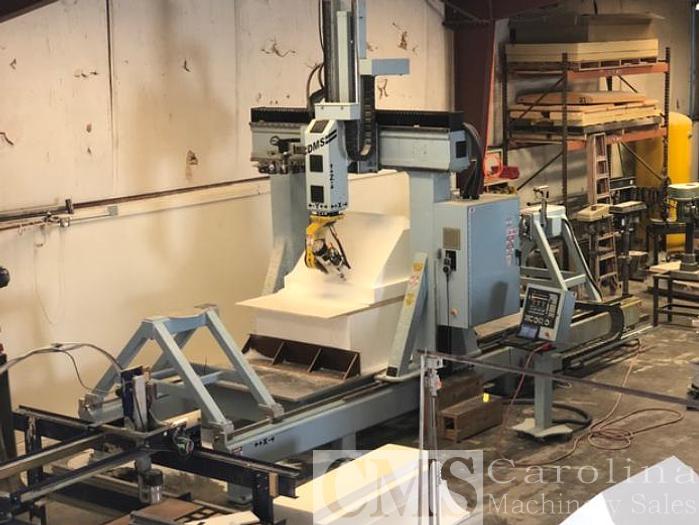

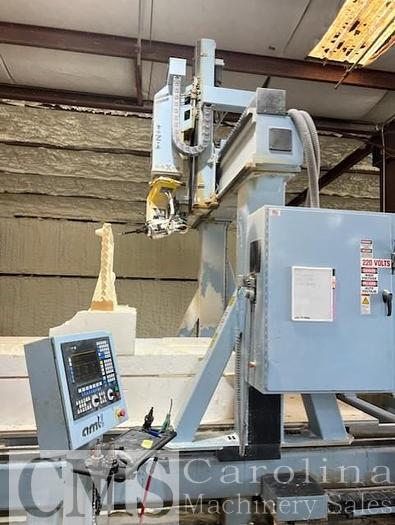

2008 DMS 5-Axis CNC Router

DMS 5-Axis CNC Router

Manufacturer specs (to be confirmed):

Specifications:

• 5' x 12' Stationary Table, 3/8" threaded inserts on 12" centers

• Heavy Duty Lathe 6th Axis, removable

• 72" Vertical Bridge Clearance

• 48" Z Stroke

• 11HP HSD ATC Spindle, ISO 30, 20,000 Max RPM

• 8 Position Tool Carousel

• Fagor 8055M Controller

•Auto Tool Height Sensor

• 230V/3PH Electrical Requirements

• 60Amps/60Hz

• 90PSI, 5CFM Air Requirement

• Z axis utilizes 32mm servo driven lead screw mounted with angular bearings

• 35mm profiled ways on all linear axis

• B Axis uses cycloidal 210:1 gearhead

• C Axis uses cycloidal 109:1 gearhead

Speeds:

• X-Axis - 1200 in./min.

• Y Axis - 1200 in./min.

• Z Axis - 600 in./min.

• C Axis - 125 degrees/second

• B Axis - 125 degrees/second
