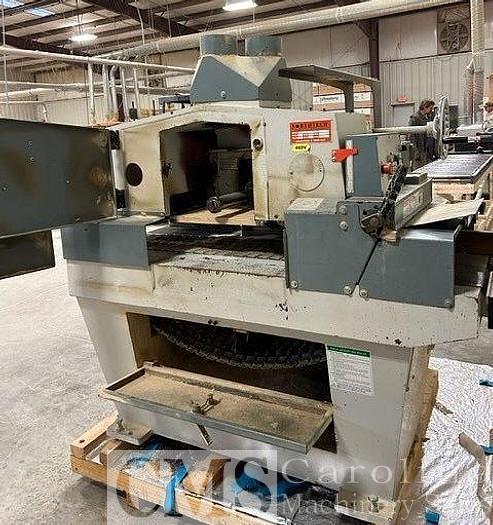

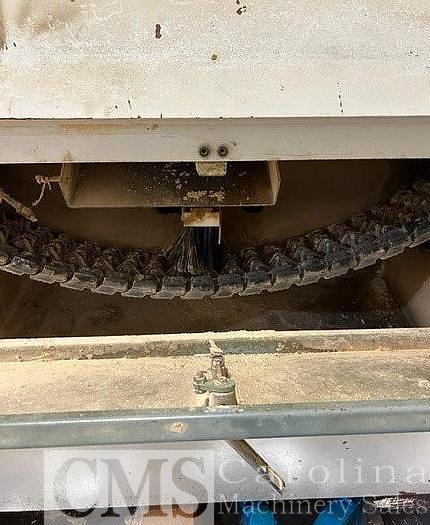

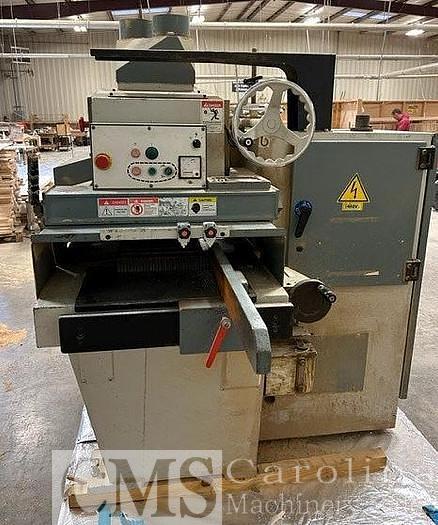

Northtech MRS-14N Dip Chain Gang Rip Saw

Location

Southeast USA

Sold

Specifications

ManufacturerNorthtech
ModelMRS-14N Dip Chain Gang Rip Saw
Stock Number010281

Description

Standard Specifications, (to be verified):

- 27-1/8" max. working width

- 16" min. working length

- 5/16" min. & 4-1/2" max. working thickness

- 43 HP, 230/460/60 saw arbor motor, (3,570 RPM arbor)

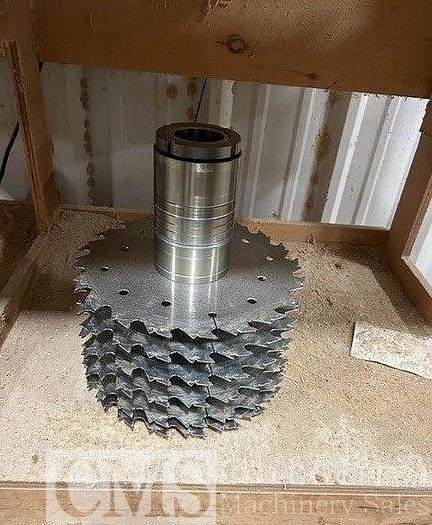

- 14″ diameter rip saw blades, (can run 12" diameter blades)

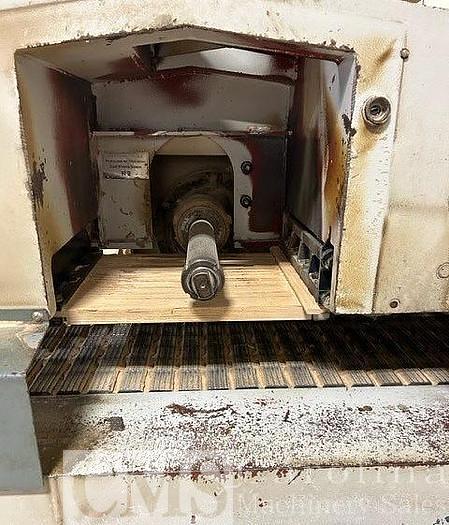

- 70 mm diameter saw arbor

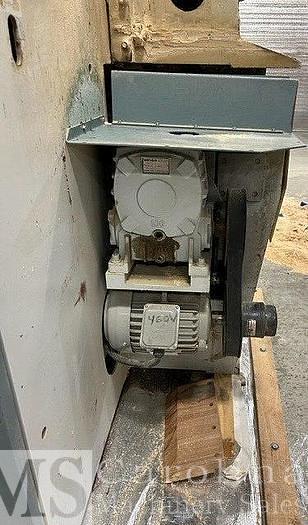

- 3 HP, 230/460/3 feed motor, (30 to 120 ft/min.) feed speed range

- 33-1/2" working pass-line height

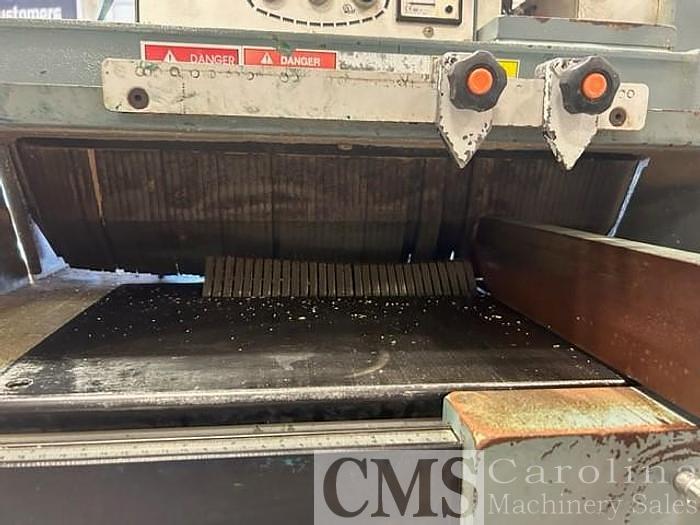

- Safety Anti-kickback fingers

- (2) 6" diameter dust-outlets

- 67" x 58" x 71" approx. overall dimensions

- Weighs approximately 4,500 lbs.
