2021 AXYZ Panel Builder 5018 CNC Router

Location

South, USA

Sold

Specifications

ManufacturerAXYZ
ModelPanel Builder 5018 CNC Router
Year2021
Stock Number010221

Description

AXYZ Panel Builder CNC Router 5018

  • Designed Specifically for: Aluminum Composite, Metal Composite, High Pressure Laminate (HPL) and Fiber Cement Board.
  • 6' W x 18' L Table Size
  • Steel Gantry
  • (3) Spindles - 10.8HP HSD Spindle, (2) 10HP ELTE Spindles
  • ATC Ready
  • 5xHSD ER32 Tool-holder
  • Premium Drive Package with 6 Drives, Long Series, Auto Zone MgmtLive
  • Precision Spoil Board
  • 3xPop-up Pins
  • A2MC Control System
  • 8.5HP Dust Extraction System
  • ACM Chip Extraction

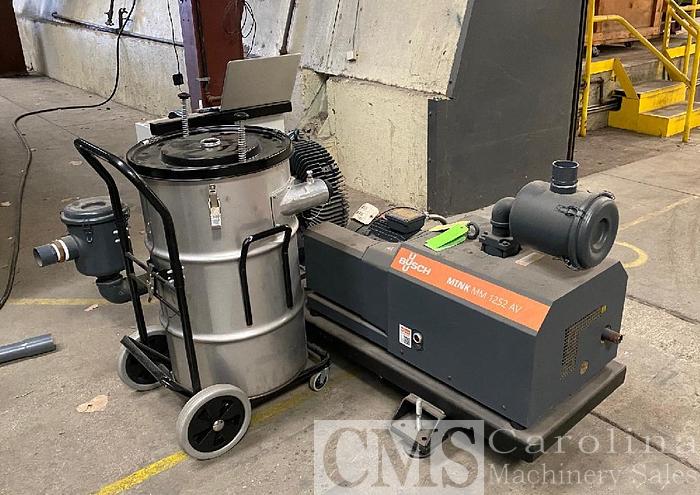

  • Busch MINK MM1252 AV 9HP Vacuum Pump
  • Smart Console w/ E-Stop
  • 3x Pressure Foot High Capacity w/ Nose Rider
  • Features: High-speed ACM processing, Multiple tool configurations, Tooling: SER-I-ACM-3. Dedicated CAD/CAM software - AXYZ Panelbuilder Software.
  • Primary Applications: Aluminum & Metal Composite Cladding.
  • 220V/3-Phase/9.5KW/30A.
  • Ready to ship.
