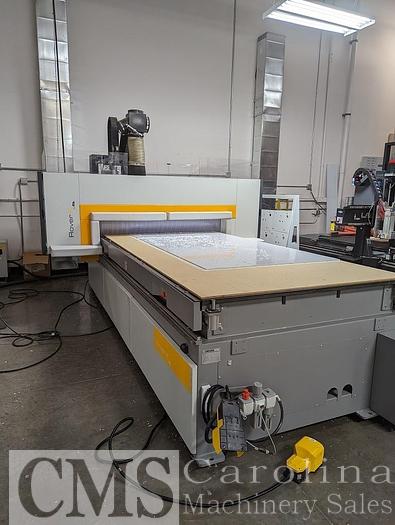

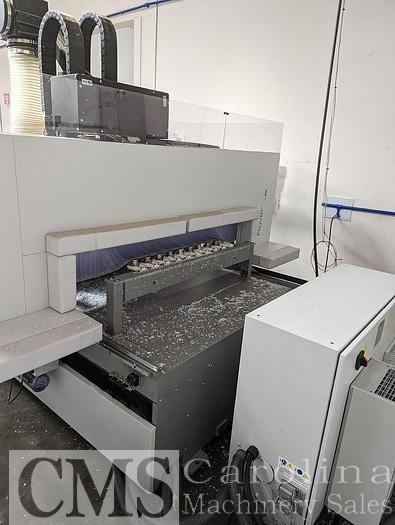

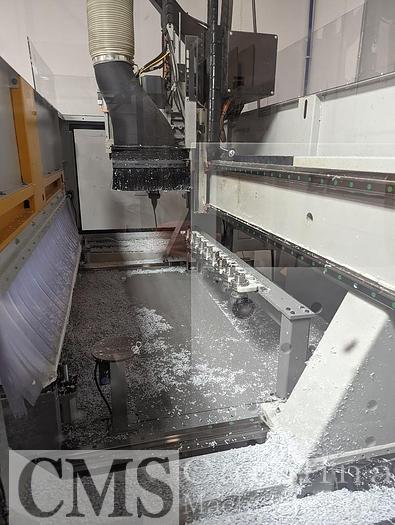

2019 Biesse Rover K 1531 CNC Router

Location

Southwest USA

Sold

Specifications

ManufacturerBiesse
ModelRover K 1531 CNC Router
Year2019
Stock Number010130

Description

Biesse Rover K 1531

5x10 Table

Technical specifications:

Maximum axes speed X - Y - Z 25 - 25 - 25 m/min

Z axis stroke 320 mm

Z axis piece passage 170 mm

Z axis piece passage with Sweeper Arm 170 mm

* The technical data shall be verified on detailed layout according to the operating units chosen on the machine

Numerically controlled machining center ROVER K FT 1531

FT worktable dimension: X=3100 mm; Y=1560 mm

50 m3/h rotary vanes vacuum pump

Oil-free working

Flow rate: 250 m3/h at 50 Hz and 300 m3/h at 60 Hz
