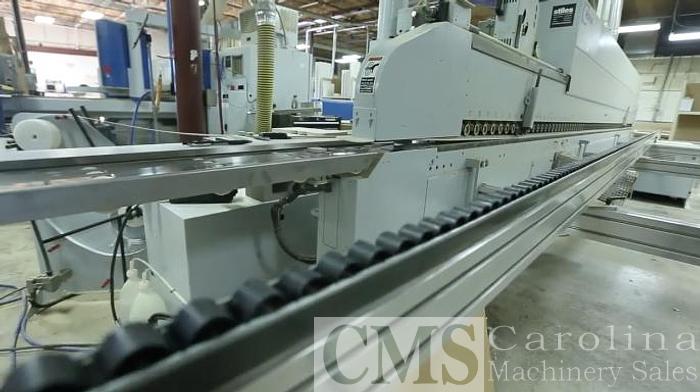

2014 Homag Ambition 2274 Edgebander

This unit was serviced by Stile and is currently in storage.

Manufacturer specs:

The Ambition 2274 is ideally suited for application of all PVC and high-gloss coiled material 3 mm or less in thickness, laminate strips and lumber strips <3/4”. Versatility, performance and capability are the strengths of the 2264.

2-motor corner rounding, with exchangeable aggregates at the touch of a button, enables you to run a variety of profiles allowing you to adapt to the ever changing demands for edge material.

Key Features Include:

- A heavy-duty feed chain on precision hardened guides with 80 mm wide pads provides best in class service life

- Top pressure for the work piece is achieved by a non-marking double-wide compound V-belt for maximum hold down, longest service life and minimum maintenance

airTec AT20 (20 meters/min) and full EVA system for the ultimate in performance, quality and flexibility.

- 22” Homag Group powerTouch touch-screen control, featuring modern graphical based icons, intelligent use of gestures including swipe, pinch to zoom and touch to scroll. This will be the standard on all PC controlled machines. Windows 7 operating system

- Electronic height adjustment for quick and accurate panel changes via touch screen control

- Class leading feed speed of 82 feet per minute for all work units and 59 feet per minute when corner rounding is activated

- Automatic changeover between chamfer trimming and single radius trimming via program control

- UL Certified components throughout

- Remote control unit for one (1) person setups or inspection of the machine

- Separating agent spray, premilling and glue joint scraping for touch-free parts and no hand cleaning

- Simple, efficient, gravity-fed and serviceable gluing unit with sealed bearings allowing for extended service life and minimal maintenance unlike complex “pump style” glue pots

- Servo-controlled edge feeding allowing for accurate positioning of leading/trailing edge of band resulting in 88% edgeband savings over conventional systems

- Automatic 2-coil magazine with channel selection via control and quick change floor mounted 2-coil holder

- HSK-25 taper tool interface and ultra efficient I-tooling reduce dust and power requirements, increase cut quality and extend service life

- High-speed snipping unit with side copy and drawing cut for precise, chip free trimming of edgeband material

- Powerful 1.5 kW rough trim motors with carbide I-tools and HSK interface flush the overhang to the panel surface

-Lubrication spray for high-gloss surfaces to prevent marking or removal of the peel coat during processing.

- FK-11 corner rounding unit with diamond I-tools and HSK interface provides radius or chamfer fine trimming and corner rounding functions with exacting precision (two sets of change heads, radius 1mm and radius 3 mm)

- Servo scraping unit with Duo-scraper for high gloss material. Duo-scraper is a combination of knife and fine sanding media to bring back the luster in high-gloss materials. Total of 5 scraping profiles available, 2 for high gloss and 3 for standard edge materials

- Flat knife glue joint scraping with triple bearing copy system to insure no glue residue remains on non–porous panel surface eliminates need for hand cleaning when using generous amounts of adhesive

-Cleaning agent spray prior to buff to remove release agent or any remaining reside

- Buffing unit to restore luster and minimize sharp edges on softer material

- Best in class parts, service and technical support allowing
