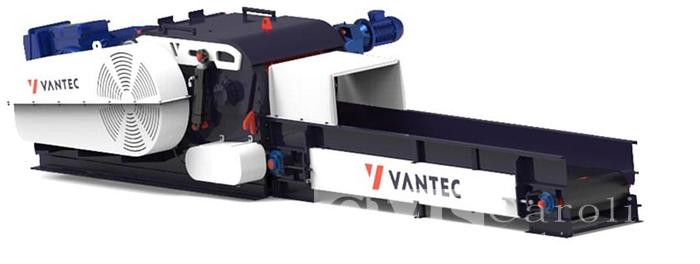

Vantec PT600/R8 Horizontal Drum Chipper

This Wood Drum chipper PT600 is used in production of wood chips from logs and veneer waste. It has a toothed roller system that allows efficient material infeed, a rubberized conveyor belt and a Hydropneumatic unit to lift the rotor cover for maintenance. It comes with 01 chipper Knife set and 01 nose bar set. It does not come with the output conveyor.

• Width of inlet: 600 mm;
• Height: 300 mm;
• Rotor diameter: 800 mm;
• Toothed roller: 01 upper and 01 lower;
• Grooved rollers: 01;
• Rollers gear motor: GD (helical gears);
• Metal detector: Flat model;
• Rollers motor size: 5 hp (2x);
• Number of rotor knives: 02;
• Wood chip size: 25 - 40 mm;
• Main motor 125 hp 4P: Included;
• Drive panel: Included;
• Lead Time: 240 Days;
• Estimated production: 55 m3 / h (it may vary according to the type of material and time used with blade sharpening);
• Infeed conveyor length: 3 500 mm (included);
• Width: 1 850 mm;
• Height: 1 .150 mm;
• Overall length: 6 700 mm;
• Approximate weight: 4,900 kg.
