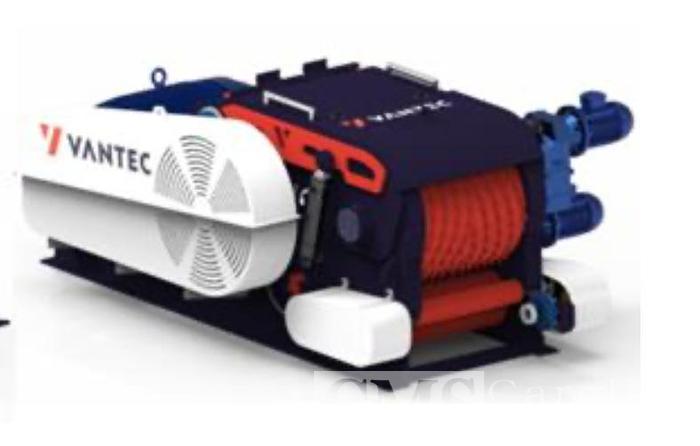

Vantec PT600 Horizontal Drum Chipper

Location

Southeast USA

or
Call 704-288-1904

Specifications

ManufacturerVantec
ModelPT600 Horizontal Drum Chipper
Stock Number009895

Description

The Vantec Wood Wast Drum Chipper is used to produce chips from logs and veneer waste. It has a roller infeed system, rubber conveyor belt and hydro-pneumatic unit to lift the rotor for maintenance.


Manufacturer specs:

  • Width of inlet: 600 mm;
  • Height: 200 mm;
  • Rotor diameter: 600 mm;
  • Toothed roller: 01 upper and 02
  • lower;
  • Grooved rollers: 01;
  • Rollers gear motor: GD (helical
  • gears);
  • Upper Rollers motor size: 5 hp;
  • Upper Rollers motor size: 5 hp;
  • Feed speed: 40m/min;
  • Number of rotor knives: 02;
  • Wood chip size: 30 - 40 mm;
  • Chipper screen: size: 65 x 65mm
  • Main motor 100 hp 4P: Included; Drive panel: Included;
  • Estimated production: 38 m3 / h (it may vary according to the type of material and time used with blade sharpening);
  • Infeed conveyor length: 3 500 mm (included);
  • Width: 1 650 mm;
  • Height: 1 .000 mm;
  • Overall length: 5800 mm; Approximate weight: 2,900 kg.
