2016 Holzma HPP200 Panel Saw

Location

South, USA

Sold

Specifications

ManufacturerHolzma
ModelHPP200 Panel Saw
Year2016
Stock Number009892

Description

This machine will be available around December 1, 2022.


  • Model No HPP 250
  • Year of manufacture 2016
  • Cutting length 3800 mm
  • Pusher stroke 3700 mm
  • Saw blade projection 80 mm
  • Saw Diameter 350 mm
  • Main Motor 9.2 kW
  • Scoring Unit yes D=200mm
  • Scoring Motor 1.1 kW
  • Single sided side-aligner
  • Number of grippers
  • Continuously variable feed

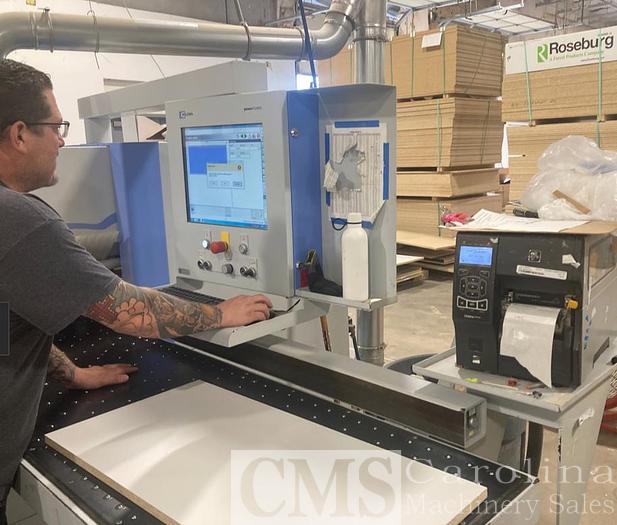

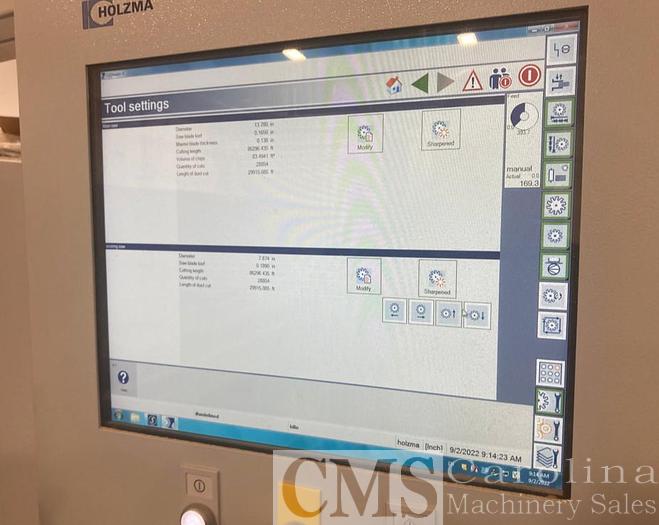

  • Graphical cutting pattern
  • Air pressure required 6 bar
  • Total air requirements 150 NL/min
  • V min. velocity at ducts approx. 25 m/s
  • Negative pressure min. 1200 Pa

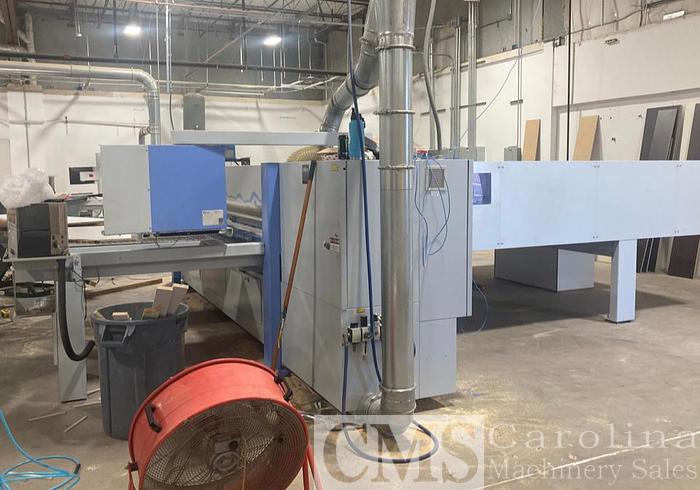

  • Suction capacity 3800 m?/h

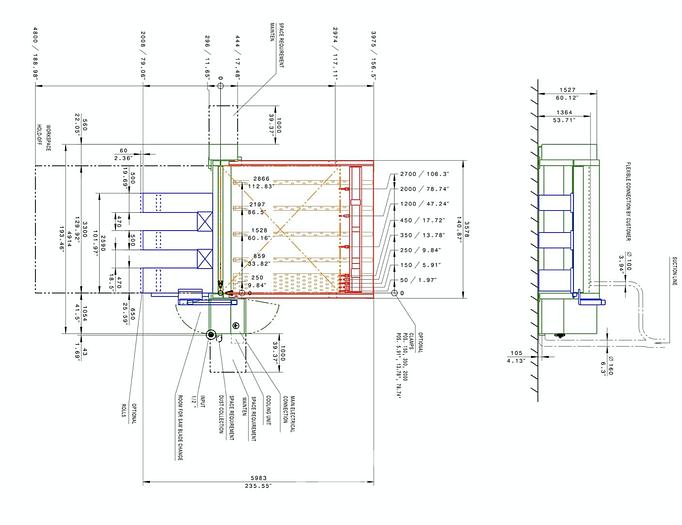

  • Duct for channel connection 1 pce 160 mm
  • Duct for pressure beam connection 1 pce 140 mm
