2012 Delle Vedove SLC 15 4-Gun Lineal Sprayer

Location

Southeast USA

Sold

Specifications

ManufacturerDelle Vedove
ModelSLC 15 4-Gun Lineal Sprayer
Year2012
Stock Number009836

Description

Delle Vedove SLC15 Sprayer

4-Gun Sprayer

8" Width capacity


Manufacture specs (to be confirmed):

Machine base structure made of modular fabricated steel

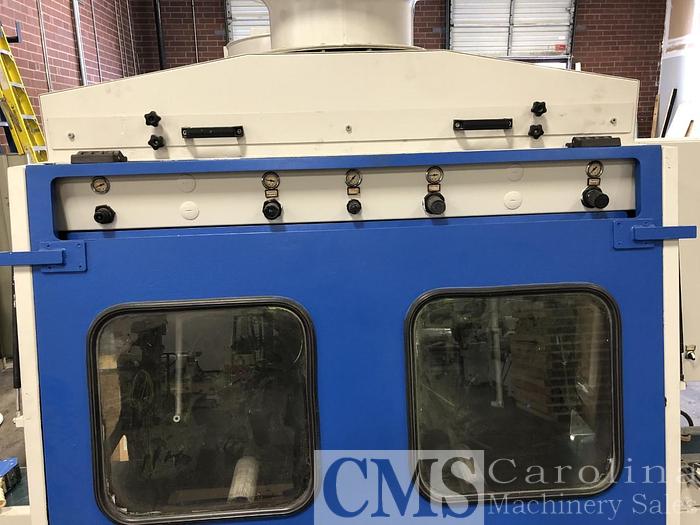

Enclosed spray booth with frontal access door

Over-spray drip pan below spray basin with two (2) frontal over-spray recovery openings

Feed operated by solvent resistant rubber belts and two (2) central rollers

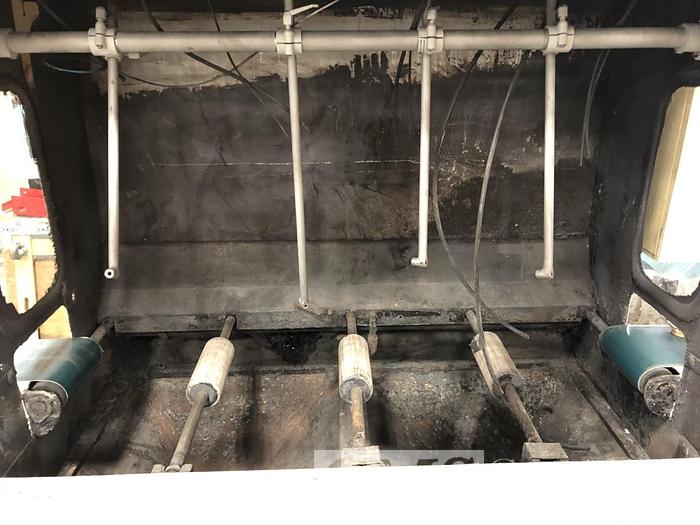

Piping and controls for 4 pneumatic spray guns .

Computer controlled timing system for spray guns with fiber optic sensor

Easily accessible exhaust and filter compartment for easy maintenance and cleaning.

Complete with 0.75hp ventilator for fume filtering and exhaust.

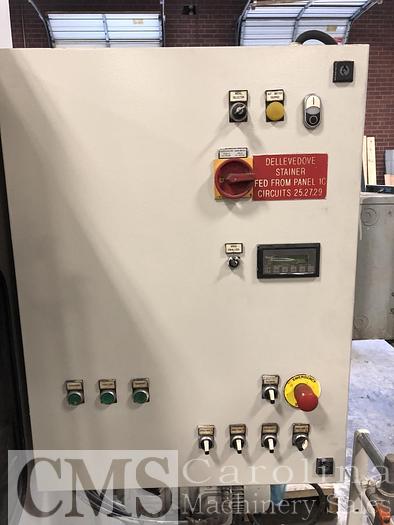

Pneumatic and Electrical controls on front panels.



Technical Specifications:

                        Exhaust:           2750 cu. ft. per minute

                        Air pressure:    adjustable from 2 to 40psi

                        Feed Drive:      mechanically variable from 60 to 300 FPM

                        Electric:            460V / 3Ph / 60Hz, 3kW. Machines made to UL/CSA Standards.



Overall Spray Booth Dimensions

                        Length: 10.3 feet

                        Width:  5.6 feet

                        Height: 8.1 feet

                        In-feed height:  34" (adjust. +/- 1")



Useful Work Dimensions

                        Min. Length:    36 inches

                        Width:              0.2 to 8 inches

                        Thickness:       0.125 to 2.75 inches
