Description

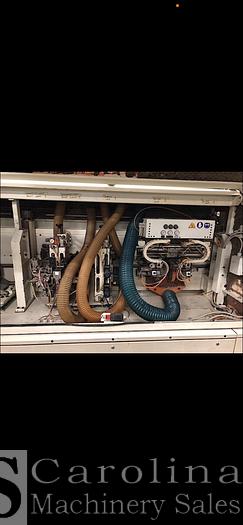

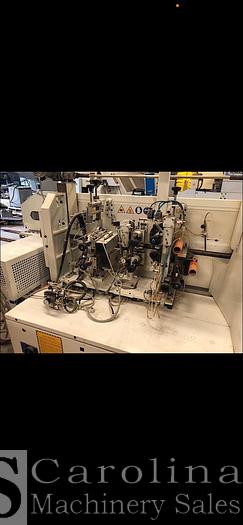

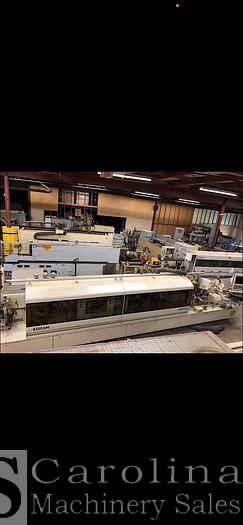

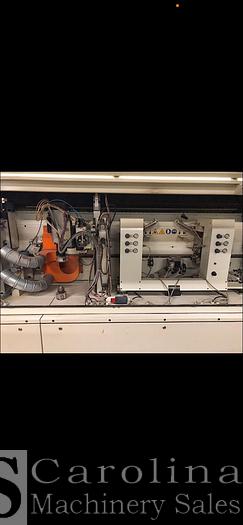

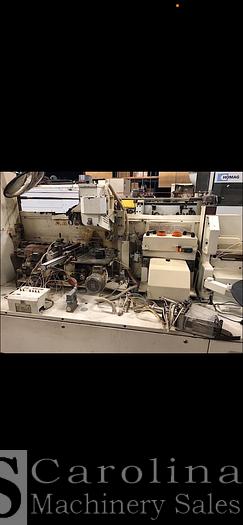

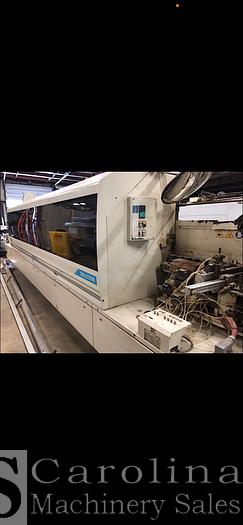

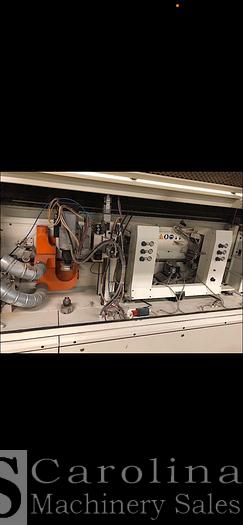

STEFANI SOLUTION 8600 CNC EDGEBANDER
CNC HORIZONTAL & VERTICAL POSITIONING,
STANDARD STATIONS,
PRE-MILL,
ROUGH & FINE TRIM STATIONS,
CORNER ROUNDING,
MX80 HSK MILLING UNIT,
RAS/S & RCA/2C SCRAPING UNIT,
SP/F TOP & BOTTOM BUFFING
EDGEBANDING THICKNESS: 0.4MM – 22MM
PVC & ABS IN COIL OR STRIPS
HPL STRIPS
SOLID WOOD UP TO 22MM
PANEL HEIGHT: 10 - 60MM (3/8” MIN – 2 3/8” MAX)
MINIMUM PANEL LENGTH: 140MM (5 1/2”)
MINIMUM PANEL DIMENSIONS: WITH MANUAL IN-FEED
LENGTH WISE : WIDTH X LENGTH90 X 220 MM (3 1/2" X 8 3/4")
CROSS WISE : WIDTH X LENGTH 220 X 135 MM (8 34" X 5 3/8")
FEED SPEED: 12 - 25 M/MIN (40 - 82 FT/MIN)
MINIMUM DISTANCE BETWEEN PANELS: 650MM (25 1/2”) (32” WITH CORNER ROUNDING)
MACHINE WORKING HEIGHT: 950MM – 970MM (37.4” – 38.2”)
