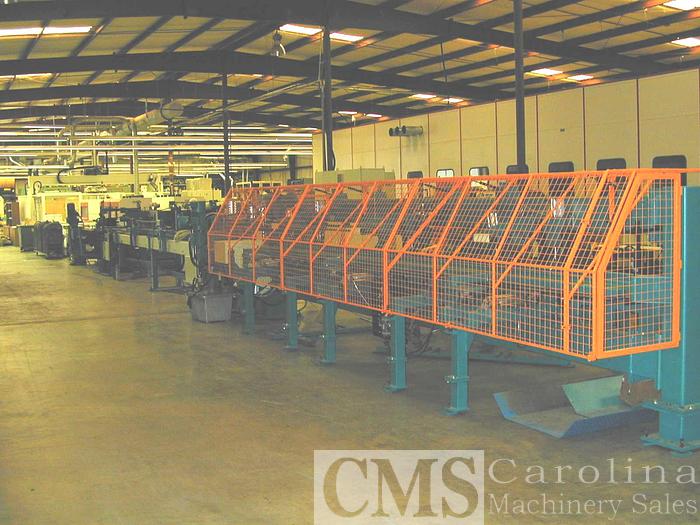

1988 Torweege HK 604 Finger Jointing Line

Location

Southeast USA

Sold

Specifications

ManufacturerTorweege
ModelHK 604 Finger Jointing Line
Year1988
Stock Number010452

Description

    Secondhand TORWEGGE Finger Jointing Line, Model HK 604

                   For soft and hardwood

                   Material dimensions before finger jointing:



                   Lengths:                           200 - 1,080 mm / 7 7/8" - 42 1/2"

                   Widths:                               40 - 120 mm    / 1 1/2" - 4 11/16")

                   Thicknesses:                     15 - 60 mm      / 9/16” - 2 3/8")

                   Capacity:                          Infeed can accept up to 80 pieces/min.,

                                                            but the actual figure that can be achieved

                                                            depends on length of strips and preparation

                                                            and organization of infeed.



                                                            Up to 30 meters of finger-jointed strips/

                                                            min. can be achieved. Again, actual figure

                                                            depends on length of strips cut.



                   Line Components:



                   Item 1.1:

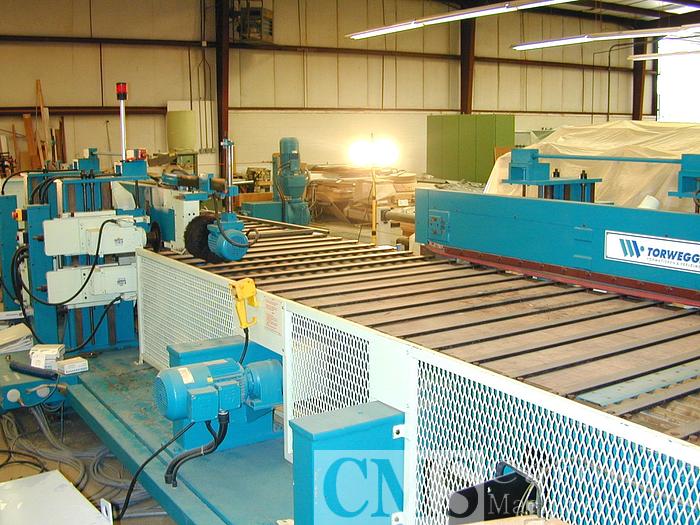

            1 x  Double-Sided Finger Cutting Machine HZ 604

                   - cutting and profiling of random length material

                   - flat guides to accept right and lefthand machine part

                   - heavy, torsion free machine frame to accept motor columns

                   - non-driven special top tracks for solid wood

                   - spring-loaded hold-down shoes at top tracks

                   - chain tracks with automatic lubrication for transport chain and chain pads

                   - rail-type chain dogs over the entire working width

                   - Three (3) driven roller conveyors for transportation of workpieces

                     from chain track to chain track and out of the machine

                   - Mechanical feed gear, steplessly adjustable

                   - Pneumatic and electrical basic installation





            Three (3) Roller Tables:         Drive motor 1.1 kw (1.5 hp)

                                                            Transport speed 13 - 92 m/min. (42 - 301 ft/min.)



            Top tracks:                              Maintenance-free top tracks for solid wood

                                                            with special holddown belts, running on roller

                                                            chain. Height adjustment with digital read-out.

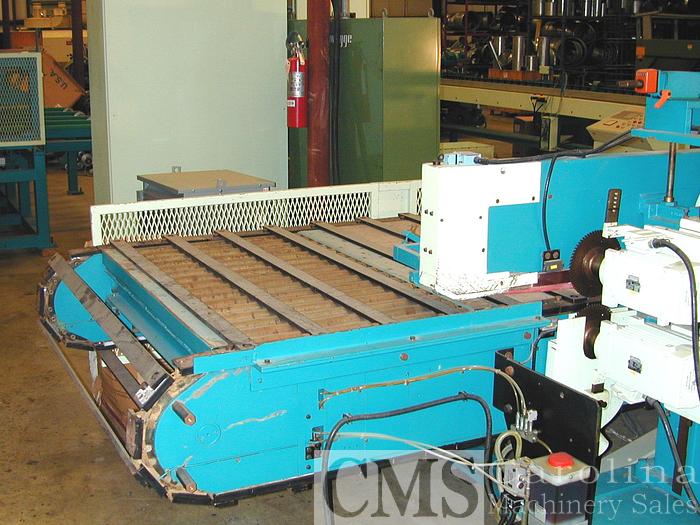

            Chain tracks and chain pad:   Chain tracks equipped with replaceable

                                                            special guide ways.  High-precison chain pads

                                                            80 mm (3 1/8") wide with steel insert, surfaces

                                                            with PU-cover, slide surfaces with PE-cover.

                                                            Chain with needle bearings.  Chain bolts can

                                                            be lubricated.  Every third pair of chain pads with

                                                            steel surface and rail-type chain dogs over the

                                                            entire working width.



            Chain dogs:                            Distance between chain dogs 305 mm (12 ")

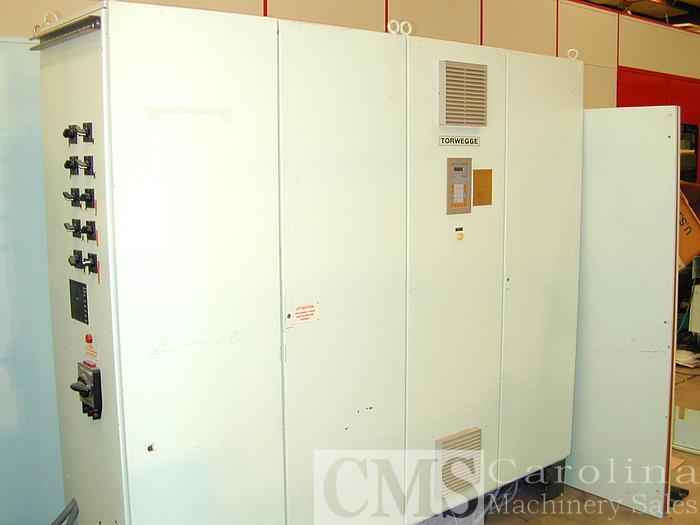

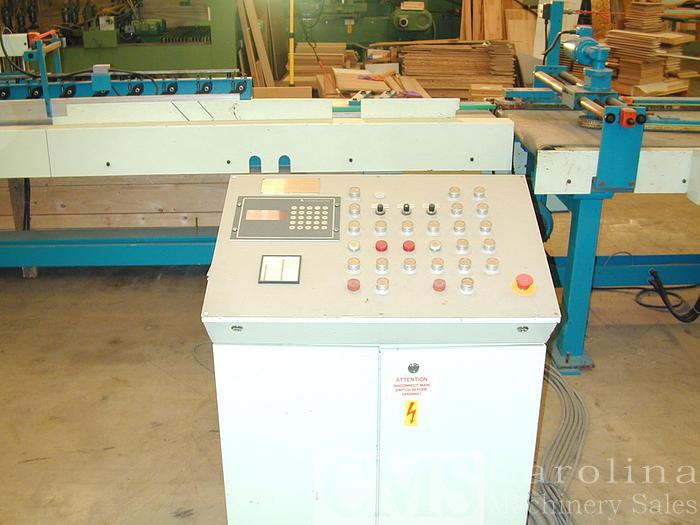

            Electrics:                                 With automatic starting program. Signal lamps

                                                            at the control panel indicate the pre-selected

                                                            motors. After the motors have started, the flashing

                                                            light turns to continuous light. If a motor protection

                                                            relay fails, this is indicated by red lamps on the

                                                            control panel. SPS-Control.



            Feed speed:                            6 - 28 m/min. (20 - 92 ft/min)

                                                            steplessly adjustable, motor 4 kw (5.4 hp)



            Max. height of throughfeed:   60 mm (2 3/8")



            Max. overhang outside

            chain tracks:                           20 - 50 mm (1/16 - 1 7/8")

                                                            (depending on profile and depth of fingers)

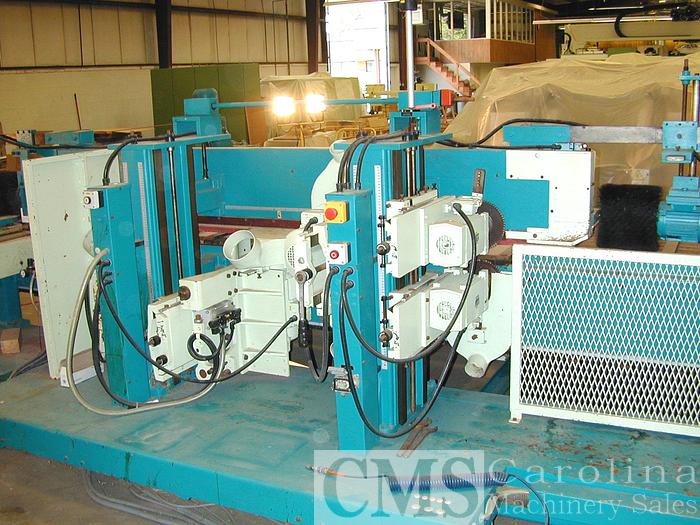

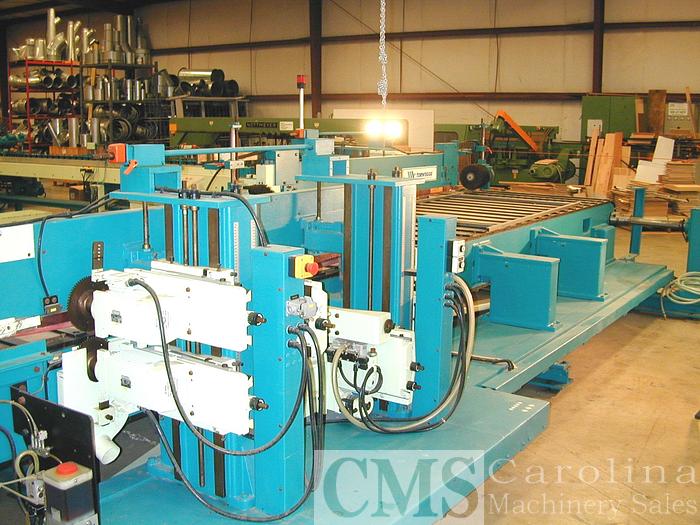

            MOTOR STATIONS



            LEFTHAND SIDE = GROOVE / RIGHTHAND SIDE = TONGUE



            1     Top scoring saw 21.16 SO

                   horizontal and vertical adjustment.

                   Fixed stop for cutting position.

                   Without tools

                   Motor 2.0 kw (2.7 hp), 90 cycles, 5,400 rpm,

                   shaft dia. 30 mm (1 3/16")

                   tool acceptance dia. 40 mm (1 9/16")

                   with saw flange

                   with motor brake



            1/1  Bottom scoring saw 20.17/21.17 SO

                   horizontal and vertical adjustment.

                   Fixed stop for cutting position.

                   Without tools

                   Motor 2.0 kw (2.7 hp), 90 cycles, 5,400 rpm,

                   shaft dia. 30 mm (1 3/16")

                   tool acceptance dia. 40 mm (1 9/16")

                   with saw flange

                   with motor brake



            1/1  Cut-off motor 10.31/11.31 SO

                   horizontal and vertical adjustment.

                   Fixed stop for cutting position.

                   Without tools

                   Motor 5.2 kw (7.0 hp), 90 cycles, 5,400 rpm,

                   motor shaft dia. 35 mm (1 3/8"),

                   with motor brakes



            1/1  Finger cutting motor I, 30.56/31.56,

                   for clockwise and anti-clockwise rotation,

                   with pneumatic jump attachment,

                   horizontal and vertical adjustment.

                   Without tools

                   Motor 6.3 kw (8.5 hp), 90 cycles, 5,400 rpm

                   motor shaft dia. 35 mm (1 3/8"),

                   with motor brakes



            1/1  Finger cutting motor II, 10.31/11.31 SO

                   horizontal and vertical adjustment,

                   Without tools

                   Motor 6.3 kw (8.5 hp), 90 cycles, 5,400 rpm,

                   motor shaft dia. 35 mm (1 3/8"),

                   with motor brakes



            1 x  Frequency transformer 60 kva, IP 54



            1 x  Glue application at lefthand machine side,

                   consisting of:

                   - glue pump

                   - glue pressure regulator

                   - glue application with horizontal and vertical adjustment

                   - glue nozzle pneumatically controlled, with replaceable

                     application shoe for one profile and material thickness

                   - glue nozzles for other profiles and thicknesses are optional



                   Item 1.2:



                   Angular Outfeed Conveyor HZ 21

                   - transporting to lefthand direction

                   - stepless adjustable drive, motor 1.1 kw (1.5 hp)

                   - feed speed V = 25 - 75 m/min. (82 - 246 ft/min.)

                   - alignment rail

                   - electrical basic installation



                   Item 1.3:



                   Accumulation Section HZ 51

                   - adjustment gear motor 1.1 kw (1.5 hp)

                   - feed speed V = 31 - 94 m/min. (101 - 308 ft/min.)

                   - alignment rail

                   - 6 spring loaded pressure rollers from top, height adjustable

                   - length of accumulation section 4,000 mm (157 7/16")



                   Item 1.4:



                   Pre-Pressing Station HZ 31

                   - steplessly adjustable electric drive

                   - feed speed 60 - 75 m/min. (197 - 246 ft/min.)

                   - electrically driven infeed and pre-pressing rollers

                   - stepless adjustment of the infeed and pre-pressing

                     rollers, according to thickness and width of workpieces

                   - pneumatically adjustable pressure shoe

                   - length:   1,580 mm (62 5/16")


                   Item 1.5:



                   Final Pressing Station with Cut-Off Saw HZ 41

                   - speed regulation by pre-pressing station

                   - cut-off saw with stepless adjustable cut-to-length device and outpusher

                   - electronic length measuring device

                   - final pressing process lengthwise: hydraulically,

                     cross and top: pneumatically

                   - outfeed device pneumatically controlled,

                     speed 13 m/min. (42 ft/min.), step-by-step movement



                   Cut-off saw:                     2.2 kw (2.9 hp), 50 cycles

                   Saw blade:                       dia. 350 mm (13 3/4), bore dia. 35 (1 3/8")



                   Length of workpiece:       min. 1,000 mm (39 3/8")

                   (cut-to-length)                  max. 7,000 mm (275 9/16")



                   Item 1.6



                   Storage Conveyor HZ 51

                   - behind final pressing station allowing some setting time for

                     the glue-connection of the finger-jointed strips

                   - drive by 1.1 kw (1.5 hp) motor, feed speed 9 m/min. (29 ft/min.)

                   - outfeed movement step-by-step, controlled by the final pressing station

                   - length 7,000 mm (275 9/16")
