Jackson Complete Shaving Mill with Dryer

Location

South, USA

Sold

Specifications

ManufacturerJackson
ModelComplete Shaving Mill with Dryer
Stock Number009439

Description

This complete operation is ready to be removed from the current location. Pricing includes, dismantling, rigging and loading into trucks.

Shavings Manufacturing Equipment:

o 2012 Jackson Lumber Harvester Shaving Machine — Model 36D-10HLC

o Two 33"' heads, 8 knives each (16 knife machine), 10" diameter

o 8'6" box capacity

o 100 HP electric motor

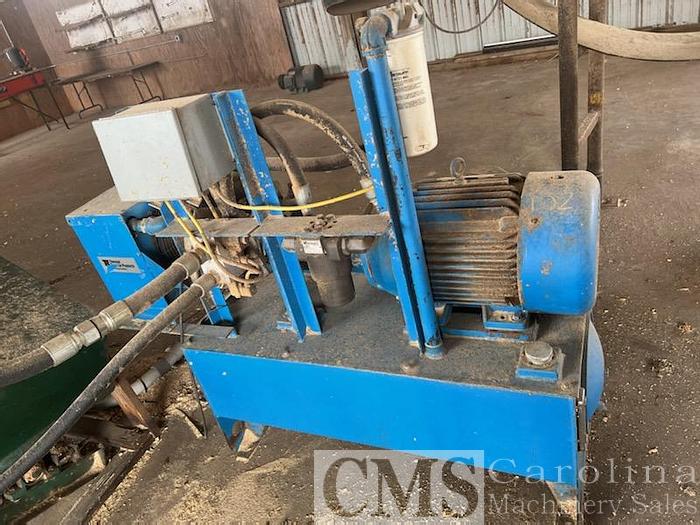

o 25 HP hydraulic power pack

o 24'4" overall track length

o Includes built-in cleated discharge belt

  20' two strand infeed log deck with WRC-78 chain with rollers, gear motor reduction drive, H-frame construction with 8' steel supports with foot control stop & load

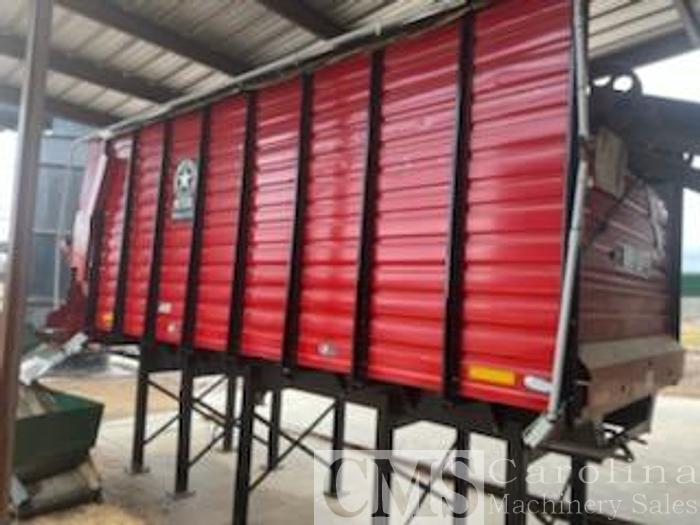

  20' x 24" concave belt conveyor transfer to metering bin, incline with steel supports, electric drive with shaft mount gear reduction drive & 2 HP electric motor o Meyer Model 4516 metering surge bin (forage box)

o 16' x 6' x 6' mounted on steel supports and discharge chute with cross supports, top feed, bottom discharge

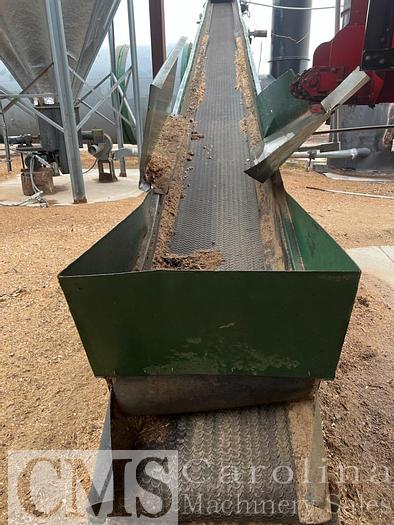

o 5 HP gear motor on unloader o 25.5' Jackson Harvester belt conveyor, 24" wide cleated belt, shaft mount gear motor, includes steel enclosed belt return and catch plate at shavings

 Rechipper with wooden hopper feed and 12' concave discharge belt and sizing screen o Receiving area includes cover plate section at discharge area to air lock, 3 HP gear drive motor  Shavings Drying and Burner System:

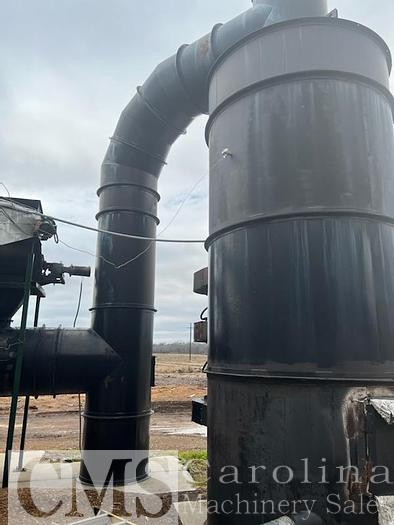

o 12MM BTU/hr Solid Fuel Web Burner for Drum Dryer — Model WED-120-08

o Rated output— 12 million BTU/hr

o Burner Body diameter, at flanges — 7' 5"

o Burner Body diameter, at sidewall — 7' 1"

o Burner Body height overall — 16'8"

o Burner Body total weight (mass) approximate — 24,000 lbs

o Ductwork diameter, at flanges — 3'6"

o Ductwork diameter, at sidewall — 3'2"

o With auto material feed and direct heat discharge to rotary dryer

o 3 fan air flow and burn units 3.5 HP each

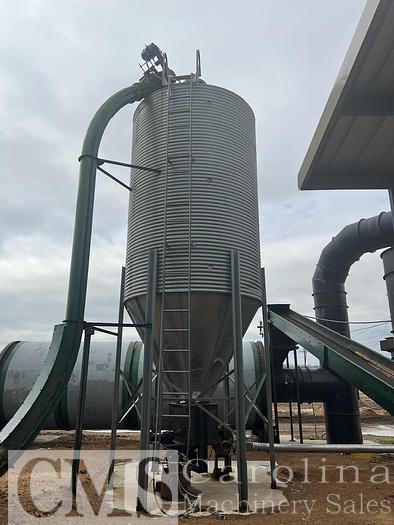

o Solid fuel storage silo receives wood waste fines from sizing screen (gravity discharge to lock #1)  11' high pressure transfer collector to silo

o Electric star feed air lock system to discharge pipe to solid fuel burner o 8' x 30' Dryer

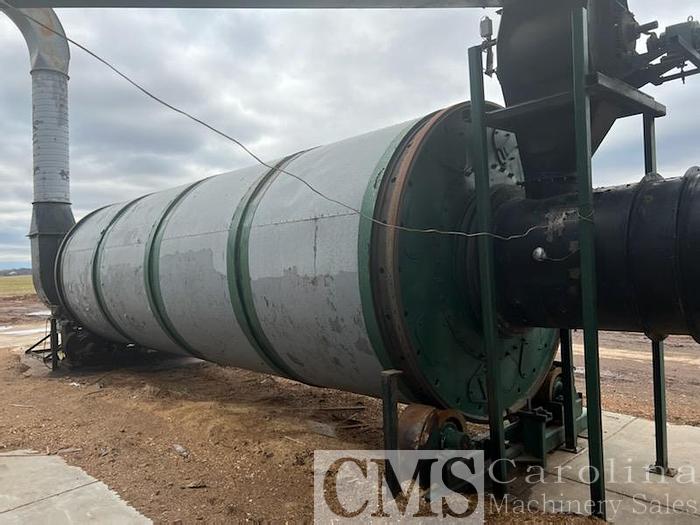

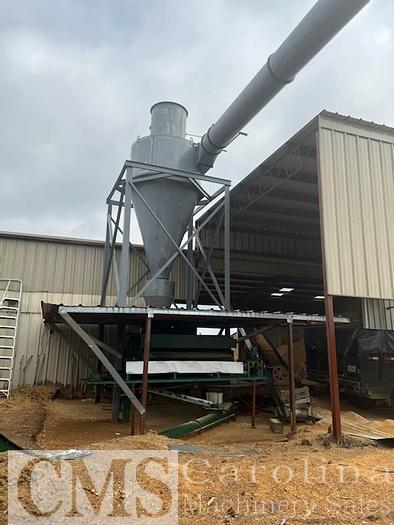

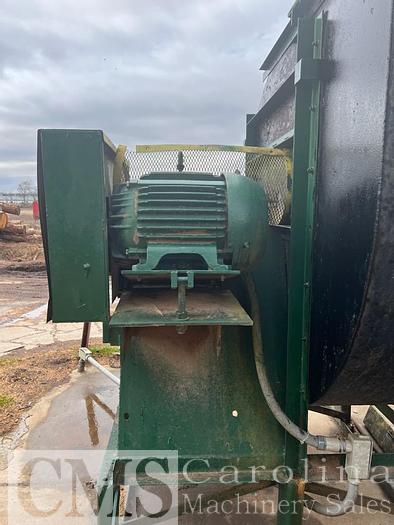

o 19.5' three stage rotary dryer with air pull through for heat and shavings transfer, infeed air lock system with material clog protection sensors with 3 HP gear motor, 50 HP collector fan with top discharge section with 30' discharge pipe to 6' x 12' cyclone collector above chip screen  Shavings Sizing Stacking:

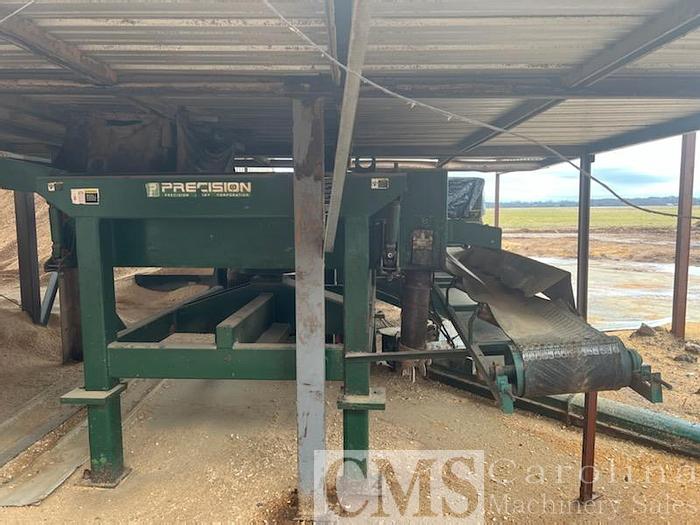

o Precision 7' x 7' material sizing screen with 5 HP drive with discharge for oversize material with discharge 10' concave belt conveyor with cleated belting & 3 HP drive with fines removal section to solid fuel storage silo

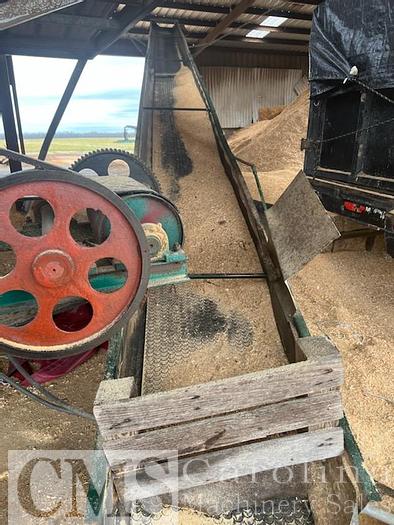

0 40' Jackson Harvester belt stacking conveyor

  24" wide cleated belt

  Shaft mounted gear motor which includes steel supports and steel enclosed belt return  Miscellaneous Items:

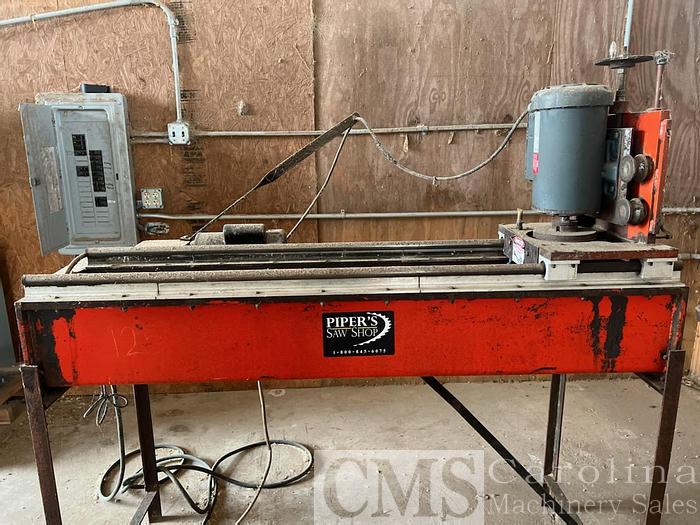

  Piper saw shop 36" knife sharpener o Extra shaker machine o Prentice 2 IOD knuckleboom log loader, BT6 Cummins engine, dual hydraulic hook up for buck saw o Gravity feed fuel bin
